Safety Shield w/ Steel Frame & Polycarbonate Screen

From: $228.00

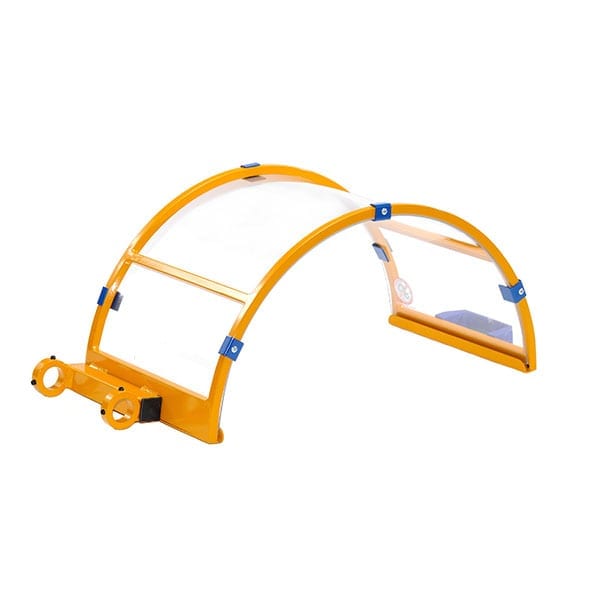

A curved shield with a steel frame & replaceable polycarbonate screen.  Available in many different sizes.
Lathe safety shield dimensions

Easy Swap

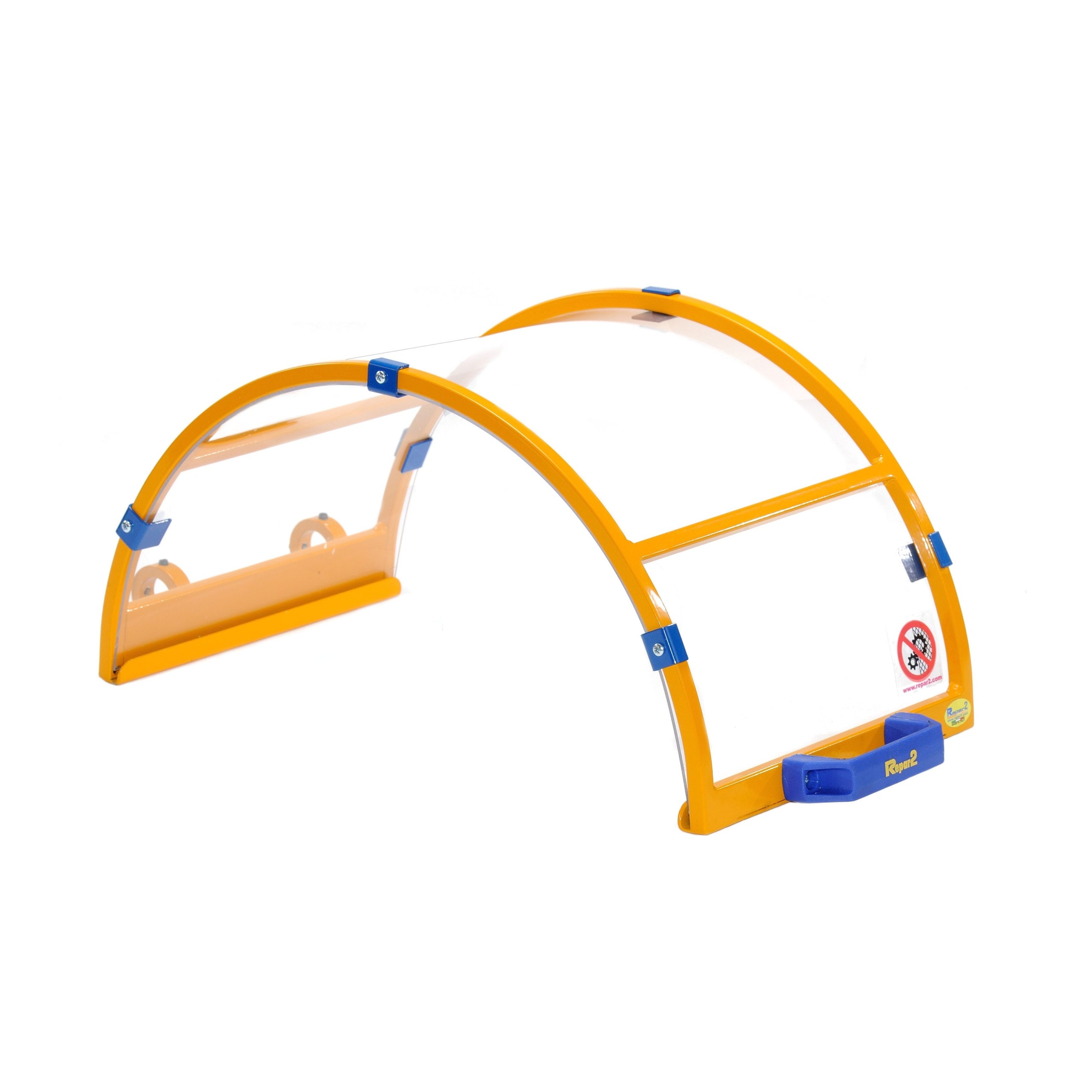

Replaceable Shield
SKU: PX-SCR

This shield includes a steel frame and polycarbonate screen. To order just the replacement polycarbonate shields, click here.

These safety shields provide 180-degree protection against projections and entanglement hazards. The polycarbonate window can withstand projections and impact.

Versatile Safety Shield

See below to order this shield as a replacement part for a model TF, FB, FBB, FA, FAB, or TR-3B safety guard.

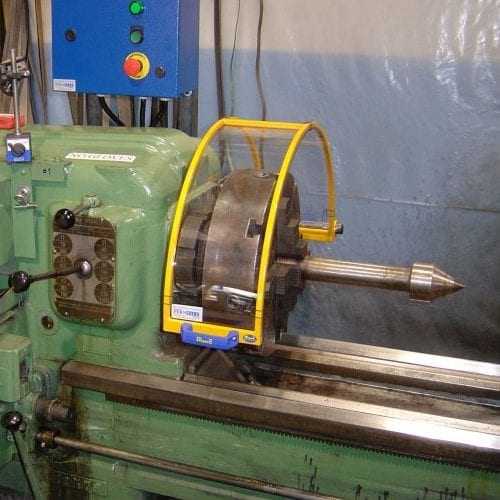

We have used this off-the-shelf shield many times in some of our projects. See an example in the following video:

Ordering Replacement Shields

These are replacement shields for our following products:

Use the diagram below to find which part corresponds to the approximate A & B dimensions. If you know the part number of our TF, FB, FBB, FA, FAB, or TR-3B safety guards, you can match the last seven characters of its part number to the previous seven characters in the chart below.

Example: An FB-350H250 safety guard will have a PX-SCR-350H250 replacement screen.


Lathe safety shield dimensions


P/N A B
PX-SCR-200H130 8″ (200mm) 5″ (130mm)
PX-SCR-200H180 7″ (180mm)
PX-SCR-200H240 9.5″ (240mm)
PX-SCR-250H130 9 3/4″ (250mm) 5″ (130mm)
PX-SCR-300H180 11 3/4″ (300mm) 7″ (180mm)
PX-SCR-300H240 9.5″ (240mm)
PX-SCR-350H180 13 3/4″ (350mm) 7″ (180mm)
PX-SCR-350H240 9.5″ (240mm)
PX-SCR-400H180 15 3/4″ (400mm) 7″ (180mm)
PX-SCR-400H240 9.5″ (240mm)
PX-SCR-450H180 17 3/4″ (450mm) 7″ (180mm)
PX-SCR-450H240 9.5″ (240mm)
PX-SCR-500H180 19 1/2″ (500mm) 7″ (180mm)
PX-SCR-500H240 9.5″ (240mm)
PX-SCR-550H180 21 1/2″ (550mm) 7″ (180mm)
PX-SCR-550H240 9.5″ (240mm)
PX-SCR-600H180 23 1/2″ (600mm) 7″ (180mm)
PX-SCR-600H240 9.5″ (240mm)
PX-SCR-650H180 25 1/2″ (650mm) 7″ (180mm)
PX-SCR-650H240 9.5″ (240mm)
PX-SCR-700H180 27 1/2″ (700mm) 7″ (180mm)
PX-SCR-700H240 9.5″ (240mm)
PX-SCR-750H180 29 1/2″ (750mm) 7″ (180mm)
PX-SCR-750H240 9.5″ (240mm)
PX-SCR-800H180 31 1/2″ (800mm) 7″ (180mm)
PX-SCR-800H240 9.5″ (240mm)

Weight N/A
Dimensions N/A
Interlock Switch

Manufacturer: Telemecanique
Metal enclosure switch, IP65 rated degree of protection conforming to conforming to IEC 60529
Operational characteristics: 3A @ 240VAC, 0.1A @ 240VDC
2x NC and 1x NO electrical contacts
Mechanical durability: 100000 operating cycles
Ambient air temperature: -25 …. +70 °C

Screen Diameter A

7 3/4" (200mm), 9 3/4" (250mm), 11 3/4" (300mm), 13 3/4" (350mm), 15 3/4" (400mm), 17 3/4" (450mm), 19 1/2" (500mm), 21 1/2" (550mm), 23 1/2" (600mm), 25 1/2" (650mm), 27 1/2" (700mm), 29 1/2" (750mm), 31 1/2" (800mm)

Screen Width B

5" (130mm), 7'' (180mm), 9.5'' (240mm)

Manufacturer

Ferndale Safety

Brand

Ferndale Safety

Has interlock switch

No (No Interlock)

Product color

Clear, Ferndale Yellow

Product Features

Polycarbonate, Replaceable screen or shield
