Milling Machine Guard (Fits most mills)

From: $1,303.00

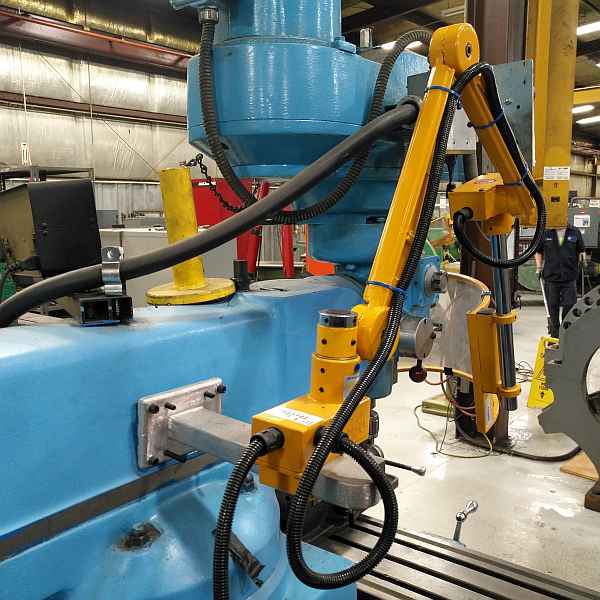

Safety guard for milling machines with a round shield. Great for knee-type milling machines such as Bridgeport mills.

  • Installs on the ram
  • Replaceable clear Lexan
  • Includes Safety switches
  • Adjustable
  • Chip protection
Lathe safety shield dimensions
Safety Switch
Electrically Interlocked
Best Seller
Popular Choice!
Easy Swap
Replaceable Shield

Frequently Bought Together

Installation Kit for Safety Shields

This handy kit contains the small hardware needed to install Ferndale Safety products.

SKU: FB/FBB

These are the most popular milling machine guards at Ferndale Safety. Install these shields to protect operators from chips, coolant, and the point of operation.

You may be interested in the model FA/FAB guard for large milling machines.

This safety guarding comes standard with a left mounting (the guard is installed on the left side of the machine head). A suitable mount is available on request.

Milling Machine Guard Features

  • Easy to install directly on the side of the milling machine.
  • It includes interlock switches.
  • There are lots of shield sizes to choose from
  • A polycarbonate shield is simple to replace when needed.
  • Easily adjust to fit your work style.
  • Meets or exceeds safety standards for milling machines.

Spare Parts

Two Models to Choose From

Choose between our standard or advanced milling machine guards. The advanced model includes a strut, allowing you to move the shield quickly and quick part changes during production runs.

Model FB milling machine guard

Standard Model FB

Model FBB milling machine guarding

With Lift Support FBB

Shield Sizes

Left Or Right Mounting is Available On Request. Left mounting is standard.

P/N
A B
FB/FBB-200H180 8″ (200mm) 7″ (180mm)
FB/FBB-200H240 9.5″ (240mm)
FB/FBB-300H180 11 3/4″ (300mm) 7″ (180mm)
FB/FBB-300H240 9.5″ (240mm)
FB/FBB-350H180 13 3/4″ (350mm) 7″ (180mm)
FB/FBB-350H240 9.5″ (240mm)
FB/FBB-400H180 15 3/4″ (400mm) 7″ (180mm)
FB/FBB-400H240 9.5″ (240mm)
FB/FBB-450H180 17 3/4″ (450mm) 7″ (180mm)
FB/FBB-450H240 9.5″ (240mm)
FB/FBB-500H180 19 1/2″ (500mm) 7″ (180mm)
FB/FBB-500H240 9.5″ (240mm)
FB/FBB-550H180 21 1/2″ (550mm) 7″ (180mm)
FB/FBB-550H240 9.5″ (240mm)
FB/FBB-600H180 23 1/2″ (600mm) 7″ (180mm)
FB/FBB-600H240 9.5″ (240mm)
FB/FBB-600P-Flat 23 1/2″ (600mm) – Flat 15.75″ (400mm) – Flat
FB/FBB-650H180 25 1/2″ (650mm) 7″ (180mm)
FB/FBB-650H240 9.5″ (240mm)
FB/FBB-700H180 27 1/2″ (700mm) 7″ (180mm)
FB/FBB-700H240 9.5″ (240mm)
FB/FBB-750H180 29 1/2″ (750mm) 7″ (180mm)
FB/FBB-750H240 9.5″ (240mm)
FB/FBB-800H180 31 1/2″ (800mm) 7″ (180mm)
FB/FBB-800H240 9.5″ (240mm)

Flat shield for milling machine safety guard.

The flat screen for model FB/FBB-600P-FLAT is shown.

Weight N/A
Dimensions N/A
Manufacturer

Ferndale Safety

Brand

Ferndale Safety

Has interlock switch

Yes (With Interlock)

Product color

Ferndale Yellow

Product Features

Bolt-on, Polycarbonate, Replaceable screen or shield, Adjustable

Installation Manual

FB - FBB - FA - FAB - Ferndale Safety Installation Manual

Electrical Connections

Spare Parts

Electrical Specifications

Electrical Contacts

Contacts type: 1 NO + 2 NC B300, AC-15 (Ue = 240 V), Ie = 1.5 A, Ithe = 6 A conforming to EN/IEC 60947-5-1 appendix A R300, DC-13 (Ue = 250 V), Ie = 0.1 A conforming to EN/IEC 60947-5-1 appendix A

Disclaimer: By purchasing Our Products, you agree not to use them for "hot work" (e.g., welding, soldering, cutting) due to fire risk. Misuse is forbidden, and following all safety guidelines is required. Non-compliance means you accept full responsibility for any resulting harm or damage. For your safety and the effectiveness of Our machine guarding, remain within the "Safe Work Zone" directly in front of the guarding. Standing to the side increases injury risk and breaches our usage policy. Adhering to this rule ensures your safety and the Products optimal performance. For detailed safety and operational guidelines, please see our Terms and Conditions. (click here)
