Milling Machine Guard for Universal, Bed, & Ram-Type Mills

From: $1,303.00

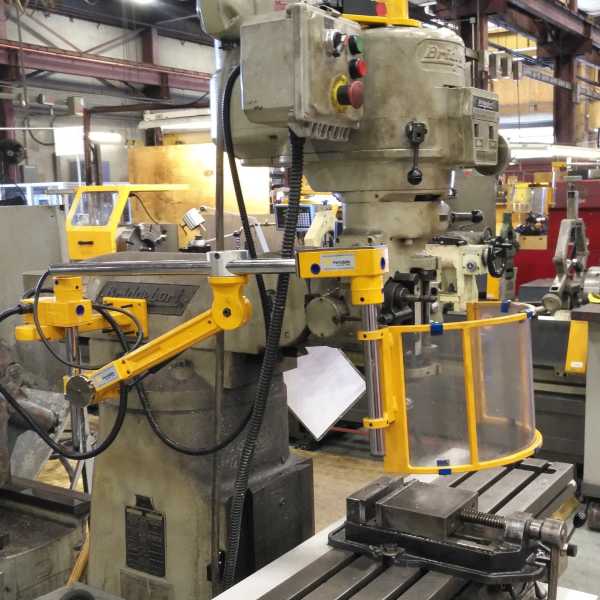

Universal mill guards are easy to install and are great for turret head milling machines. They include built-in electrical safety interlock switches.

  • Installs on the ram
  • Replaceable clear Lexan
  • Includes Safety switches
  • Adjustable
  • Chip protection
Lathe safety shield dimensions
Safety Switch
Electrically Interlocked

Frequently Bought Together

Installation Kit for Safety Shields

This handy kit contains the small hardware needed to install Ferndale Safety products.

SKU: FA/FAB

Milling Machine Guard for Universal, Bed, & Ram-Type Mills

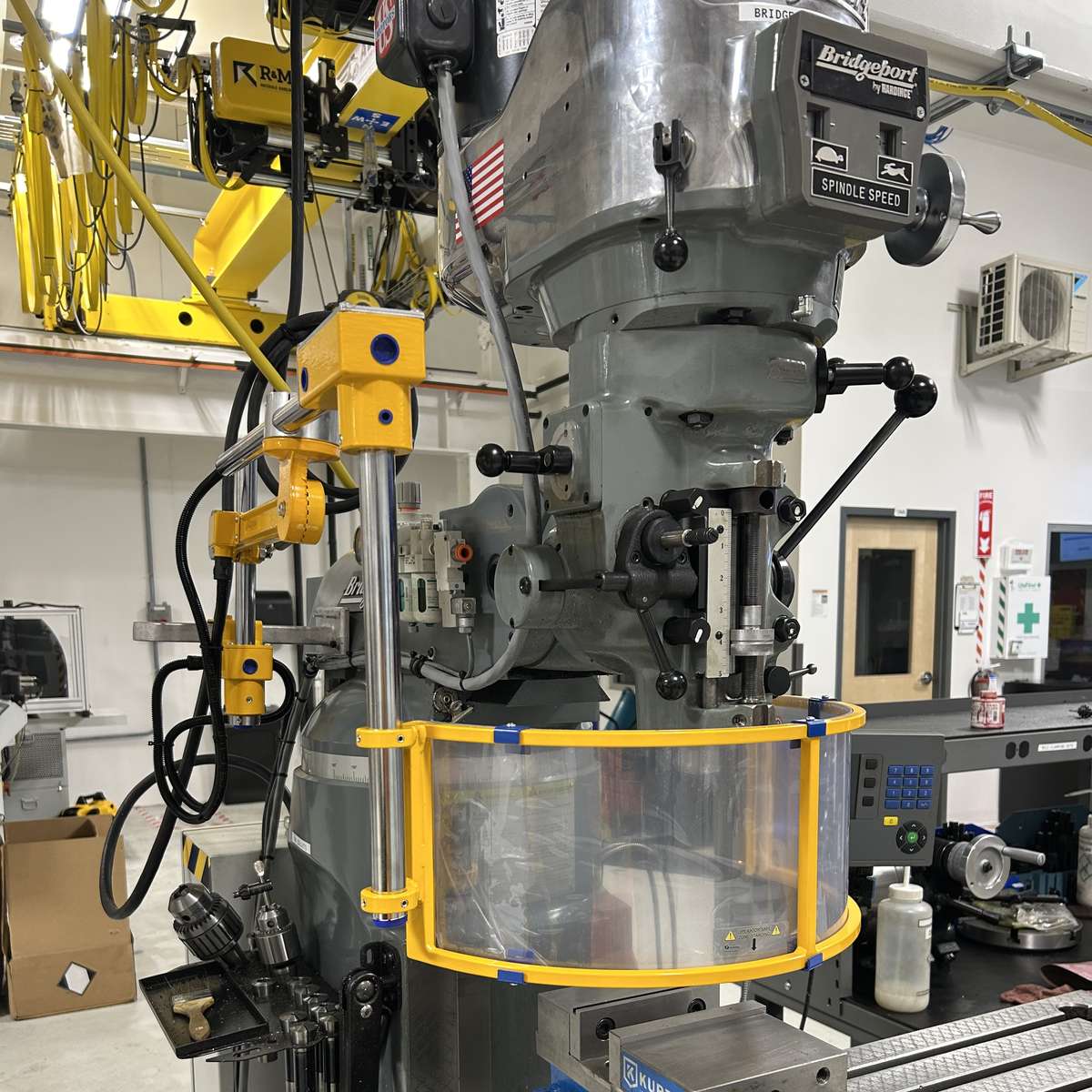

This mill guard works excellently as a chip and coolant shield for any mill, universal head milling, or cutting machine. You can be sure this versatile mill guard is adjustable to any milling machine and work type you can throw at it. The screen rotates and has tons of ways to position it.

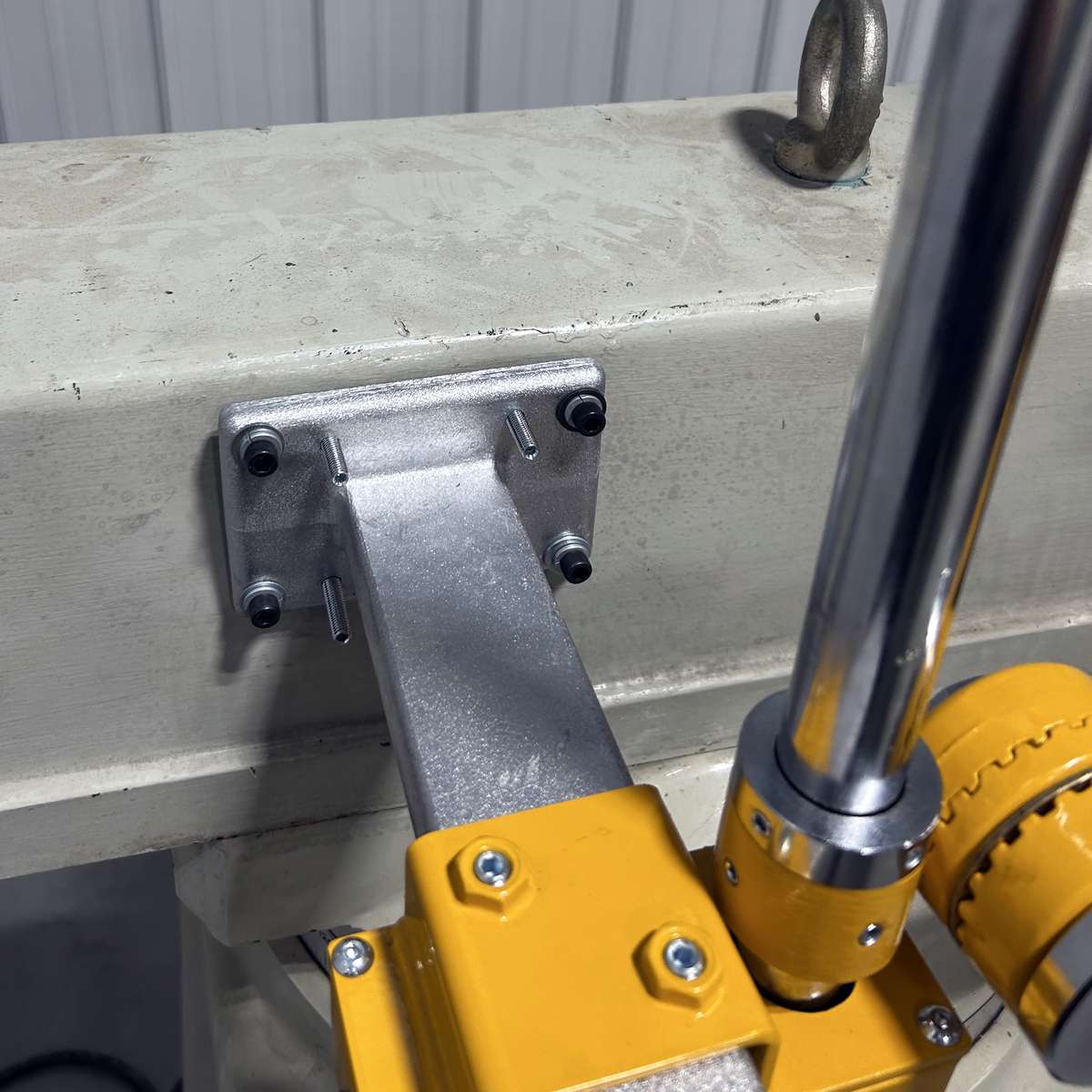

  • Easy installation with a built-in leveling system
  • Includes electrical safety interlocks that connect to the spindle control.
  • Positive action safety switches are encapsulated inside a steel box enclosure to avoid tampering.
  • There are many screen sizes
  • Easy polycarbonate shield replacement.
  • Easy adjustments to fit any machine and work style

Model Types

Please choose from our standard or the new advanced model with lift support for extra movement capabilities. The lift support model will allow you to easily lift the screen for quicker access to your work area.

FA standard guard for mills

Standard Model FA

FA universal mill guard with lifting strut.

With Lift Support FAB


Safety Screen Sizing Information

This safety guarding comes standard with a left mounting (the guard is installed on the left side of the machine head). The correct mounting option is available upon request.

The part number starts with FA for the standard models or FAB for the advanced mill guard.

P/N A B
(FA/FAB)-200H180 8″ (200mm) 7″ (180mm)
(FA/FAB)-200H240 9.5″ (240mm)
(FA/FAB)-300H180 11 3/4″ (300mm) 7″ (180mm)
(FA/FAB)-300H240 9.5″ (240mm)
(FA/FAB)-350H180 13 3/4″ (350mm) 7″ (180mm)
(FA/FAB)-350H240 9.5″ (240mm)
(FA/FAB)-400H180 15 3/4″ (400mm) 7″ (180mm)
(FA/FAB)-400H240 9.5″ (240mm)
(FA/FAB)-450H180 17 3/4″ (450mm) 7″ (180mm)
(FA/FAB)-450H240 9.5″ (240mm)
(FA/FAB)-500H180 19 1/2″ (500mm) 7″ (180mm)
(FA/FAB)-500H240 9.5″ (240mm)
(FA/FAB)-550H180 21 1/2″ (550mm) 7″ (180mm)
(FA/FAB)-550H240 9.5″ (240mm)
(FA/FAB)-600H180 23 1/2″ (600mm) 7″ (180mm)
(FA/FAB)-600H240 9.5″ (240mm)
(FA/FAB)-600P-Flat 23 1/2″ (600mm) 15.75″ (400mm)
(FA/FAB)-650H180 25 1/2″ (650mm) 7″ (180mm)
(FA/FAB)-650H240 9.5″ (240mm)
(FA/FAB)-700H180 27 1/2″ (700mm) 7″ (180mm)
(FA/FAB)-700H240 9.5″ (240mm)
(FA/FAB)-750H180 29 1/2″ (750mm) 7″ (180mm)
(FA/FAB)-750H240 9.5″ (240mm)
(FA/FAB)-800H180 31 1/2″ (800mm) 7″ (180mm)
(FA/FAB)-800H240 9.5″ (240mm)

Safety screen for milling machines by Ferndale Safety.



Shown: FA-600P-Flat —> flat screen 600mm X 400mm.

Weight N/A
Dimensions N/A
Brand

Ferndale Safety

Has interlock switch

Yes (With Interlock)

Manufacturer

Ferndale Safety

Product color

Ferndale Yellow

Product Features

Bolt-on, Polycarbonate, Replaceable screen or shield, Adjustable

Installation Manual

FB - FBB - FA - FAB - Ferndale Safety Installation Manual

Electrical Connections

Spare Parts

Electrical Specifications

Electrical Contacts

Contacts type: 1 NO + 2 NC B300, AC-15 (Ue = 240 V), Ie = 1.5 A, Ithe = 6 A conforming to EN/IEC 60947-5-1 appendix A R300, DC-13 (Ue = 250 V), Ie = 0.1 A conforming to EN/IEC 60947-5-1 appendix A

Disclaimer: By purchasing Our Products, you agree not to use them for "hot work" (e.g., welding, soldering, cutting) due to fire risk. Misuse is forbidden, and following all safety guidelines is required. Non-compliance means you accept full responsibility for any resulting harm or damage. For your safety and the effectiveness of Our machine guarding, remain within the "Safe Work Zone" directly in front of the guarding. Standing to the side increases injury risk and breaches our usage policy. Adhering to this rule ensures your safety and the Products optimal performance. For detailed safety and operational guidelines, please see our Terms and Conditions. (click here)
