Radial Drill Press Guard

From: $645.00

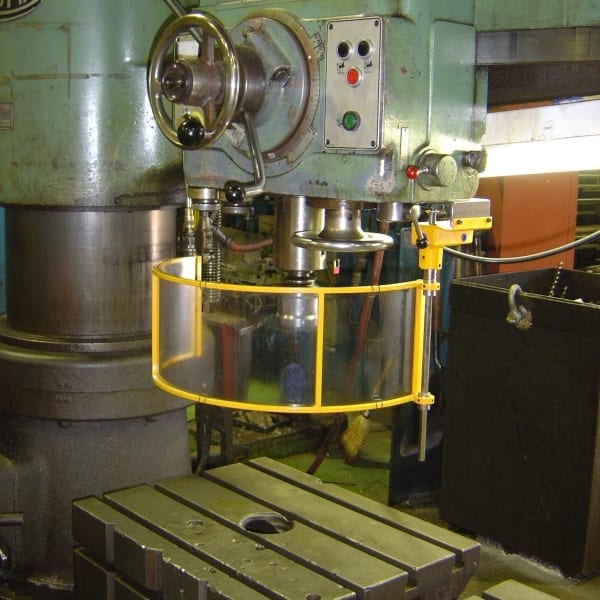

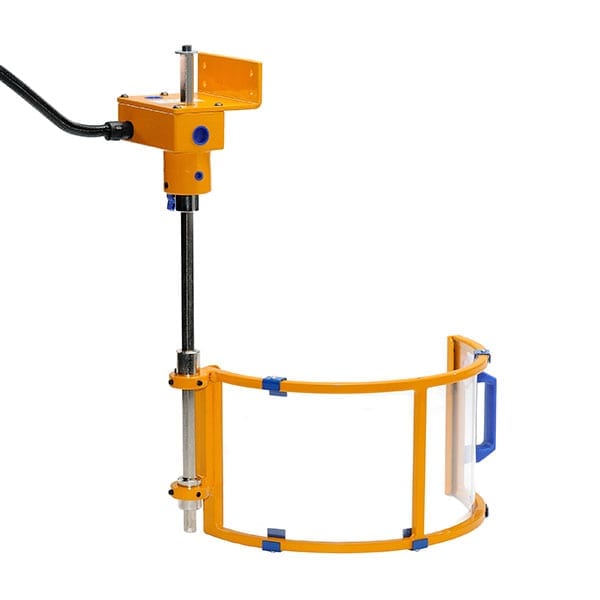

A curved safety shield is available in many different sizes, especially to cover the spindle on radial drills.Lathe safety shield dimensions

  • Covers and protects spindle and chuck area
  • Rotates/Swings open
  • Adjustable up/down
  • Available with a safety switch
  • Lexan window is easily replaced with clips

Want to know more about drill press safety?  Click here!

Safety Switch
Electrically Interlocked
Easy Swap
Replaceable Shield

Installation Kit for Safety Shields

SKU: TR-3B

Designed for Radial Drills

OSHA’s 29 CFR 1910.212(a)(1) requires shielding of rotating parts, including the spindle on radial drills. We specially designed these to fit most radial arm drills so you can choose the screen size that fits your machine and process.

These guards are perfect for radial or large drill presses with gearbox heads. They are heavy-duty and include a built-in electrical safety interlock switch that is tamper-resistant. The safety interlock switch ensures the safety guard is in place before operators can use the machine.

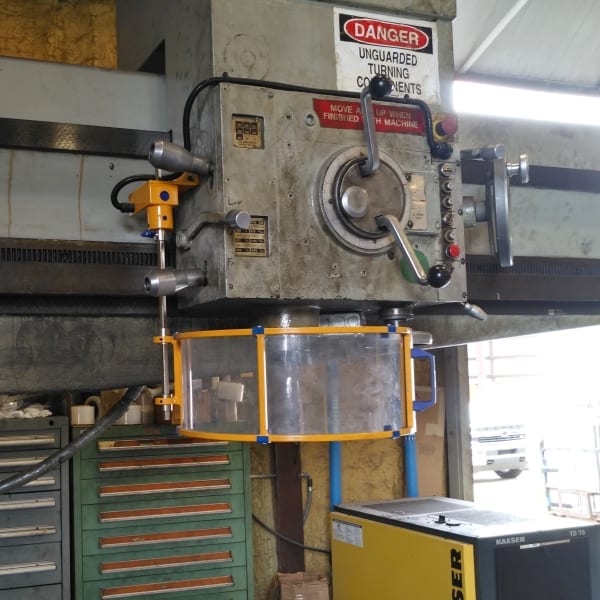

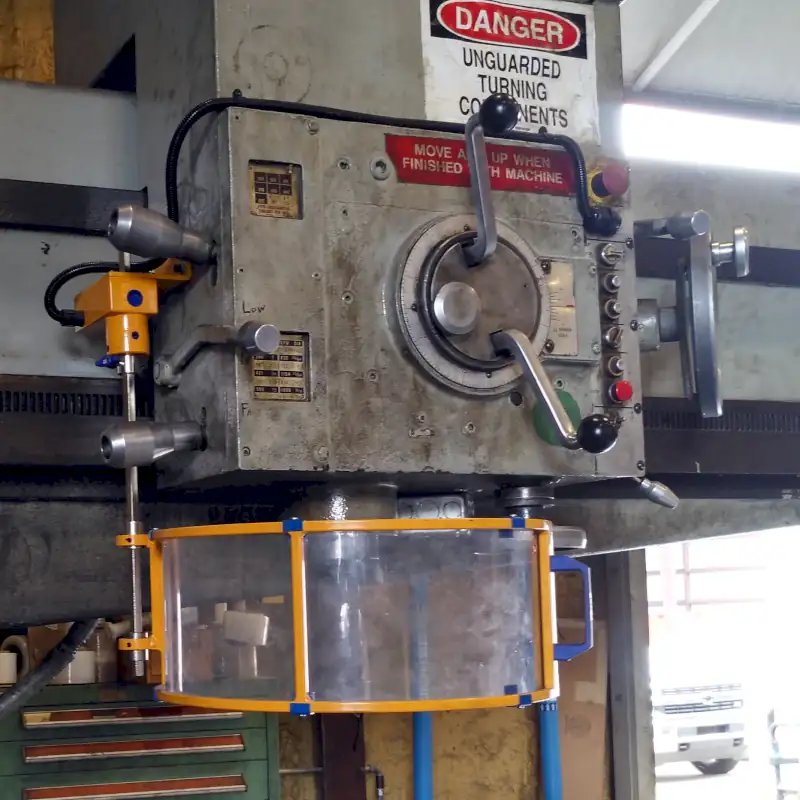

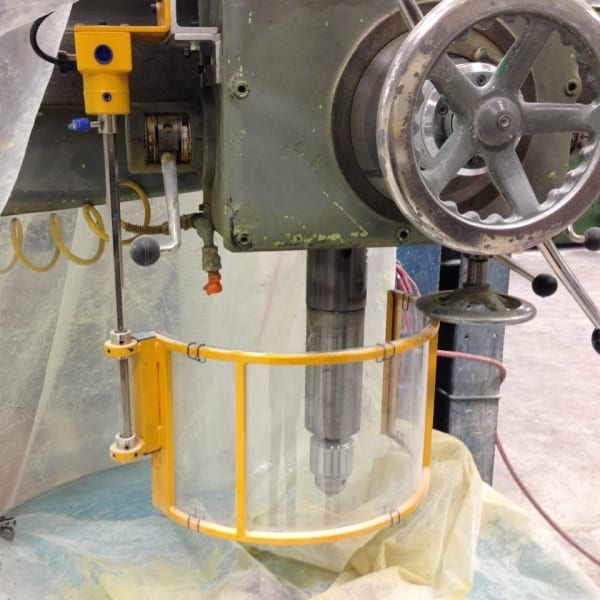

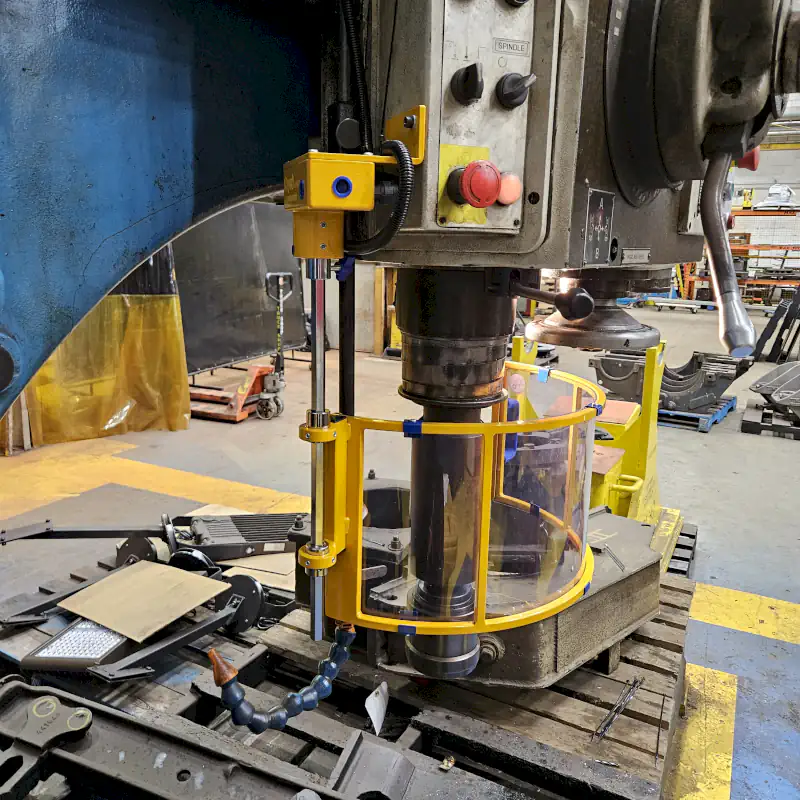

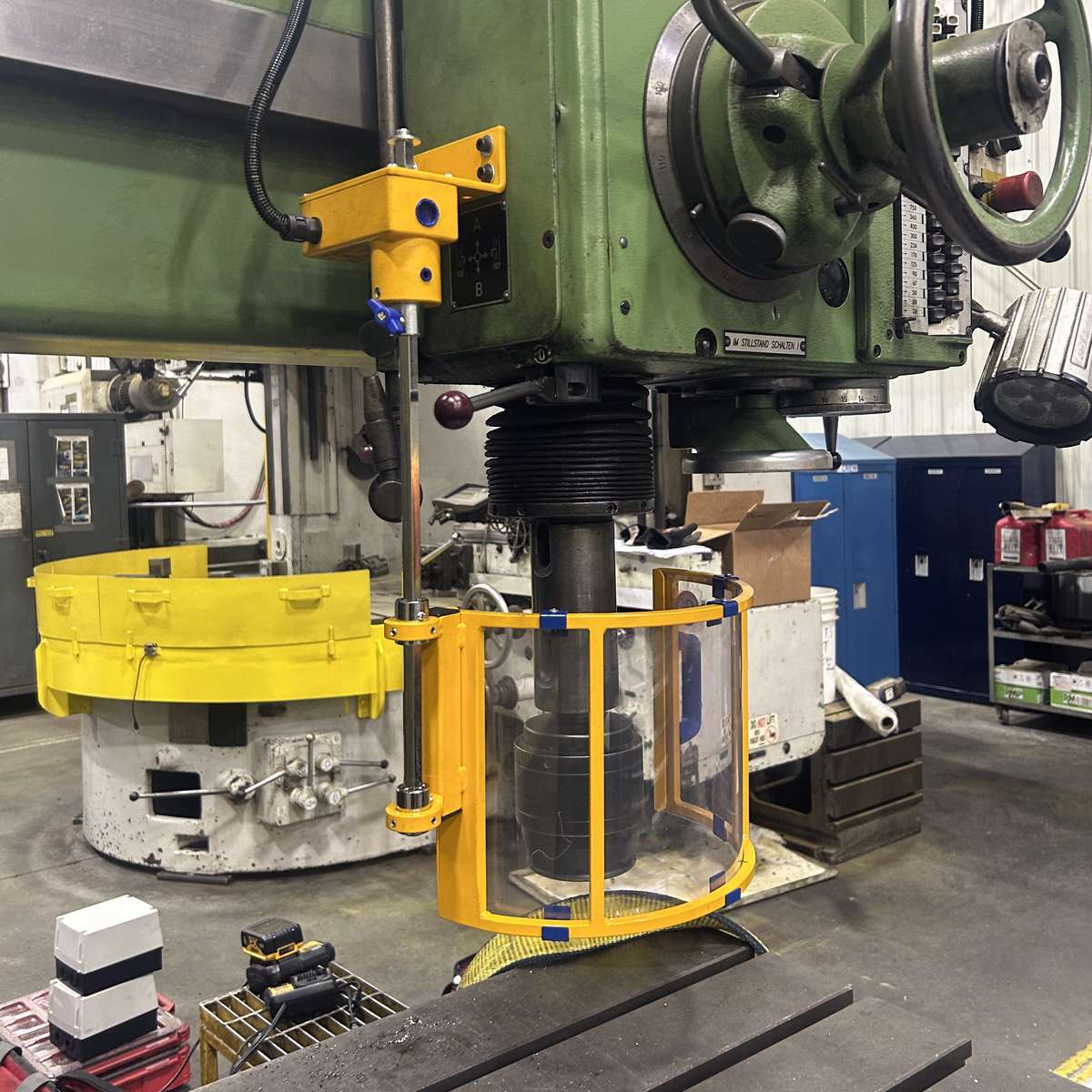

We have installed these on radial drills such as STANKO, ARBOGA, CINCINNATI, CARLTON, GIDDINGS & LEWIS, MAS, and many more.

Demonstration Video

Sizing Information

Lathe safety shield dimensions

P/N A B
TR-3B-200H180 8″ (200mm) 7″ (180mm)
TR-3B-200H240 9.5″ (240mm)
TR-3B-300H180 11 3/4″ (300mm) 7″ (180mm)
TR-3B-300H240 9.5″ (240mm)
TR-3B-350H150 13 3/4″ (350mm) 6″ (150mm)
TR-3B-350H180 7″ (180mm)
TR-3B-350H240 9.5″ (240mm)
TR-3B-400H180 15 3/4″ (400mm) 7″ (180mm)
TR-3B-400H240 9.5″ (240mm)
TR-3B-450H180 17 3/4″ (450mm) 7″ (180mm)
TR-3B-450H240 9.5″ (240mm)
TR-3B-500H180 19 1/2″ (500mm) 7″ (180mm)
TR-3B-500H240 9.5″ (240mm)
TR-3B-550H180 21 1/2″ (550mm) 7″ (180mm)
TR-3B-550H240 9.5″ (240mm)
TR-3B-600H180 23 1/2″ (600mm) 7″ (180mm)
TR-3B-600H240 9.5″ (240mm)
TR-3B-650H180 25 1/2″ (650mm) 7″ (180mm)
TR-3B-650H240 9.5″ (240mm)

Spare Parts

Weight N/A
Dimensions N/A
Screen Diameter A

7 3/4'' (200mm), 11 3/4" (300mm), 13 3/4" (350mm), 15 3/4" (400mm), 17 3/4" (450mm), 19 1/2" (500mm), 21 1/2" (550mm), 23 1/2" (600mm), 25 1/2" (650mm)

Screen Width B

6" (150mm), 7" (180mm), 9.5" (240mm)

Manufacturer

Ferndale Safety

Brand

Ferndale Safety

Has interlock switch

Yes (With Interlock)

Product color

Clear, Ferndale Yellow

Product Features

Bolt-on, Polycarbonate, Adjustable
