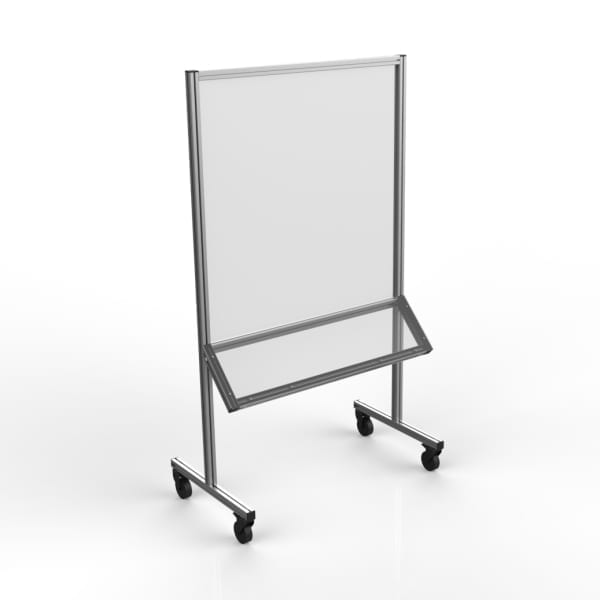

• Lathe backsplash wall.
  • Front side of backsplash.
  • Rear side of backsplash.
  • Lathe backsplash wall drains coolant back into machine pan.

BSW – Movable Lathe Backsplash Shield


Easy to move lathe backsplash contains coolant and chips behind your machine.  Made of see-through polycarbonate.  Customizable options are available.


What’s behind your lathe? Put this lathe backsplash behind your machine to contain chips and coolant.  A built-in chute allows the Also useful for any other machine that needs a physical guard to cover exposed parts such as chip cleanouts and moving parts.

These shields are especially important if there is a walkway or passage behind a lathe.  You must ensure that there is some sort of physical barrier to protect anyone that may be walking behind the machine while it is in operation.

Lathe Backsplash at a Glance

  • Lightweight, 4 feet wide aluminum frame with large see-through windows.
  • Easy to move for maintenance or clean-up.
  • It contains coolant splashing back into the coolant pan.
  • The lathe backsplash includes four caster wheels with brakes.

We can customize these mobile backsplash walls to suit your applications. Contact us for custom sizes or designs.

Shipping Note

The assembled guard is rather large and must be shipped on a palette (4′ x 8′ x 1′).  We could ship this in kit form, please contact us for more information.

Product Variations

Weight 52 lbs
Dimensions 72 × 44 × 12 in
