PT – Electrically Interlocked Lathe Safety Shield

From: $1,160.00

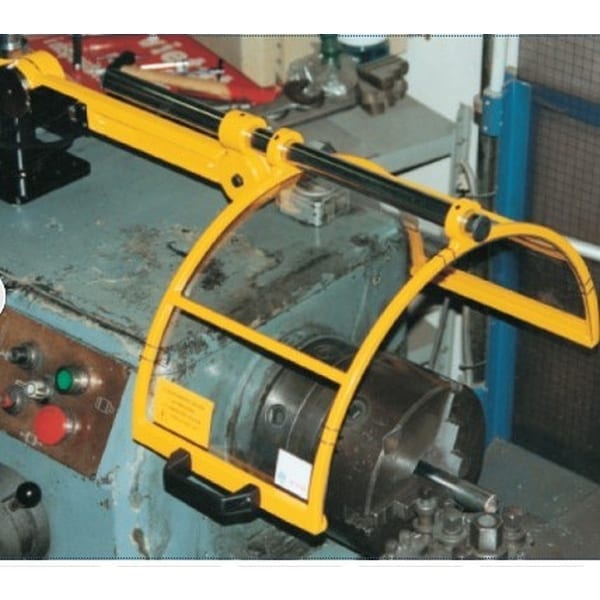

Safety shield mounted on an interlocked arm.  The arm and shield assembly can lift with the help of a gas spring.  Available in a variety of sizes.  Easy four-bolt installation.

Special sizes are available on request.


Use this interlocked safety shield on lathe chucks, balancers, rotating shafts, or flywheels.  This is a versatile safety shield that includes a built-in electrical interlock switch.   The gas strut (gas spring) behaves similarly to a car tailgate strut.  It will keep the guard in its open position and prevent it from falling.

Product Features

  • Fully adjustable & has many adjustment points.
  • Easily replaceable polycarbonate shield.
  • An electrical safety interlock is included
  • Mounting bracket included.

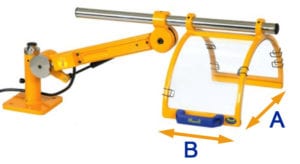

Screen Sizing Information

P/N A (Diameter) B (Width)
PT-300 11 3/4”
9 1/2”(240mm)
PT-350 13 3/4”
9 1/2”(240mm)
PT-400 15 3/4”
9 1/2”(240mm)
PT-450 17 3/4”
9 1/2”(240mm)
PT-500 19 1/2”
9 1/2”(240mm)
PT-600 23 1/2”
9 1/2”(240mm)

Other Electrically Interlocked Chuck Shields

Most of our safety solutions come standard with built-in electrical interlocking.  When connected properly, these electrical safety interlocks prevent the operation of the machine when the guard is open.

Check out some of our other interlocked lathe chuck safety shields here.

Product Variations

Note: Use the selection boxes above to see specific information here.

Weight N/A
Dimensions N/A
Screen Diameter A

11 3/4" (300mm), 13 3/4" (350mm), 15 3/4" (400mm), 17 3/4" (450mm), 19 1/2" (500mm), 23 1/2" (600mm)

Screen Width B

9 1/2" (240mm)
