Leadscrew Covers for Large Lathes
$6,819.00 – $7,359.00
Lead screw covers for large lathes. To keep the spring load through the full travel, we have developed the double boxes for screws longer than 23 feet.
Industrial-duty leadscrew and feed screw safety cover/blind for lathes.
This product covers the feed and lead screws to prevent operator entanglement.
Made from high strength, heat-resistant Aramid fibers.

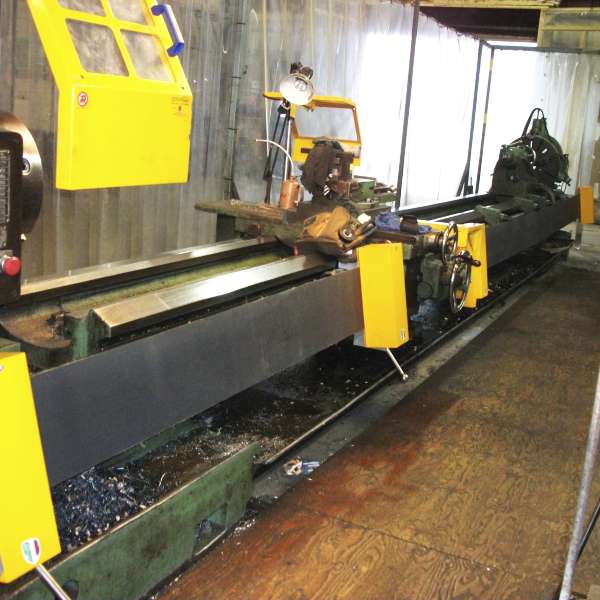

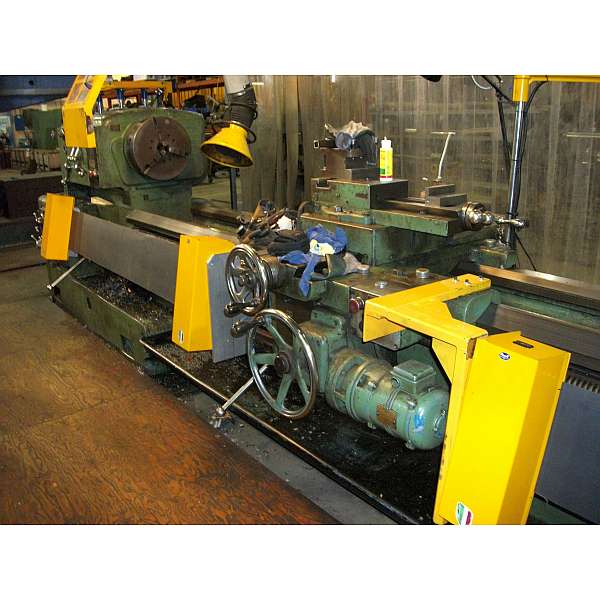

Comes as a set of two covers (One for each side of the lathe carriage).
Special sizes available on request.
| P/N | Length | Width |
| AR-7000H300DB | 7000 (275”) | 300 (12”) |
| AR-8000H300DB | 8000 (314”) | 300 (12”) |
Product Features
- Protects screws from chip deposits, extending life of machinery
- Made from high strength, heat-resistant Aramid fibers
- High strength spring retraction mechanism ensures sag free operation

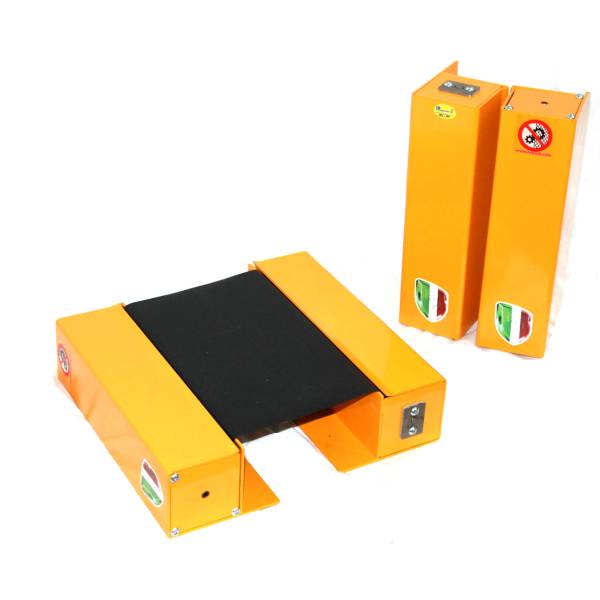

- Roll and spring mechanism enclosed in a welded steel box
- As cover retracts onto roller mechanism inside the steel box chips that may have deposited onto cover get wiped away to avoid damage to internal components.
Sizing Information
Each lathe lead screw model comes in a set of two covers to be installed on the left and right side of the carriage. To figure out what size you need take the length of the bed and take the closest measurement in the column “Length” below.
| P/N | Length | Width |
| AR-7000H300DB | 7000 (275”) | 300 (12”) |
| AR-8000H300DB | 8000 (314”) | 300 (12”) |
Example: You measure an 290″ bed on your lathe. The closest measurement in column “Length” is 275″ (model AR7000), however a better option would be the model AR8000. It is always better to have more than not enough.
Product Variations
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Leadscrew Length | 275" (7000mm), 314" (8000mm) |
| leadscrew width | 12" (300mm) |
| P/N | AR-7000H300DB, AR-8000H300DB |
