Full-Lathe Guarding Bundle for Chuck, Lead Screw, and Cross-Slide

From: $2,419.00

This complete lathe guarding kit includes a chuck shield, chip shield, and a full lead screw cover kit. Works great with most small to medium-sized lathes.

Get a 15% discount when you order!  Your discount will apply upon checkout.

Chuck Shield Lathe Guard

Our most popular lathe chuck shield.  There are many sizes to choose from and cover most small to medium-sized lathe chucks.

Lathe Carriage Chip Shield

This lathe carriage chip shield protects the operator from flying chips, coolant, and other debris from the point of operation on a lathe.

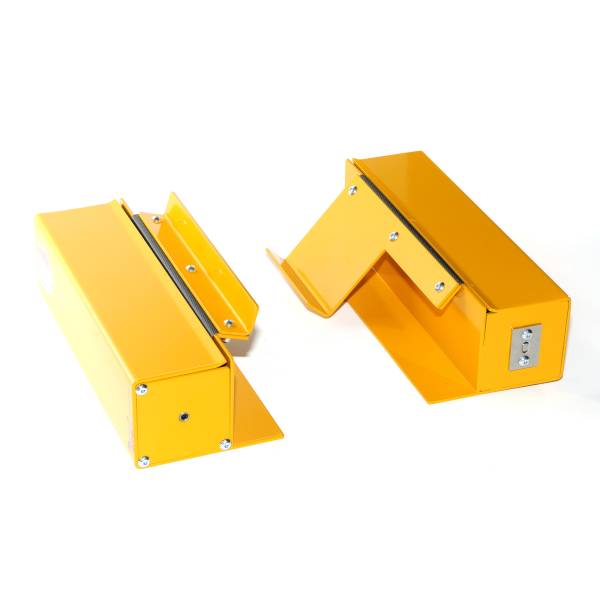

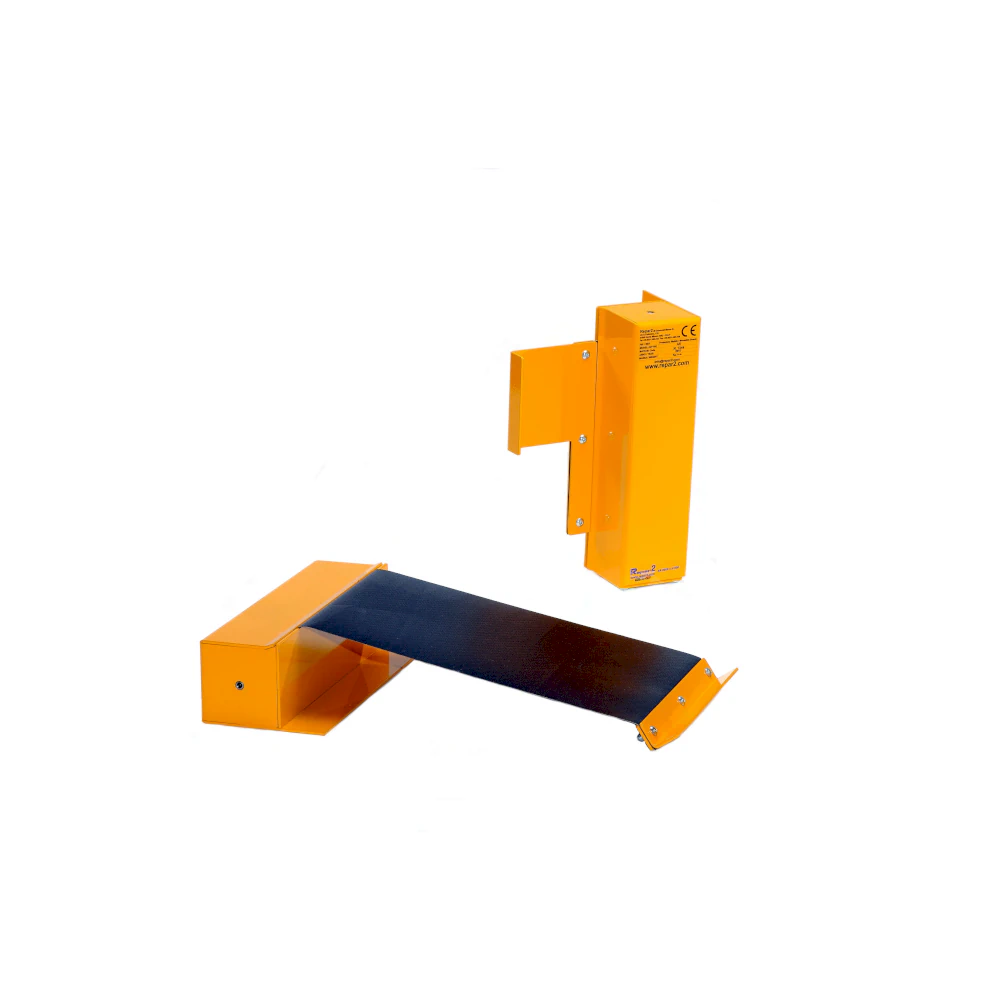

Lathe Lead Screw Covers, Retractable Safety Blinds

  • Protects the operator from accidental entanglement
  • Set of two (Left side and right side)
  • Aramide (Kevlar) fabric resists hot chips
  • Spring tensions keep the covers tight
  • Protects your lead screw against metal chips
SKU: LATHE-GUARDING-KIT

Purchase this lathe guarding system as a kit to bring your lathe up to safety standards by adding guards such as chip shields.  In addition, this kit comes complete with safety components to guard the three main areas of a lathe: the leadscrew, the chuck, and the carriage.  Adding these three safety components will help protect operators from the hazards generated by machinery such as lathes.

We get hundreds of reported amputations, lacerations, crushing injuries, and abrasions each year due to using a lathe.  These guards will help prevent many accidents on a lathe, including burns from chip ejections, the lathe pulling someone in, and accidental chuck ejections, to name a few.

Lathe Guarding System

It comes complete with the following:

  1. An electrically interlocked lathe chuck shield – Click here to determine what size you need.
  2. A carriage chip shield is optionally interlocked and available with laminated safety glass as an option.
  3. A lead screw cover that is resistant to red hot chips and cuts

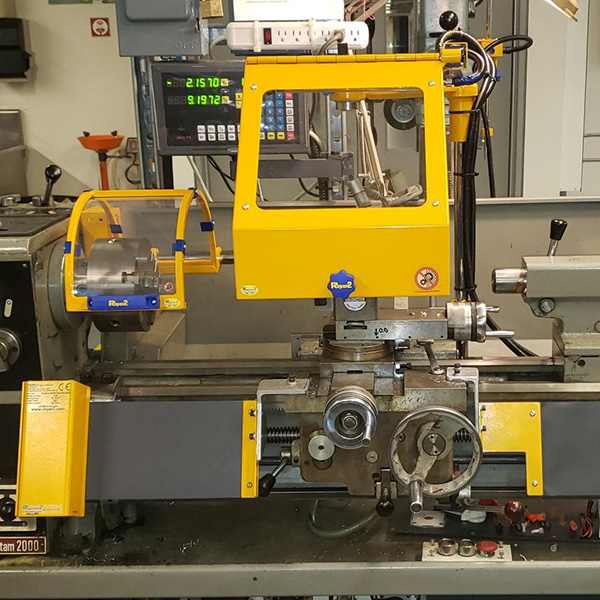

Lathe Chip Shield TC-2

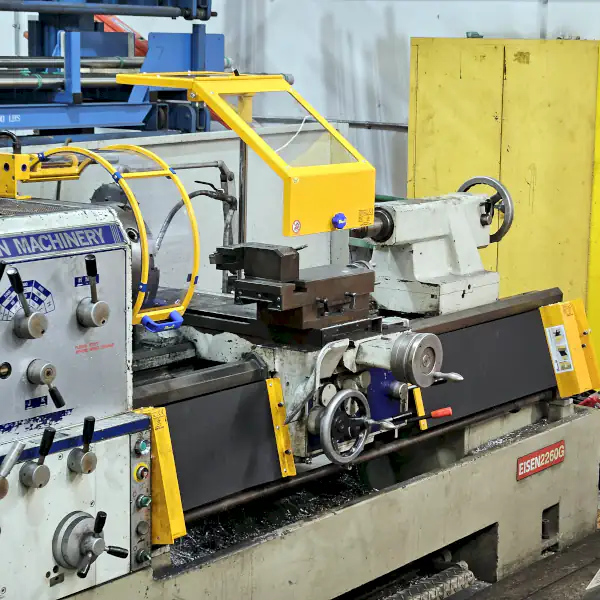

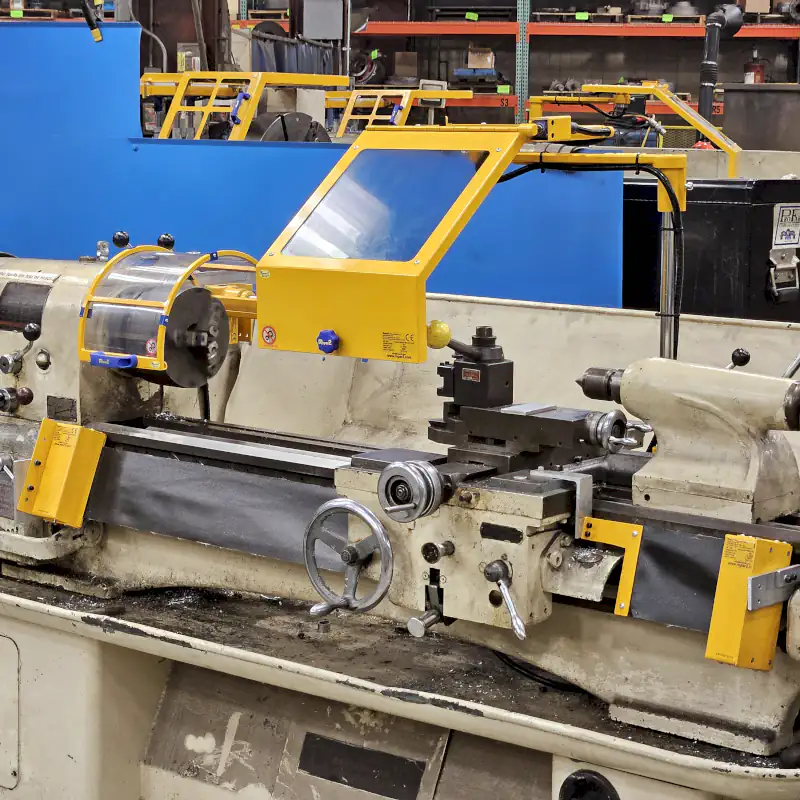

Lathe with all three safety guards installed.


*A 15% discount will be applied at checkout.

Product Variations

Note: Use the selection boxes above to see specific information here.

Manufacturer

Ferndale Safety

Brand

Ferndale Safety

Chuck Shield Lathe Guard

Weight N/A
Dimensions N/A
Screen Diameter (A)

7 3/4" (200mm), 9 3/4" (250mm), 11 3/4" (300mm), 13 3/4" (350mm), 15 3/4" (400mm), 17 3/4" (450mm), 19 1/2" (500mm), 21 1/2" (550mm), 23 1/2" (600mm), 25 1/2" (650mm), 27 1/2" (700mm), 29 1/2" (750mm), 31 1/2" (800mm)

Guard Width

5" (130mm), 7'' (180mm), 9.5'' (240mm)

Interlock Switch

Manufacturer: Telemecanique
Metal enclosure switch, IP65 rated degree of protection conforming to conforming to IEC 60529
Operational characteristics: 3A @ 240VAC, 0.1A @ 240VDC
2x NC and 1x NO electrical contacts
Mechanical durability: 100000 operating cycles
Ambient air temperature: -25 …. +70 °C

SPARE PARTS

Shield/Screen:
https://www.ferndalesafety.com/shop/safety-shield-steel-frame-polycarbonate/

Manufacturer

Ferndale Safety

Brand

Ferndale Safety

Has interlock switch

Yes (With Interlock)

Product Features

Has replaceable screen or shield, Is adjustable, Polycarbonate shield or screen, Screw or bolt mount

Lathe Carriage Chip Shield

Weight N/A
Dimensions N/A
TC model

TC-1, TC-2, TC-3, TC-4, TC-5, TC-6

Electrical

With interlock, No interlock

Manufacturer

Ferndale Safety

Brand

Ferndale Safety

Lathe Lead Screw Covers, Retractable Safety Blinds

Weight N/A
Dimensions N/A
Length

39'' (1000mm), 59" (1500mm), 78" (2000mm), 118" (3000mm), 157" (4000mm), 196" (5000mm), 236" (6000mm)

Width

6" (150mm), 8" (200mm), 10" (250mm), 12" (300mm), 13 1/2" (350mm)

P/N

AR-1500H150 (59"x6"), AR-2000H200 (78"x8"), AR-3000H250 (118"10"), AR-4000H250 (157"x10"), AR-4000H300 (157"x12"), AR-5000H250 (196"x10"), AR-5000H300(196"x12"), AR-6000H350 (236"x13.5")

Manufacturer

Ferndale Safety

Brand

Ferndale Safety

Installation Manual - Chuck Guard

TF Installation Guide EN

Installation Manual - Lead Screw Guard

AR Installation instructions EN

Installation Manual - Carriage Chip Shield

TC Installation Guide EN

Disclaimer: By purchasing Our Products, you agree not to use them for "hot work" (e.g., welding, soldering, cutting) due to fire risk. Misuse is forbidden, and following all safety guidelines is required. Non-compliance means you accept full responsibility for any resulting harm or damage. For your safety and the effectiveness of Our machine guarding, remain within the "Safe Work Zone" directly in front of the guarding. Standing to the side increases injury risk and breaches our usage policy. Adhering to this rule ensures your safety and the Products optimal performance. For detailed safety and operational guidelines, please see our Terms and Conditions. (click here)
