IE – Interlocked Safety Shield (2-Surface)

$519.00$689.00

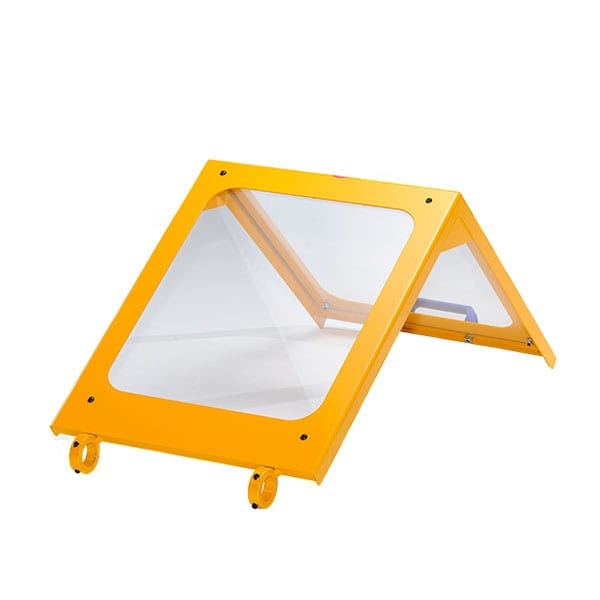

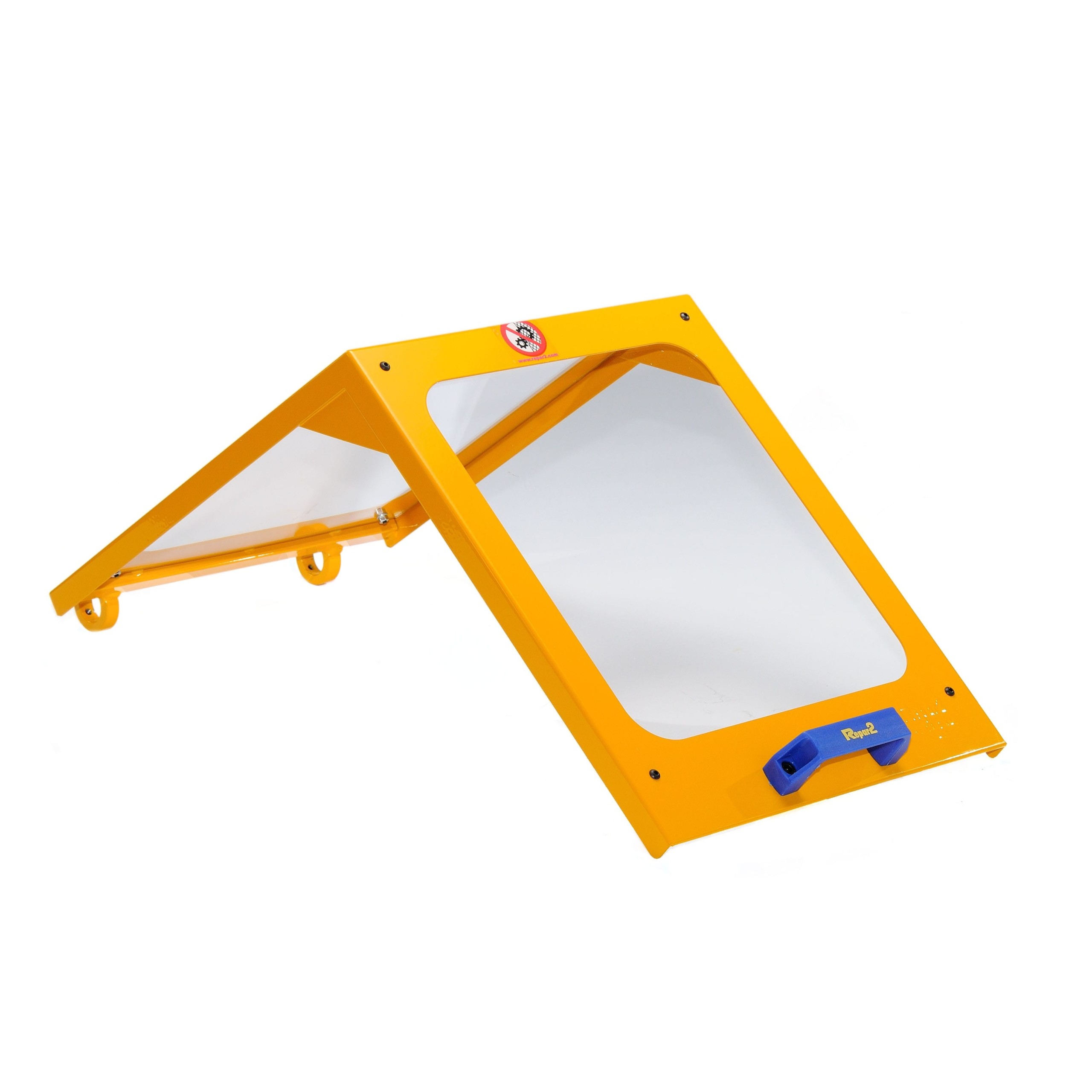

The IE guard is offered in 2 different sizes, Special sizes available on request.

Choice of polycarbonate or laminated safety glass windows

Includes mounting brackets – easy installation.

Electrically interlocked with positive action safety switch.

See description below for additional sizing information.

Special sizes available on request.

Clear
SKU: IE
Electrical description & schematic

  • Manufacturer: Telemecanique

  • Metal enclosure switch, IP65 rated degree of protection conforming to conforming to IEC 60529

  • Operational characteristics: 3A @ 240VAC, 0.1A @ 240VDC

  • 2x NC and 1x NO electrical contacts

  • Mechanical durability: 100000 operating cycles

  • Ambient air temperature: -25 .... +70 °C


wiring-diagram

View schematic in PDF

Product Features

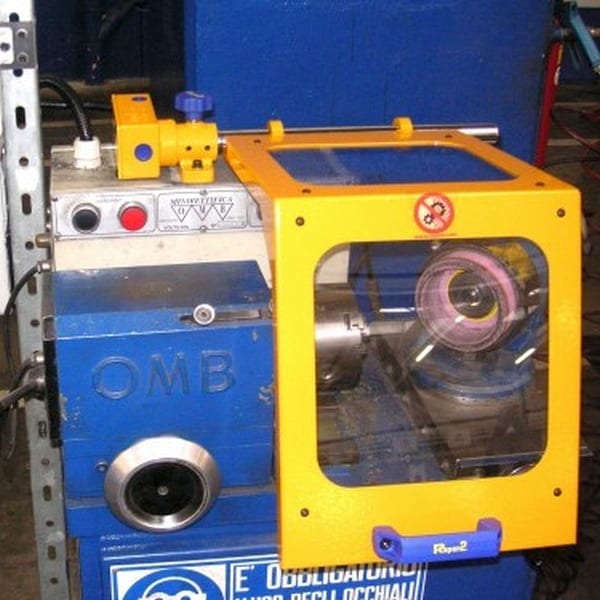

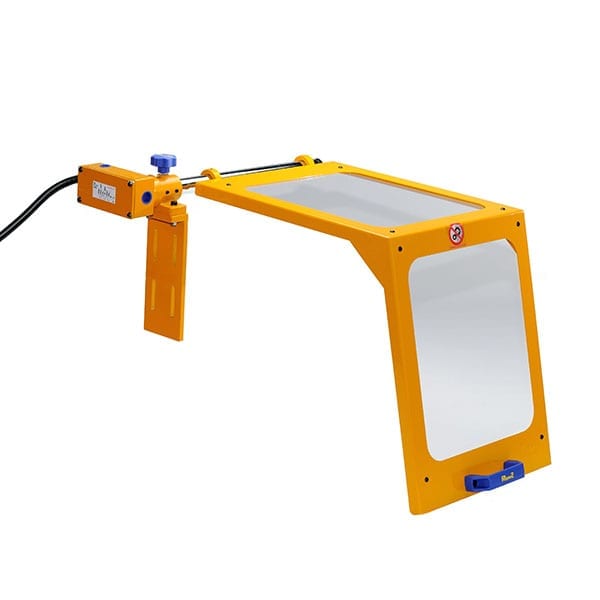

Two surface safety guard shield with a choice of polycarbonate or laminated safety glass windows.  Can be used for (but not limited to!) lathe chucks, scientific instruments, or chemical mixers.   Adjustable mounting bracket included with this kit.

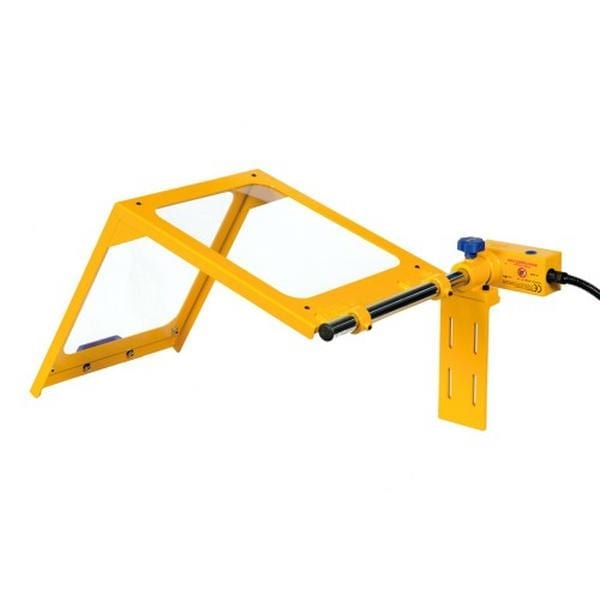

The interlocked shield rotates out of the way and as a result allows clearance for setup and part loading. The screen is made out of impact resistant polycarbonate (Lexan™) material. Polycarbonate is well known for its high impact strength. Most importantly, this safety guard includes a built-in electrical safety interlock switch which is tamper resistant.

These shields meet or exceed OSHA, ANSI and CSA standards for machine safety guarding.


Screen Sizing Information

Please choose the model according to the measurement.
ie-how-to




P/NABC
IE-A11″ (280mm)12″ (300mm)10 1/4″ (260mm)
IE-B15 1/4″ (390mm)15 1/4″ (390mm)12 1/4″ (310mm)





Easy Installation

Installation hardware and tools not included. We offer a separate installation kit that includes tools and hardware necessary for installation of this safety product.

You can buy the installation kit by clicking on the following link: Click here for the installation kit for this guard.


Why Have Safety Interlocking?

An electrical safety interlock prevents the machine from operating when the shield is opened. This safety guard features an electric switch that disables the machine’s motor. The switch is made in such a way as to prevents easy bypass of the interlock switch.

When we do on-site visits, we often see safety shields moved to the side and never put back on the machine. An interlock is a simple solution to prevention of safety guard misuse or removal.

Product Variations

Guard type

IE/A, IE/B

Screen type

Polycarbonate, Laminated Glass
