VT – Glass / Polycarbonate

$779.00$809.00

The same features as the model TF but are mostly made of heavy duty steel and with laminated glass screen for longer life! Available with polycarbonate screen.

Include an interlock to prevent access to the chuck while the machine is powered.

No problem to resist high impact, burns and while using hard chemical product.

Design to ease the installation with the use of only 2 bolts.

See description below for additional sizing information.

Special sizes available on request.

Clear
SKU: N/A
Electrical description & schematic
  • Manufacturer: Telemecanique
  • Metal enclosure switch, IP65 rated degree of protection conforming to conforming to IEC 60529
  • Operational characteristics: 3A @ 240VAC, 0.1A @ 240VDC
  • 2x NC and 1x NO electrical contacts
  • Mechanical durability: 100000 operating cycles
  • Ambient air temperature: -25 .... +70 °C

wiring-diagram

View schematic in PDF

Product Features

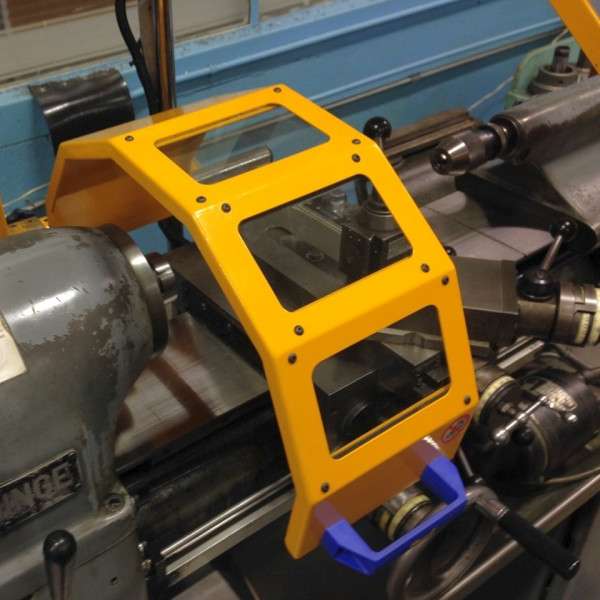

Lathe safety shield is constructed with heavy duty steel frame and laminated glass windows.
Guard opens up for easy chuck access. Lathe safety guard can be adjusted to stay mid way up.
Electrically interlocked with positive action mechanism and contacts.
Ample wiring is included with this safety guard. Wire is shielded in plastic conduit.
Available in multiple sizes and configurations to suit your application.
Easy installation – Can usually be mounted in an hour with only 2 bolts!


Screen Sizing Information

To find what screen size you need, take down the diameter of the largest chuck you use on your lathe. Multiply the diameter you measured by 1.5 and choose the screen size in A that is closest to your answer. Using this formula will guarantee that you will have room under the guard even though the jaws are open beyond the diameter of the chuck.


pol-vt-how-to

P/NAB
POL/VT300CM300mm (11 3/4″)240mm (9.5″)
POL/VT350CM350mm (13 3/4″)240mm (9.5″)
POL/VT400CM400mm (15 3/4″)240mm (9.5″)
POL/VT450CM450mm (17 3/4″)240mm (9.5″)
POL/VT500CM500mm (19 1/2″)240mm (9.5″)
POL/VT600CM600mm (23 1/2″)240mm (9.5″)



Example: You measure the chuck to be 12″ in diameter by 9″ in width.  Twelve inches, multiplied by 1.5 gives you a result of 18″. The closest measurement for the A dimension is 17 3/4″. Select 17 3/4″ from the “A” dimension drop down box above.  Select 9.5″ from the “B” dimension drop down box as it’s the closest to the width you measured.


Easy Installation

Installation hardware and tools not included.  We offer a separate installation kit that includes tools and hardware necessary for installation of this safety product.

You can buy the installation kit by clicking on the following link: Click here for the installation kit for this guard.


Why Have Safety Interlocking?

An electrical safety interlock prevents the machine from operating when the shield is opened.  This safety guard features an electric switch that disables the machine’s motor.  The switch is made in such a way as to prevents easy bypass of the interlock switch.

When we do on-site visits, we often see safety shields moved to the side and never put back on the machine.  An interlock is a simple solution to prevention of safety guard misuse or removal.


Product Variations

Screen Type

Laminated Glass, Polycarbonate

Screen Diameter

11 3/4" (300mm), 13 3/4" (350mm), 15 3/4" (400mm), 17 3/4" (450mm), 19 1/2" (500mm), 23 1/2" (600mm)

Screen Width

9.5" (240mm), 7" (180mm)
