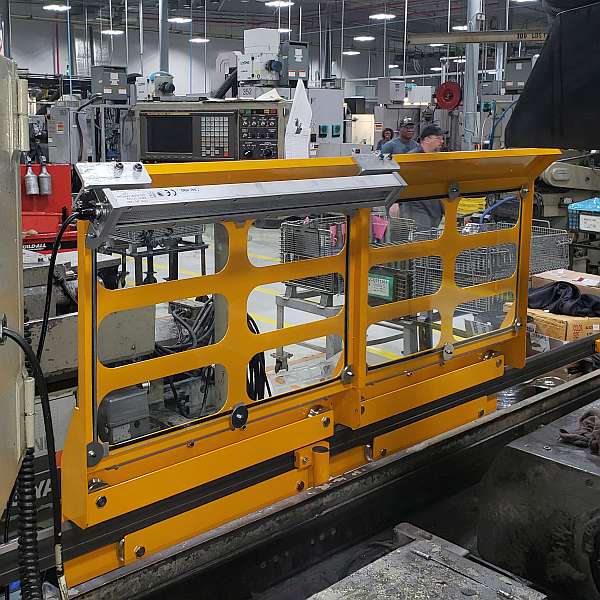

Sliding door machine guard installed on a cylindrical grinder.

CNC Bed-Type Milling Machine Safety Guarding with Interlocking

Name: CNC Bed-Type Milling Machine Safety Guarding with Interlocking
Brand: Ferndale Safety
SKU: PR2
Availability: InStock

From: $2,920.00

Safety guarding for CNC bed-type mills or larger cylindrical grinders.

We also have a single-door version of this guard. Click here to view it.

Sliding doors on a front-mounted rail
Polycarbonate windows
Includes adjustable mounting brackets
Includes an interlock safety switch

Safety Switch

Electrically Interlocked

SKU: PR2

We also have a single-door version of this guard. Click here to view it.

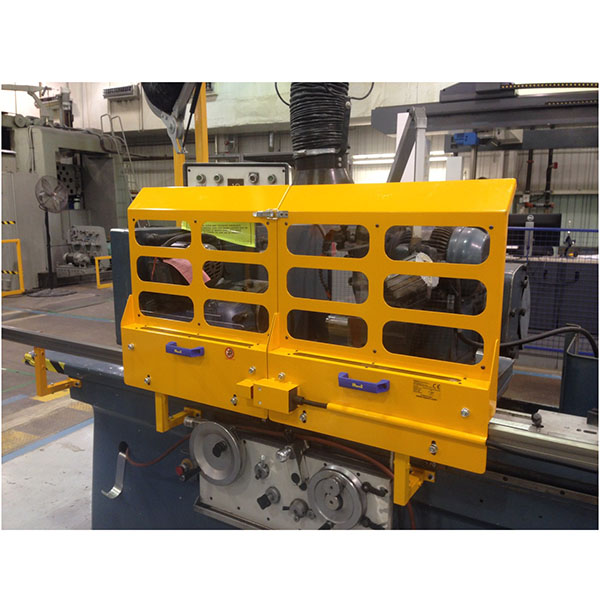

Double Door Guard – For CNC Mills

The two doors on this safety guard effectively double the protective width of our single-door cylindrical grinder safety guard. This guard works great for bed-type CNC milling machines to protect against chip, coolant, and debris ejections.

CNC Milling Machine Safety Guard

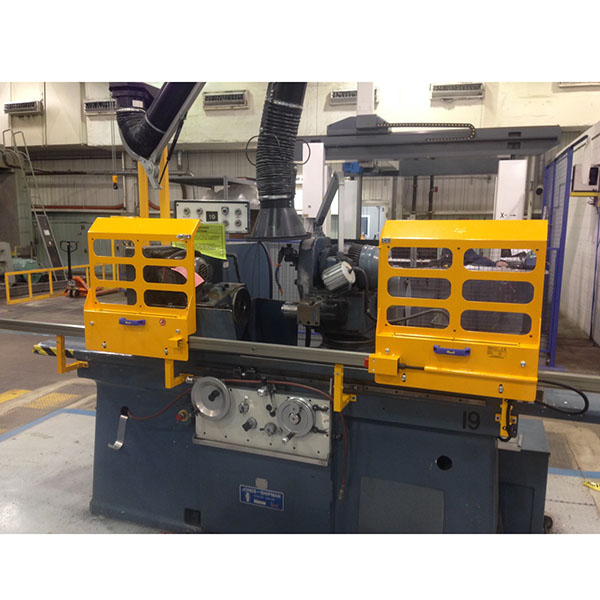

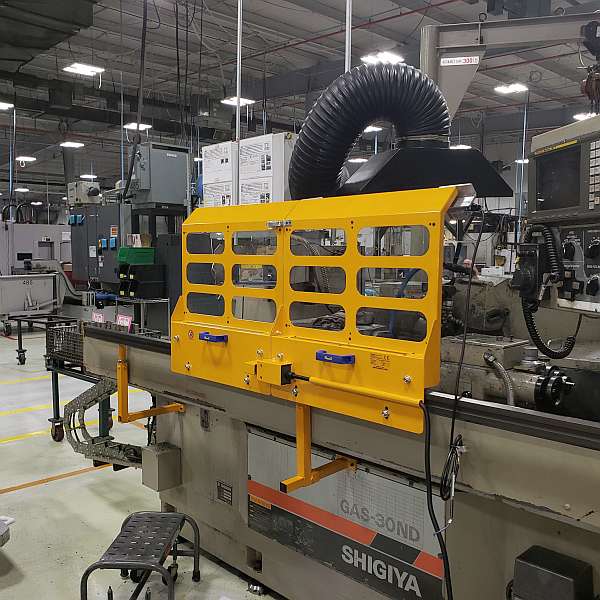

We have successfully installed these sliding door safety guards on various CNC machines, such as bed-type CNC milling machines. You can install the cylindrical grinder safety guard on other grinders, such as surface grinders.

Features

Built-in safety interlock switch with solenoid-latching lock.
The shield slides laterally on a track and roller system.
The standard door width is 1200mm (47.25”) by 665mm (26.18”) in height.
Custom-size screens are available upon request.

Additional information

Manufacturer	Ferndale Safety
Brand	Ferndale Safety
Has interlock switch	Yes (With Interlock)
Product color	Ferndale Yellow
Product Features	Bolt-on, Polycarbonate, Replaceable screen or shield

Weight	N/A
Dimensions	N/A
Track Length	118" (3000mm), 157.5" (4000mm), 197" (5000mm)

Installation Manual

Installation Manual for Ferndale Safety Model PR-1 & PR-2

Disclaimer: By purchasing Our Products, you agree not to use them for "hot work" (e.g., grinding, welding, soldering, cutting) due to fire risk. Misuse is forbidden, and following all safety guidelines is required. Non-compliance means you accept full responsibility for any resulting harm or damage. For your safety and the effectiveness of Our machine guarding, remain within the "Safe Work Zone" directly in front of the guarding. Standing to the side increases injury risk and breaches our usage policy. Adhering to this rule ensures your safety and the Products optimal performance. For detailed safety and operational guidelines, please see our Terms and Conditions. (click here)
