Three-Button Control Station w/ Start, Stop & Emergency Stop Buttons

$254.00

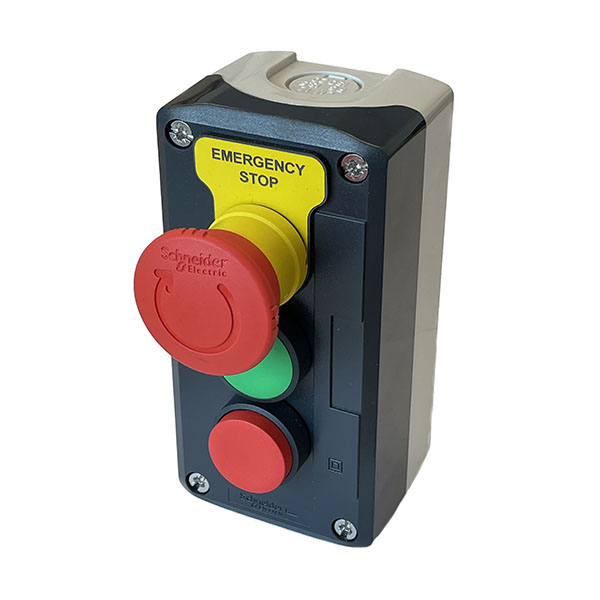

A three-button control station in a plastic enclosure.  Includes an emergency stop button with a yellow background label, a green “start” button, and a red “stop” button.

Temporarily out of stock. This item is currently not in stock but it is available for ordering. An e-mail will be sent to you with the expected delivery date

More on the way! We have 7 units on the way. Estimated ETA: 12/06/2021

Frequently Bought Together

Anti-Restart Protection - 3-Phase 208v/220v, 440v/480v, 550v/600v

Used for adding E-Stop and anti-restart protection, this 3-phase motor starter panel is ideal for machines such as millings machines and lathes.

*Actual product may differ from photos shown.

SKU: STARTER-HV-3B

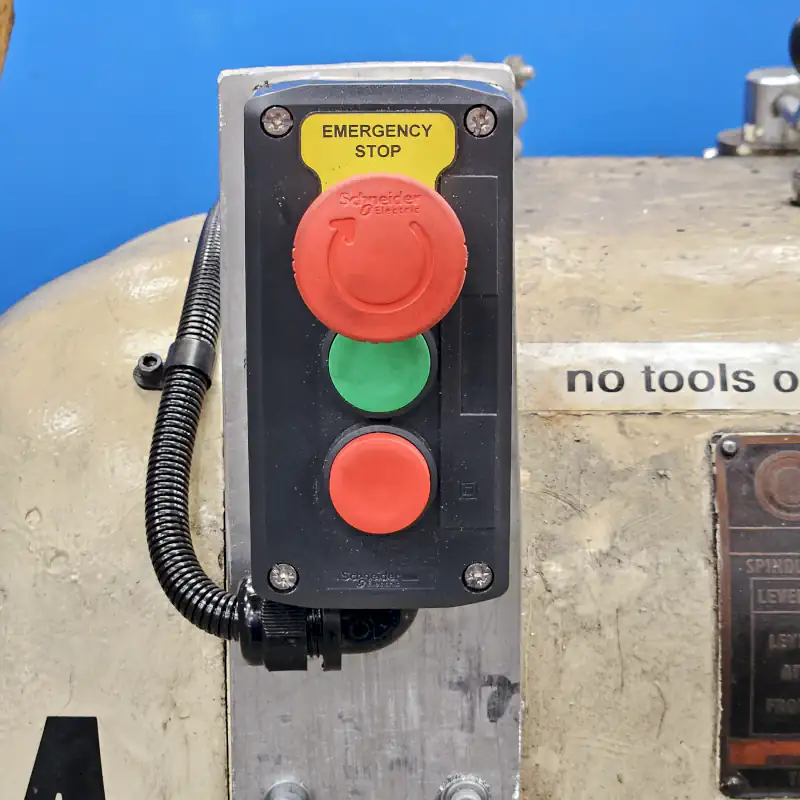

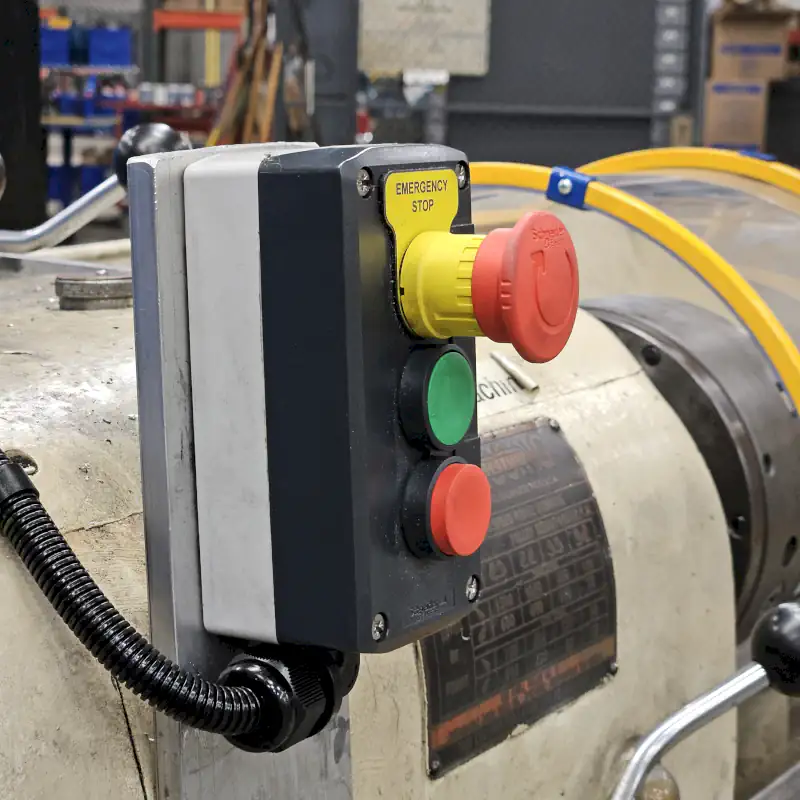

This three-button control station is used to control motors on machinery.  These can be used on devices that only have physical on/off switches or as a secondary control station on big machines.

NOTE: DO NOT CONNECT THIS PRODUCT DIRECTLY TO A MOTOR.  YOU MUST CONNECT IT TO A LOW-VOLTAGE CONTROL CIRCUIT.

This control station is most often used with our 3-phase anti-restart panel.  Click here to find out more about it.

Ferndale Safety 3-Button Control Station

  • Polycarbonate plastic enclosure
  • Red twist-to-reset emergency stop button with a yellow background.
  • Green push button (flush mount)
  • Red push button (raised)

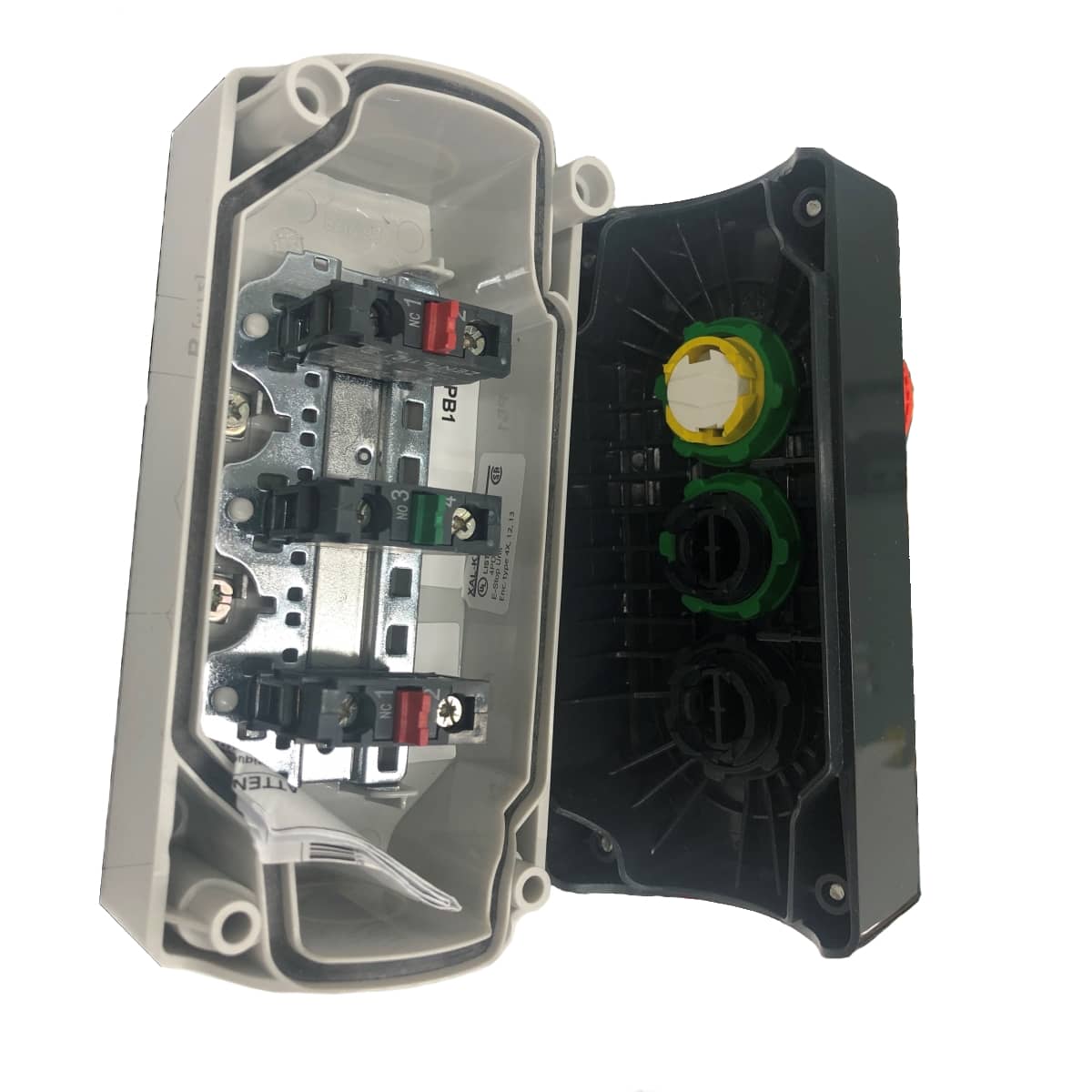

  • 1 NC contact for E-Stop button
  • 1 NC contact for the red button.
  • 1 NO contact for the green button.

Technical Characteristics

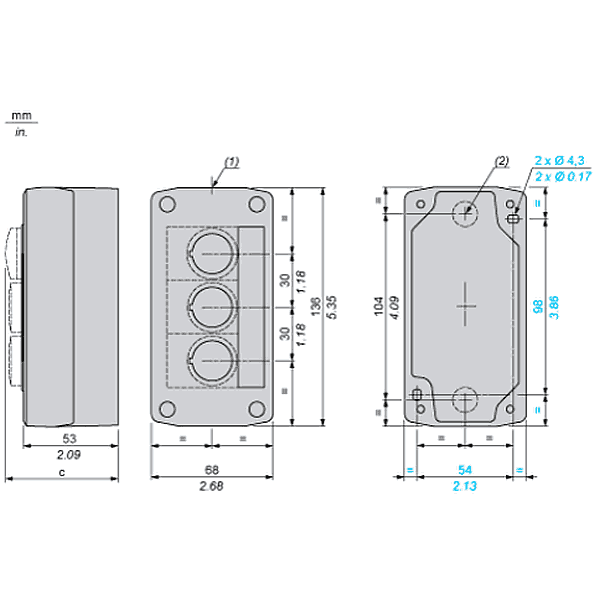

Dimensions of the three-button control station.

[Ie] rated operational current
3 A at 240 V, AC-15, A600 conforming to EN/IEC 60947-5-1
6 A at 120 V, AC-15, A600 conforming to EN/IEC 60947-5-1
0.1 A at 600 V, DC-13, Q600 conforming to EN/IEC 60947-5-1
0.27 A at 250 V, DC-13, Q600 conforming to EN/IEC 60947-5-1
0.55 A at 125 V, DC-13, Q600 conforming to EN/IEC 60947-5-1
1.2 A at 600 V, AC-15, A600 conforming to EN/IEC 60947-5-1
IP degree of protection
IP66 conforming to IEC 60529
IP67
IP69
IP69K

For more information on the contacts, click here.

For more information on the enclosure, click here.

Product Variations

Note: Use the selection boxes above to see specific information here.

Weight 3 lbs
Dimensions 6 × 4 × 4 in
