Emergency Stop Control Station

$126.00

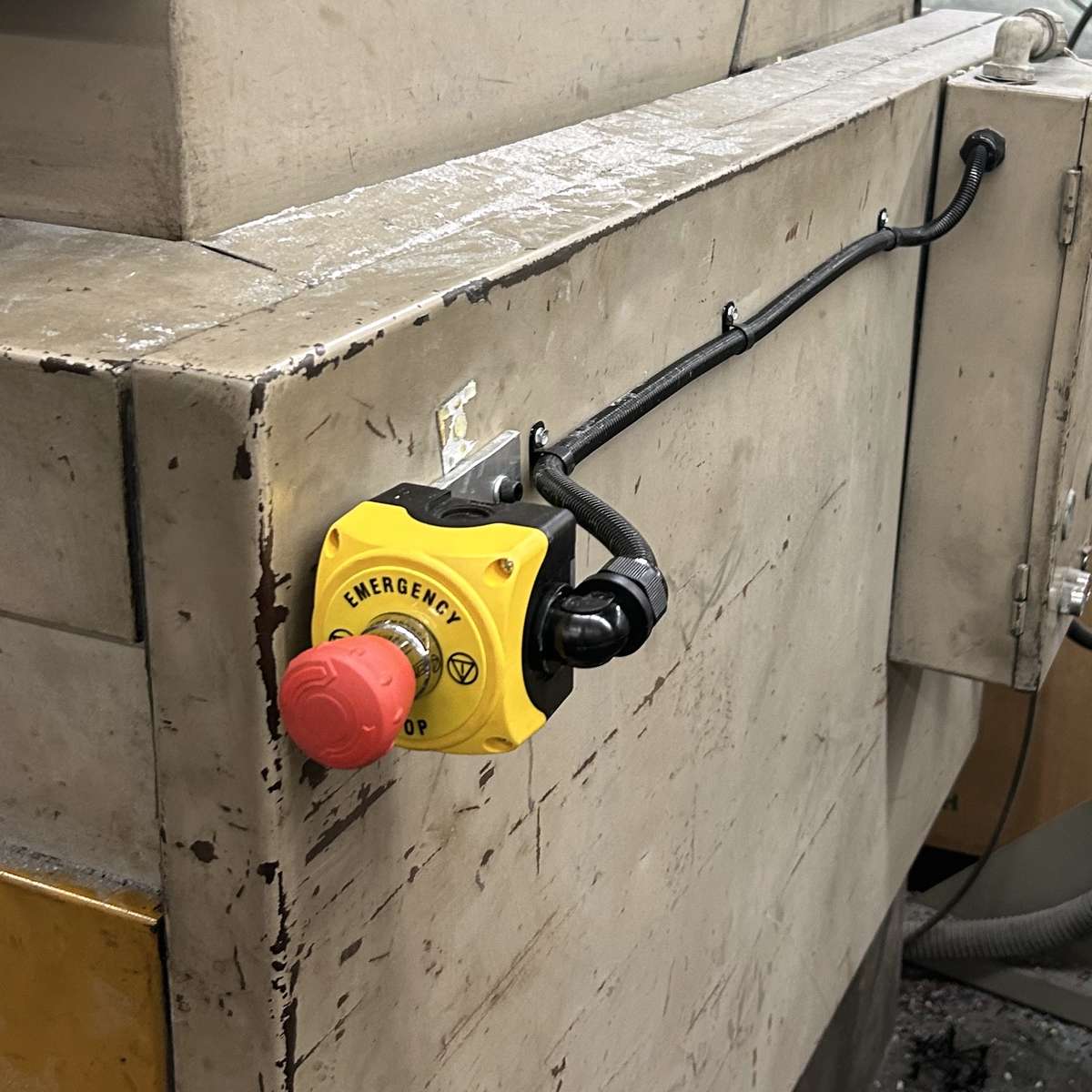

Add an emergency stop button or replace one that is broken on machinery.

Complete emergency stop station with button, enclosure, and NC contact.

Temporarily out of stock.

This item is currently not in stock but it is available for ordering. An e-mail will be sent to you with the expected delivery date

Frequently Bought Together

Installation Kit for Safety Shields

This handy kit contains the small hardware needed to install Ferndale Safety products.

SKU: ESTOP-EN

Emergency Stop Control Station

  • Type of product: Complete control stations
  • Type of actuator: Mushroom head pushbutton
  • Color: Yellow & black enclosure, red button
  • Latching mechanism: Turn to release
  • Housing material: Polycarbonate
  • N° of actuators: 1 (NC)
  • Degree of protection: IP66, IP67, IP69K

Certifications and compliance

Compliance: CSA C22.2 n° 14, IEC/EN 60947-1, IEC/EN 60947-5-1, UL508
Certificates: cULus, EAC

Add an Emergency Stop Button

It is essential to have safety devices such as emergency stop buttons (more commonly called the E-Stop buttons) installed on machines such as lathes, milling machines, or even drill presses.

We highly recommend reading Doug Nix’s article, “Emergency Stop – What’s so confusing about that?” where he details what an E-Stop is and what it does.

You should add a standardized E-Stop button on every machine.  Ferndale Safety even recommends installing these buttons on drill presses and bench grinders.  Why?  A standard twist-release E-stop button with a yellow background should be recognizable by anybody working in an industrial setting near machinery.  Some machines have many buttons that, over time, have had their identification labels rubbed off.  If an emergency occurs where a person that is not familiar with the device needs to shut it down, an E-stop button that is within reach and visible can be the one thing that saves the day.

Where to Install an E-Stop?

Install emergency stop buttons within easy reach of where the operator would need to be.  Think of places such as cleanout doors, chip conveyors, or behind machines.  You should have one everywhere where an operator might be.  For smaller tools, just one e-stop is sufficient.

Installation & Precautions

Below is an example diagram of where you could wire an E-Stop into a standard machine tool such as a drill press.  Note: Don’t install these buttons directly in series with the motor circuit.  It must be installed only in series with the control circuit.

E-stop example circuit


Product Variations

Note: Use the selection boxes above to see specific information here.

Weight .25 lbs
Dimensions 4 × 3.25 × 3.25 in
Brand

Lovato Electric

Manufacturer

Lovato Electric
