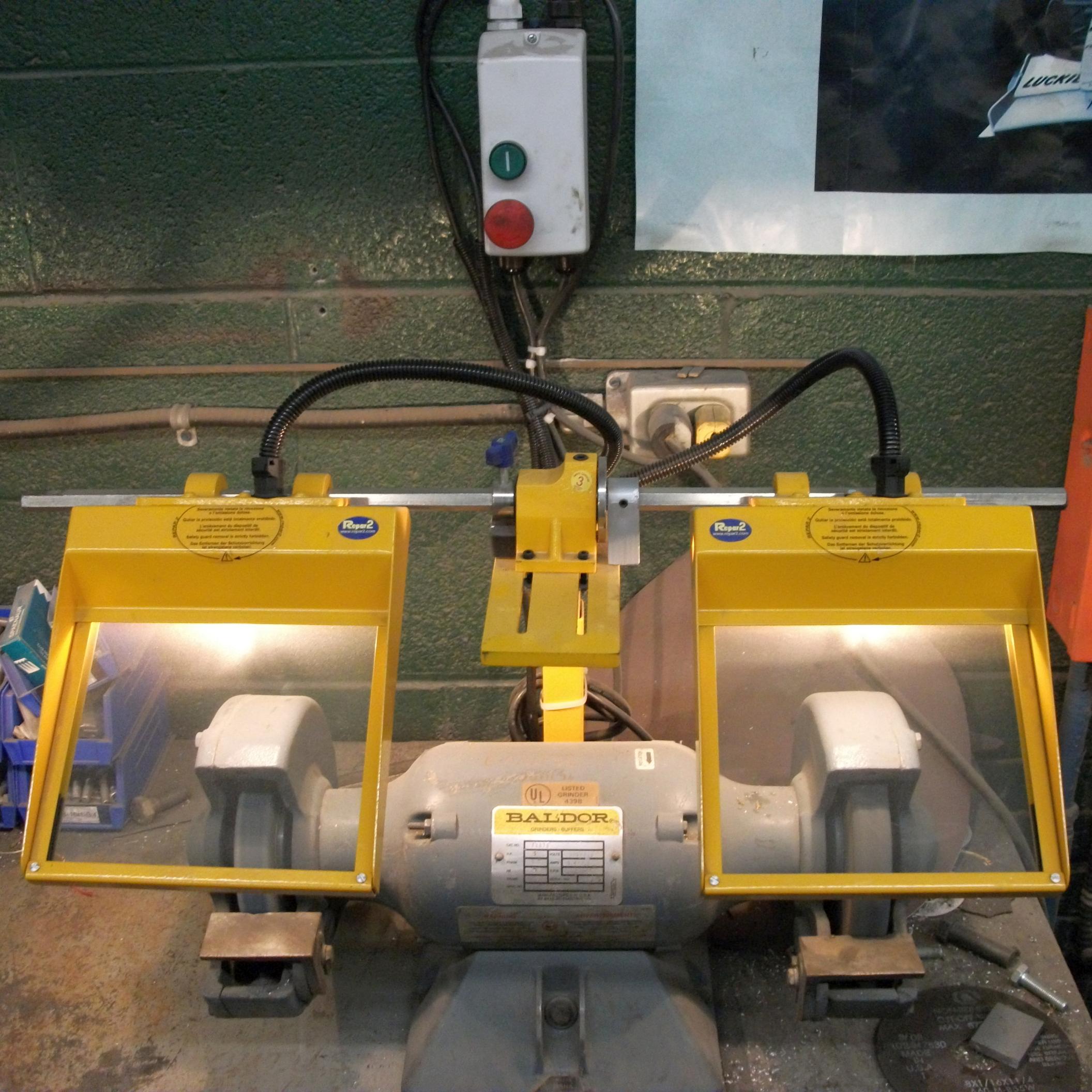

Bench Grinder Guard, with Interlock Switch and Safety Glass

From: $1,253.00

Our premium safety guard for bench and pedestal grinders.

  • Comes with a pair(2) of glass shields.
  • Includes safety interlock switch
  • 7″ x 5-7/8″ Transparent window
  • Rear bottom mounting bracket
  • Adjustable position up/down, back/forward
  • Optional LED work lights
Safety Switch
Electrically Interlocked
Work Light
Available w/ LED Lights
Safety Glass
Laminated Glass

Bench Grinder Guard Mounting Plate

Industrial Bench Grinder Stand, Super Heavy-Duty

Installation Kit for Safety Shields


Want the best bench grinder safety guard available? The guards that initially come with your bench grinder are flimsy. OEM manufacturers include guards made of cheap plastic that are extremely small! Grinders make a lot of sparks and heat that destroy these small shields. The result is that these safety shields are removed or flipped out of the way because they are unusable.

The solution is Ferndale Safety’s premium line of bench grinder safety guards. These guards will last longer than the grinder that is under them. They are built to survive in a harsh industrial environment for years.

You will also find a supersized version of this guard (click here)

Bench Grinder Safety Guard Features

  • Laminated glass shields – Superior abrasion resistance
  • Optional bright LED work lights are built-in
  • Huge viewing windows –  7″ x 5-7/8″ (With steel frame: 8″ x 9.5″)
  • Electrical safety interlock switch and cable included.

Restart Protection

Don’t forget! You will probably need a motor starter to wire the electrical safety interlock switch included with this safety guard. The switch cannot handle the amount of power the motor takes. If in doubt, contact us; we will gladly help you.

New Brake System

This bench grinder brake reduces your stop time from minutes to seconds. It also electronically stops your bench grinder from coasting for long periods. Click here to find out more!

Additional information

Weight N/A
Dimensions N/A
LED Option

With LED, No LED


Ferndale Safety


Ferndale Safety

Has interlock switch

Yes (With Interlock)

Product color

Clear, Ferndale Yellow

Product Features

Bolt-on, Laminated Glass, LED Work Light, Replaceable screen or shield, Adjustable

Disclaimer: By purchasing Our Products, you agree not to use them for "hot work" (e.g., grinding, welding, soldering, cutting) due to fire risk. Misuse is forbidden, and following all safety guidelines is required. Non-compliance means you accept full responsibility for any resulting harm or damage. For your safety and the effectiveness of Our machine guarding, remain within the "Safe Work Zone" directly in front of the guarding. Standing to the side increases injury risk and breaches our usage policy. Adhering to this rule ensures your safety and the Products optimal performance. For detailed safety and operational guidelines, please see our Terms and Conditions. (click here)
