• TR7 interlocked drill press safety shield

TR-7 – Extended stroke

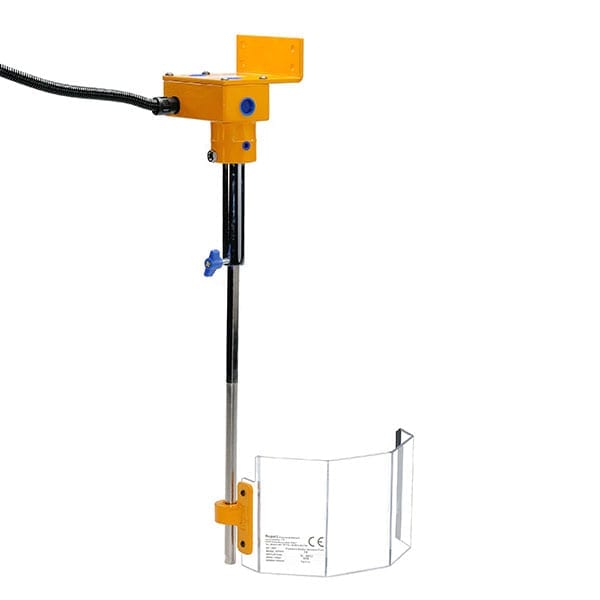

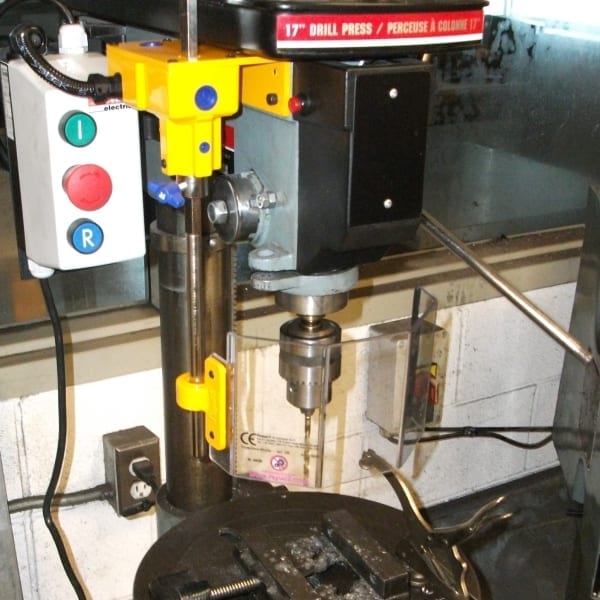

The TR-7 is the same type of guard as the TR-2, with a longer adjustable arm stroke. Great for drill presses with long spindles.

The rod is extended by about 7.5” compared to the model TR-2.

Polycarbonate shield, adjustable and swings open to the left.

Easy installation, with mounting bracket built-in.

Electrical interlock switch.

Shield size: 200mm x 130″ (approx. 8″ x 5″)

Vertical adjustment: approx. 6″

Replacement screens available.

Clear
SKU: TR-7

Product Features

The TR-7 is the same type of guard as the TR-2, with a longer adjustable arm stroke. Great for drill presses with long spindles. The rod is extended by about 7.5” compared to the model TR-2. The screen is made out of impact resistant polycarbonate (Lexan™) material.  Polycarbonate is well known for its high impact strength.  Most importantly, this safety guard includes a built-in electrical safety interlock switch which is tamper resistant.  The safety interlock switch ensures that the safety guard is in place before the machine can be operated.

This guard will help prevent ejections from accidentally leaving chuck keys inside the drill chucks.  Customers can also buy self-ejecting chuck keys for added safety.  Click here to see our chuck key selection.

These shields meet or exceed OSHA, ANSI and CSA standards for machine safety guarding.


Easy Installation

Installation hardware and tools not included.  We offer a separate installation kit that includes tools and hardware necessary for installation of this safety product.

You can buy the installation kit by clicking on the following link: Click here for the installation kit for this guard.


Why Have Safety Interlocking?

An electrical safety interlock prevents the machine from operating when the shield is opened.  This safety guard features an electric switch that disables the machine’s motor.  The switch is made in such a way as to prevents easy bypass of the interlock switch.

When we do on-site visits, we often see safety shields moved to the side and never put back on the machine.  An interlock is a simple solution to prevention of safety guard misuse or removal.

Product Variations

Interlock Switch

With interlock switch, Without interlock switch
