EXT-SG – Surface Grinder Safety Guard

$2,588.00

Custom-built surface grinder safety guard with built-in safety interlock switches.  It includes sliding doors and all-around polycarbonate windows.

Lead time: 2-4 weeks.  Please get in touch with us for updated lead times.

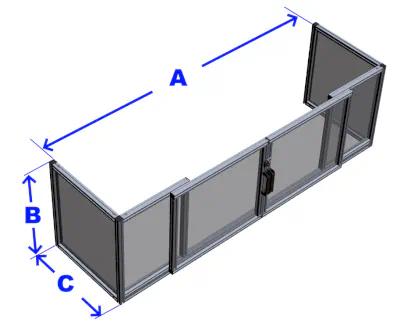

Surface grinder ordering dimensions with arrows

Temporarily out of stock.

This item is currently not in stock but it is available for ordering. An e-mail will be sent to you with the expected delivery date

SKU: EXT-SG

Surface Grinder Safety Guard Features

This surface grinder safety guard prevents projections like wheel fragments or workpieces.  It will prevent projections from hurting anyone standing nearby while the machine runs.

  • Large, clear windows for high visibility
  • Impact-resistant polycarbonate windows.
  • Lightweight for easy installation.
  • The built-in safety interlock switch ensures conformity.
  • Custom-made to fit your machine.
  • Doors slide open.  Available with roller bearings or drawer slides.
  • Doors are locked in place with an easy-to-use latch.

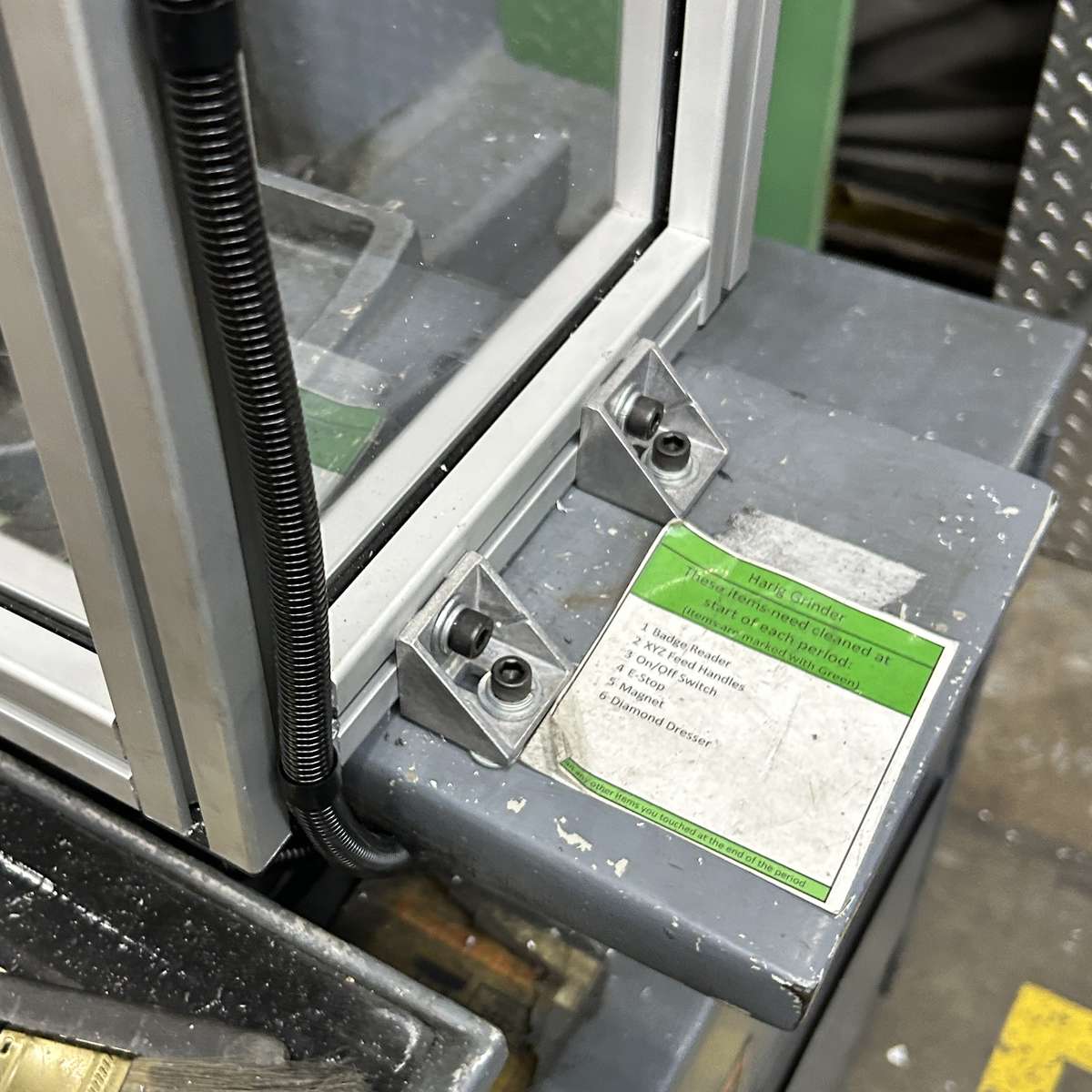

  • Mounts directly on the table or machine

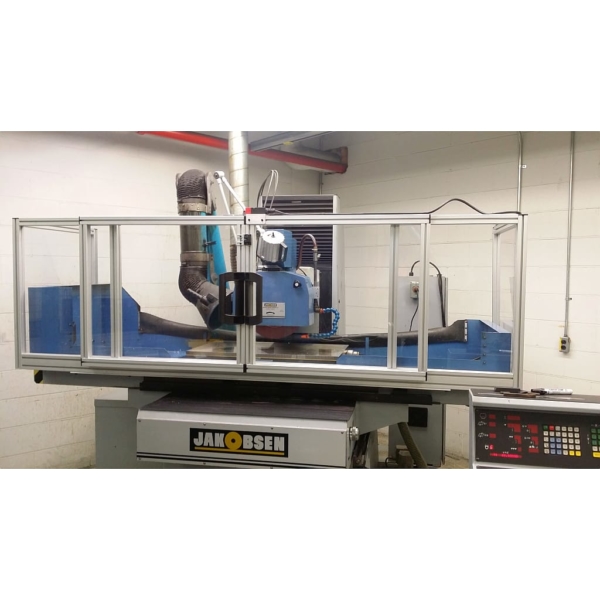

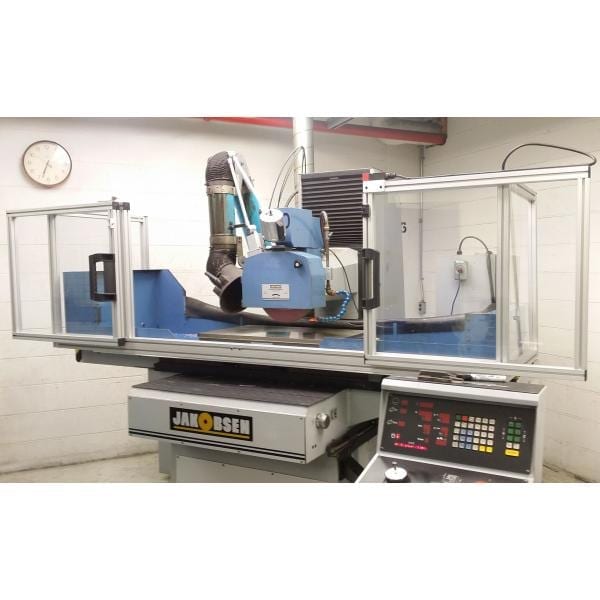

To build this guard, we need three measurements: A, B & C (See the photo below)A Surface grinder safety guard with sliding doors. Attached directly to table.

Why Safeguard Your Surface Grinder?

Ferndale Safety developed this surface grinder safety guard to prevent ejections from the work area.  Two things could happen:

A) The wheel could shatter or explode due to the:

  • Stresses on the grinding wheel, such as connecting to a workpiece too fast or too hard
  • A wheel imbalance could be due to coolant pooling or a defective wheel.
  • An internal defect, such as a hairline crack, could cause the wheel to shatter.  An old wheel could also cause this.

When the wheel explodes, it turns at a high speed and can throw fragments at a high speed.

B) A thrown object or part can be caused by:

  • The magnetic chuck left “off” accidentally
  • The wheel could grab a loose or improperly positioned piece.

This surface grinder safety guard prevents ejections for the above scenarios and protects you and anybody in the immediate area.

Important Information

Please take a look at our backsplash wall to provide a rear barrier.  This guard only protects the front and sides of the work area and grinding wheel.

Please take note that this is a custom-made product to your specifications.  All sales are final, with no returns or exchanges.

Product Variations

Note: Use the selection boxes above to see specific information here.

Weight 300 lbs
Dimensions 96 × 48 × 30 in
"A" Dimension

Up to 40", 41" to 60", 61" to 80"

Manufacturer

Ferndale Safety

Brand

Ferndale Safety
