Horizontal Boring Mill Safety Guard

From: $3,093.00

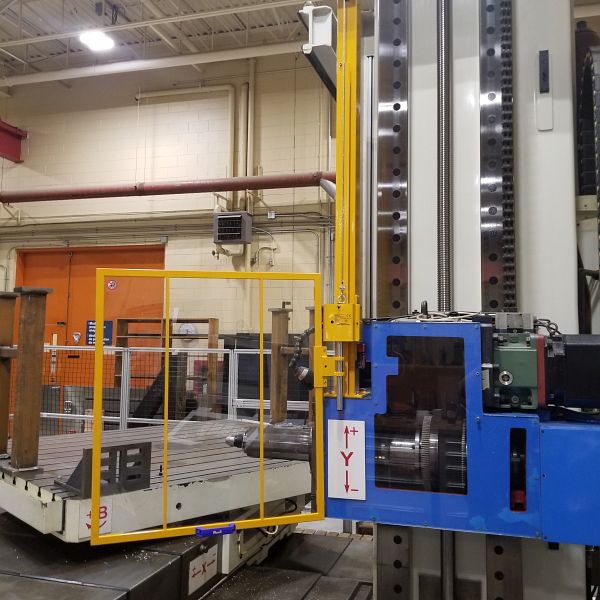

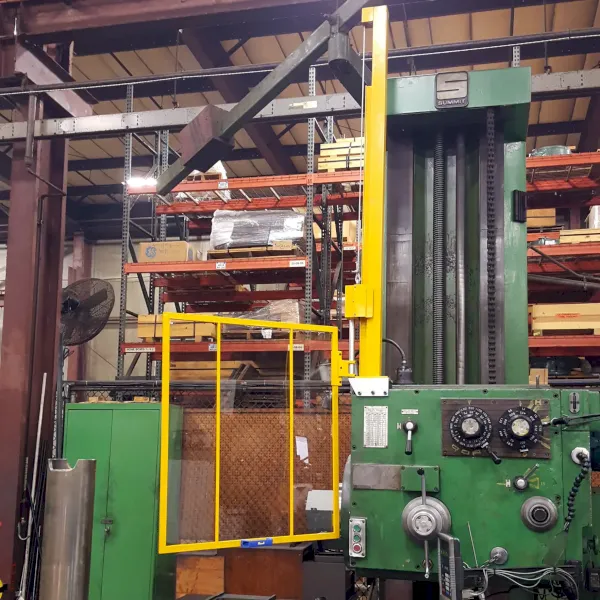

Designed for use on boring mills of any size, this boring mill safety guard is the best choice to protect yourself from hot chips and coolant spray.

Check your ceiling height! Once installed, this product could interfere with overhead cranes.

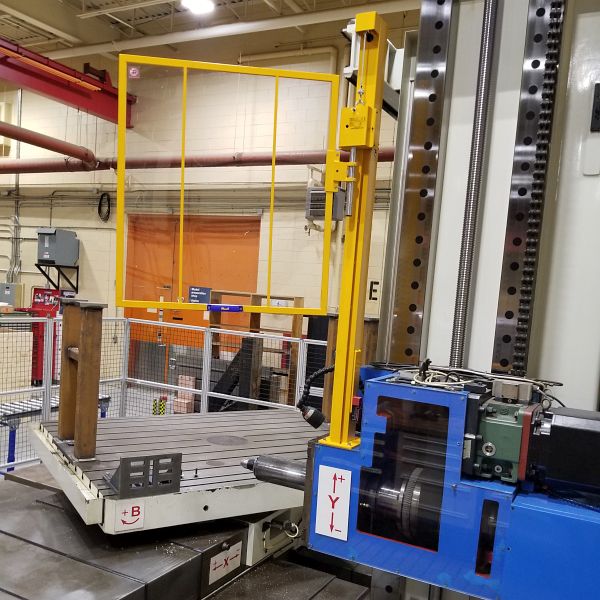

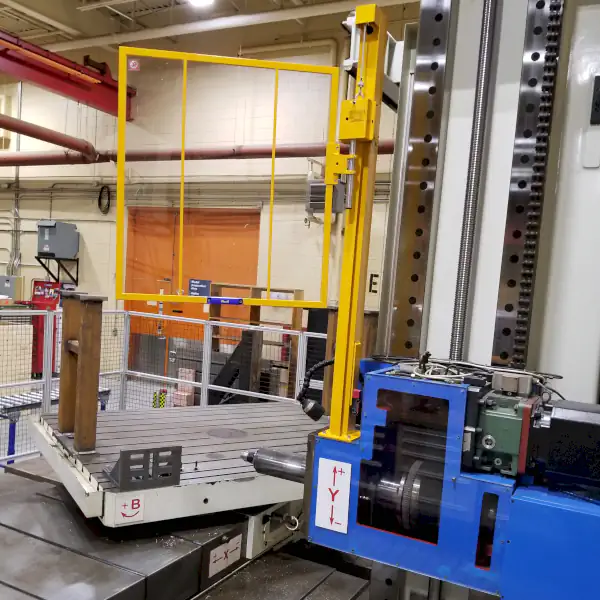

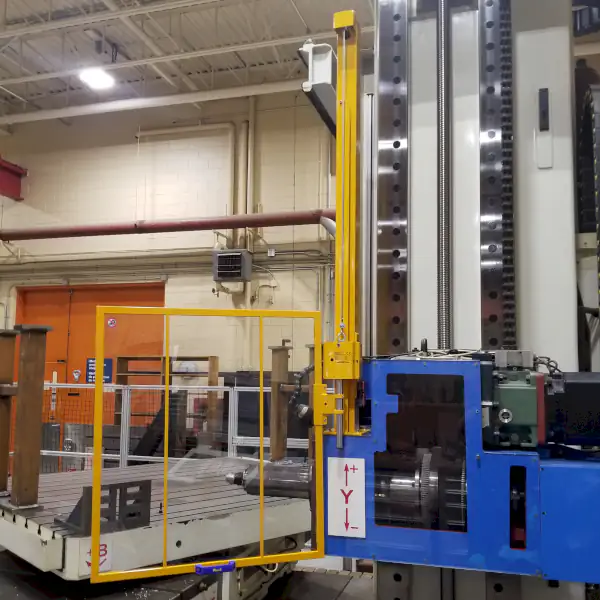

  • This guard is installed on the machine head
  • The shield rotates around a vertical axis;

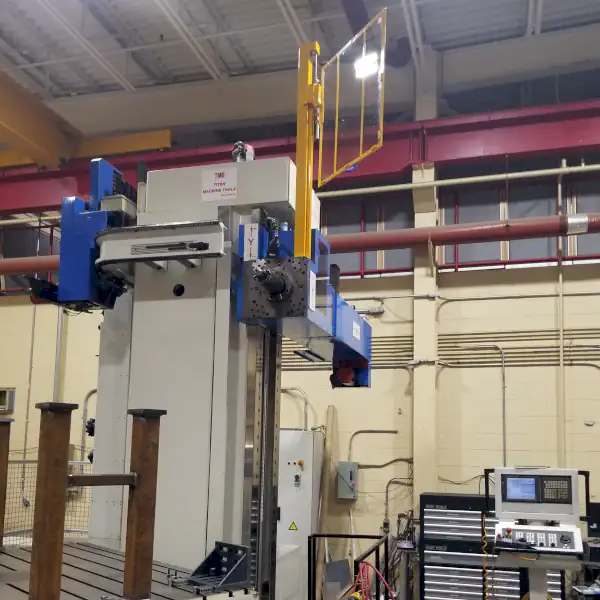

  • It can be folded flat against the face of the head
  • Slides up and down on a counterbalanced system
Safety Switch
Electrically Interlocked
Best Seller
Popular Choice!
Easy Swap
Replaceable Shield
SKU: AL

Safety Guarding for Horizontal Boring Mills

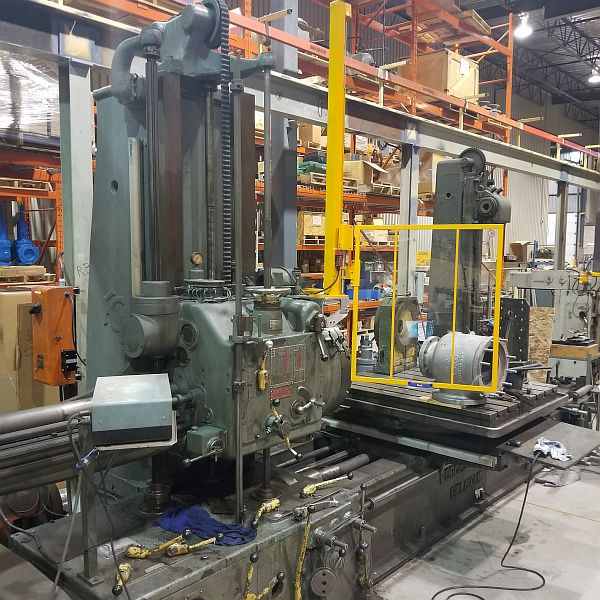

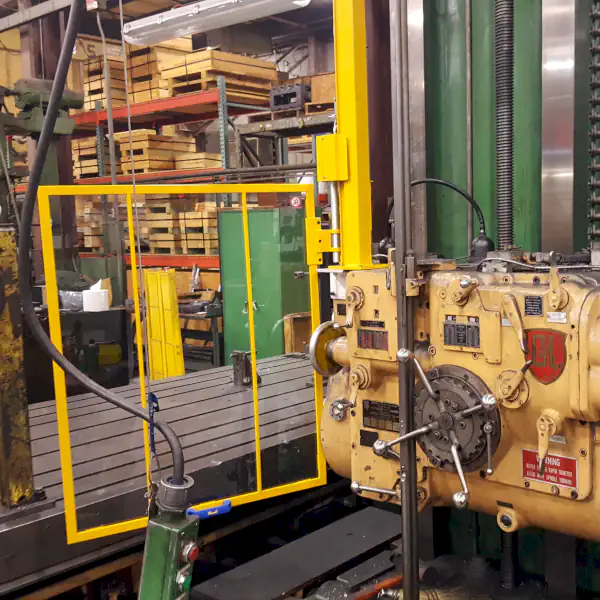

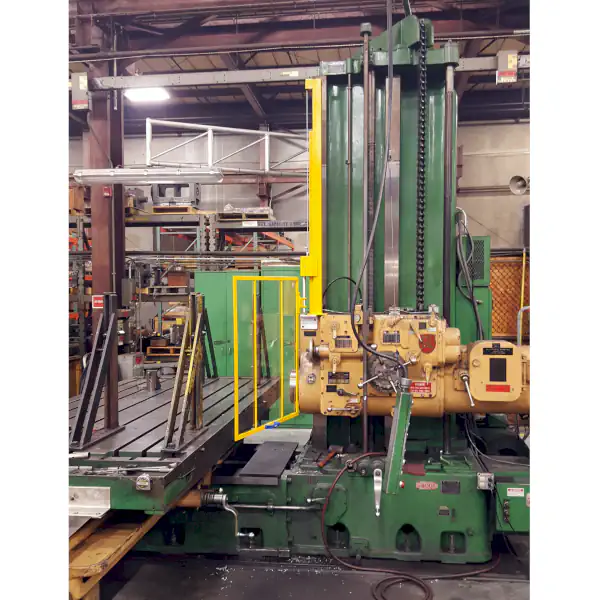

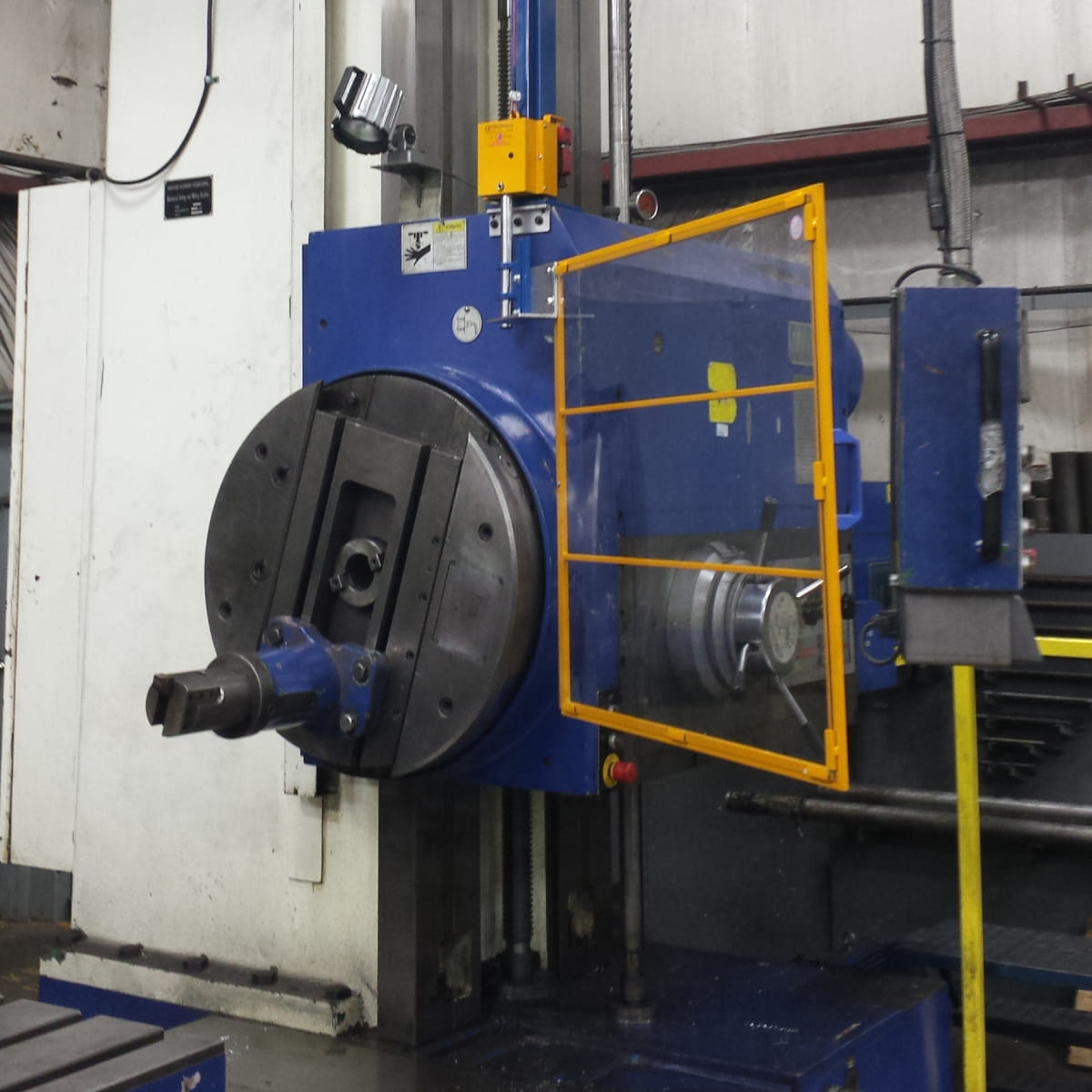

Designed for boring mills, this safety guard has a large, see-through shield to protect the operator from chips and coolant.

There are still quite a few of these horizontal boring machines today. They are used for boring and can also mill surfaces off huge parts that don’t fit on a standard milling machine. Many old boring machines still used in industry today do not have safety guards. Ferndale Safety designed these guards to take on the harsh environment around a boring machine.

Example of a horizontal boring mill without any safety guarding.

It is a boring mill with no safety guarding

Sizing Information

There are three standard sizes available. Choose the screen width and height that will suit your needs. A good rule of thumb is to measure the height of the head and choose a screen height closest to that dimension.

CUSTOM SIZES FOR THIS BORING MILL SAFETY GUARD ARE AVAILABLE. Contact us by clicking here.

P/N Screen Height (H) Screen Width (A) Post height
AL-1 900mm

(35.5”)

800mm

(31.5”)

1650mm

(65”)

AL-2 1000mm

(39.25”)

800mm

(31.5”)

1650mm

(65”)

AL-3 1200mm

(47.25”)

800mm

(31.5”)

1650mm

(65”)

Installation & Precautions

This product is heavy and should be installed by two people. Additional brackets or plates may be necessary to bolt the post properly to the head.

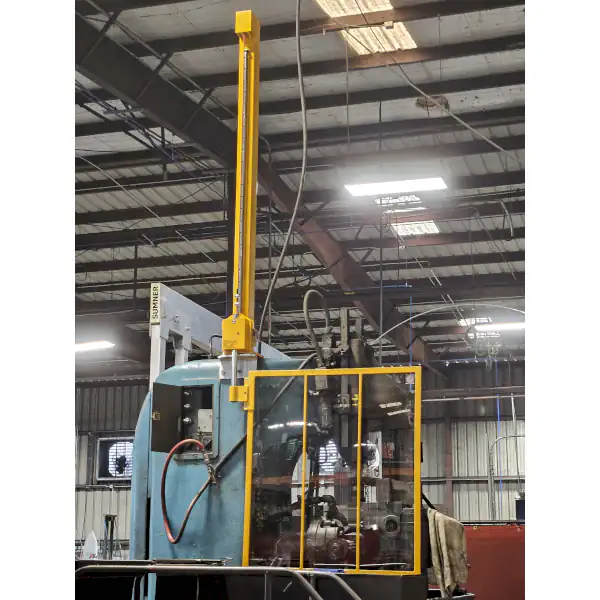

Be aware of the overall height and possible obstructions or collisions with the post. The post moves up and down with the head, which may be higher than the machine. Verify that no gantry cranes, light fixtures, ceilings, or beams will collide with the safety guard post.

Weight N/A
Dimensions N/A
Height (H)

35.5" (900mm), 39.25" (1000mm), 47.25" (1200mm)

Width (A)

31.5" (800mm)

Post height

35.5" (900mm)

Screen Size

32" x 36", 32" x 39", 32" x 47"

Manufacturer

Ferndale Safety

Brand

Ferndale Safety

Has interlock switch

Yes (With Interlock)

Product color

Clear, Ferndale Yellow

Product Features

Bolt-on, Polycarbonate, Replaceable screen or shield, Adjustable

Disclaimer: By purchasing Our Products, you agree not to use them for "hot work" (e.g., grinding, welding, soldering, cutting) due to fire risk. Misuse is forbidden, and following all safety guidelines is required. Non-compliance means you accept full responsibility for any resulting harm or damage. For your safety and the effectiveness of Our machine guarding, remain within the "Safe Work Zone" directly in front of the guarding. Standing to the side increases injury risk and breaches our usage policy. Adhering to this rule ensures your safety and the Products optimal performance. For detailed safety and operational guidelines, please see our Terms and Conditions. (click here)
