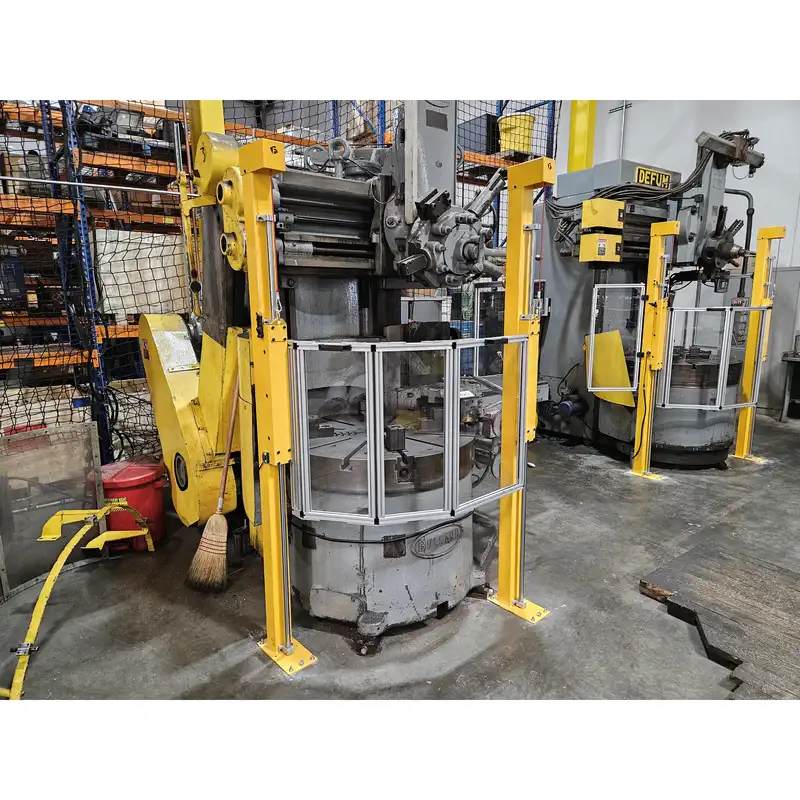

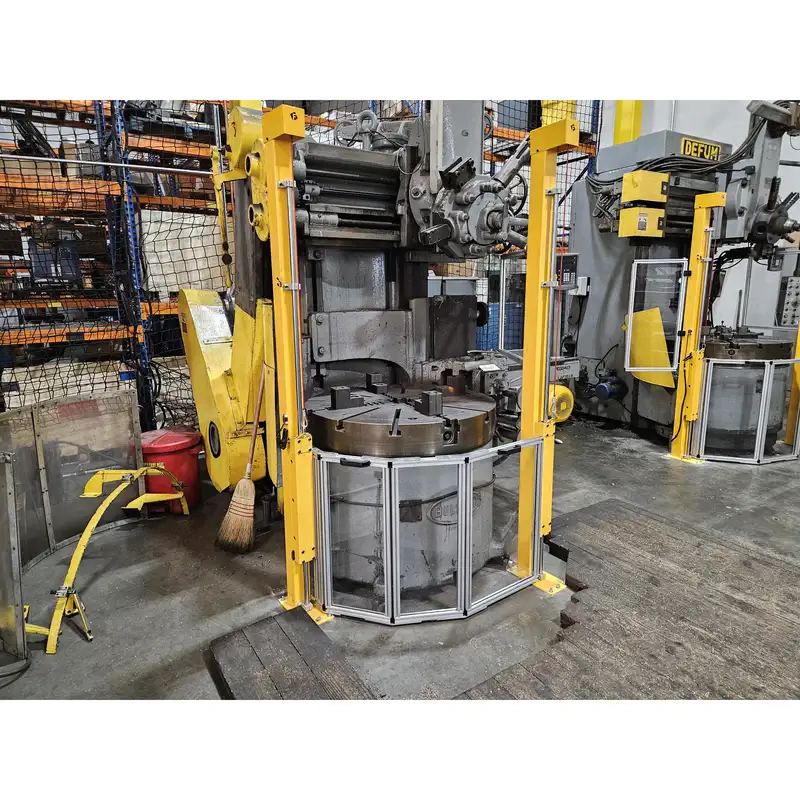

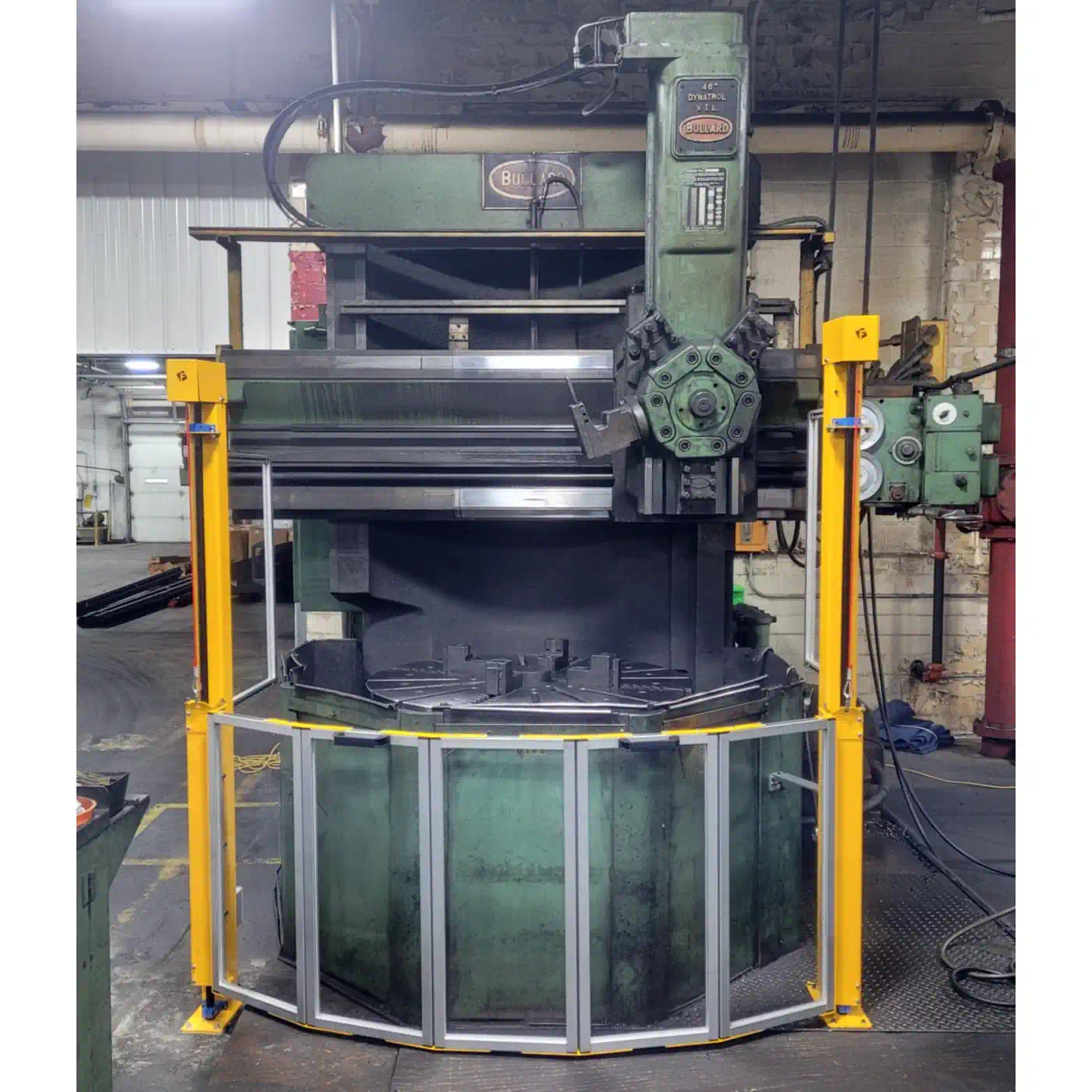

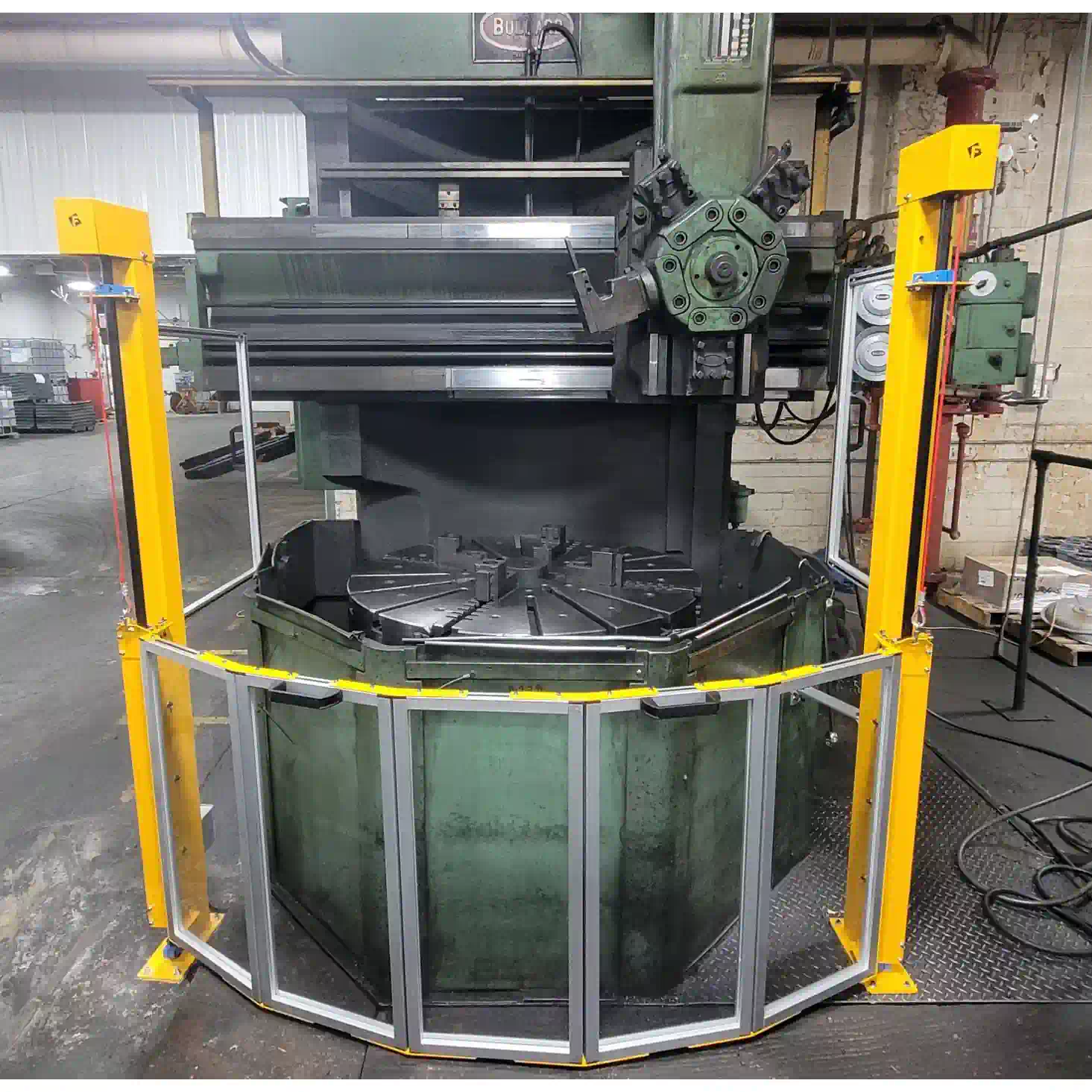

VTL safety guarding with front shield in the down position

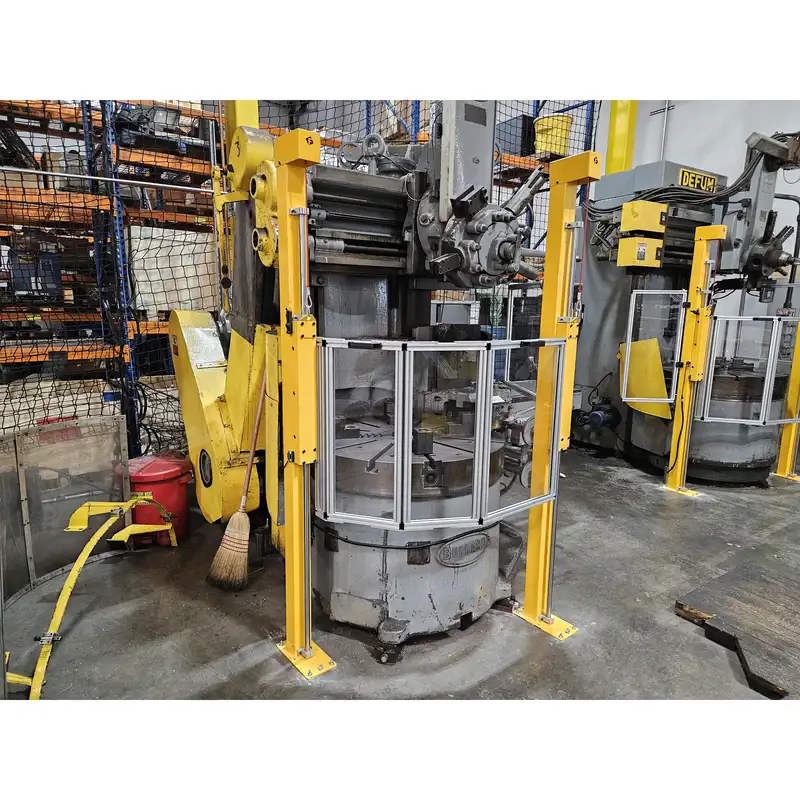

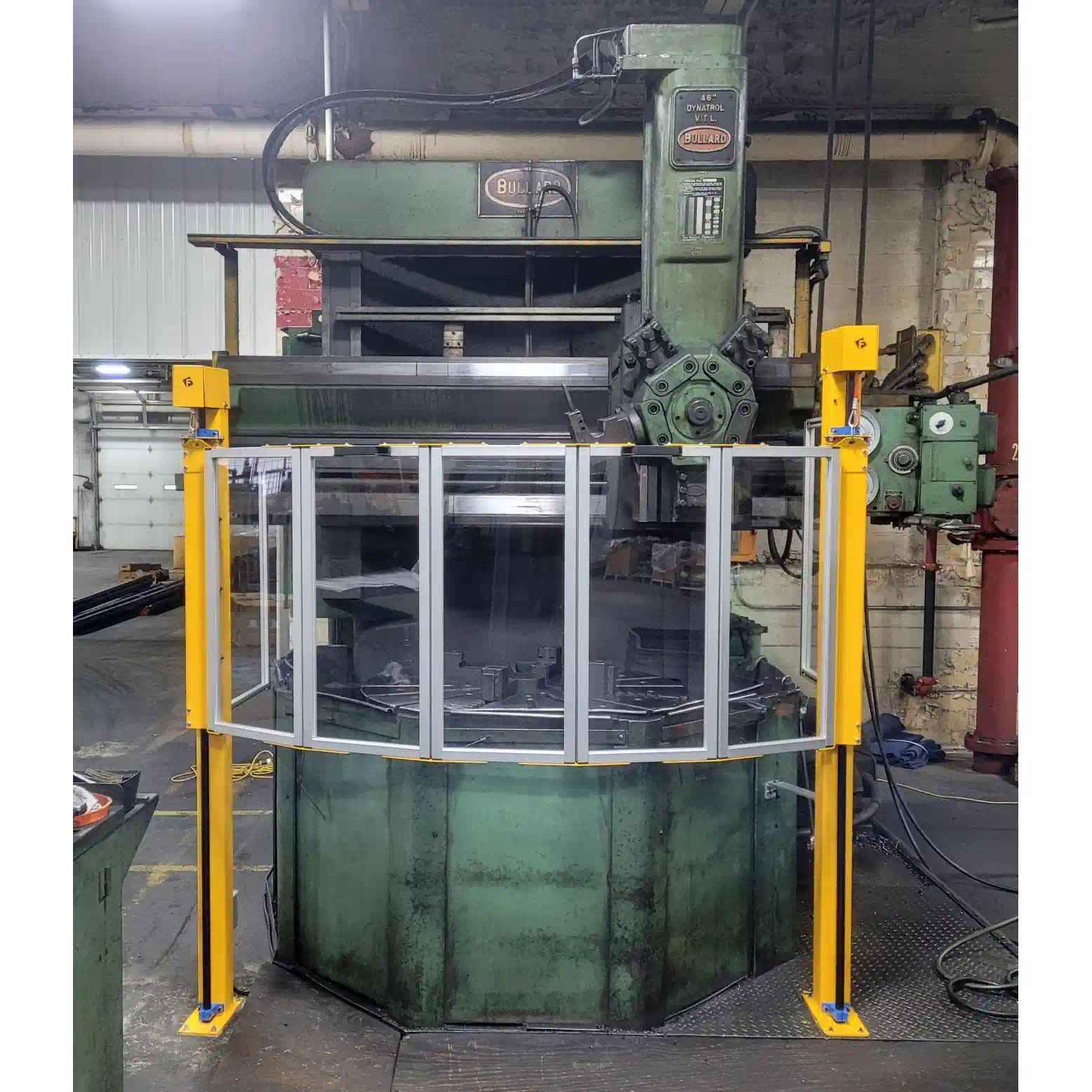

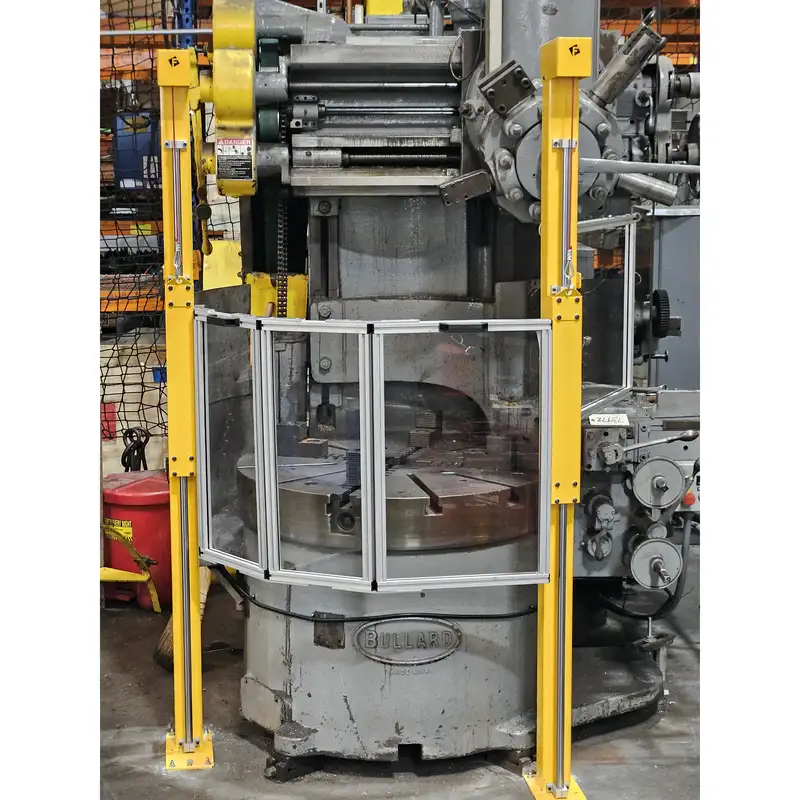

Front view of VTL safety guarding

Vertical Lathe Safety Guarding

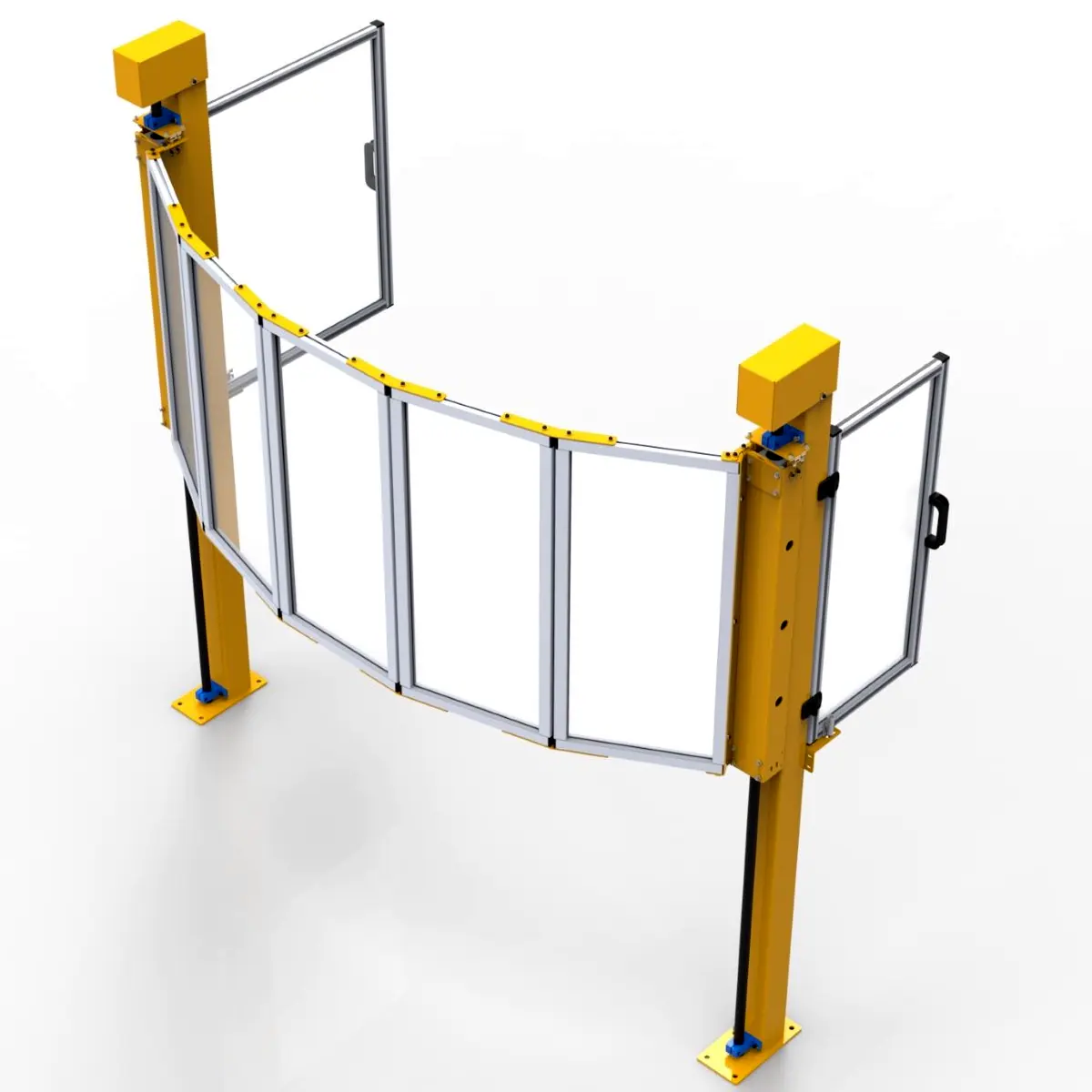

The Vertical Lathe Safety Guarding is a fully customizable safety shield for vertical turret lathes & vertical boring mills.

Protects from rotating chuck, chips, & coolant
Custom-made for your machine
Screen slide up/down with zero force
Bolts down directly to the floor

Safety Switch

Electrically Interlocked

Custom-Made

To your needs

See also our budget model TGS Vertical Lathe Guard & Chip Shield (Click here)

Note: Current lead time is 6-8 weeks

SKU: FER-LRV

Product Features

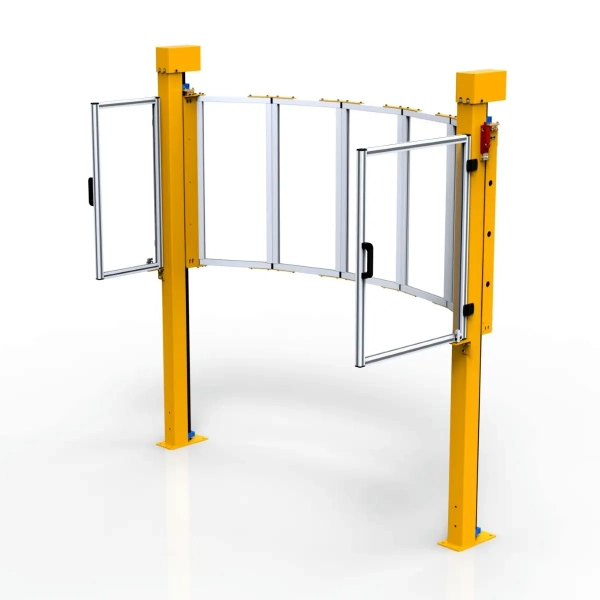

The vertical lathe safety guarding FER-LRV for vertical boring mills (VBM) and vertical turret lathes (VTL) are custom-fabricated to fit your specific machine.

Polycarbonate windows are modular and easily changeable
The screen contains any splashing coolant.
The footprint and screen profile are fully customizable
Easy to modify and reconfigure directly on-site
Self-standing posts make it easy to assemble for installation
No maintenance required

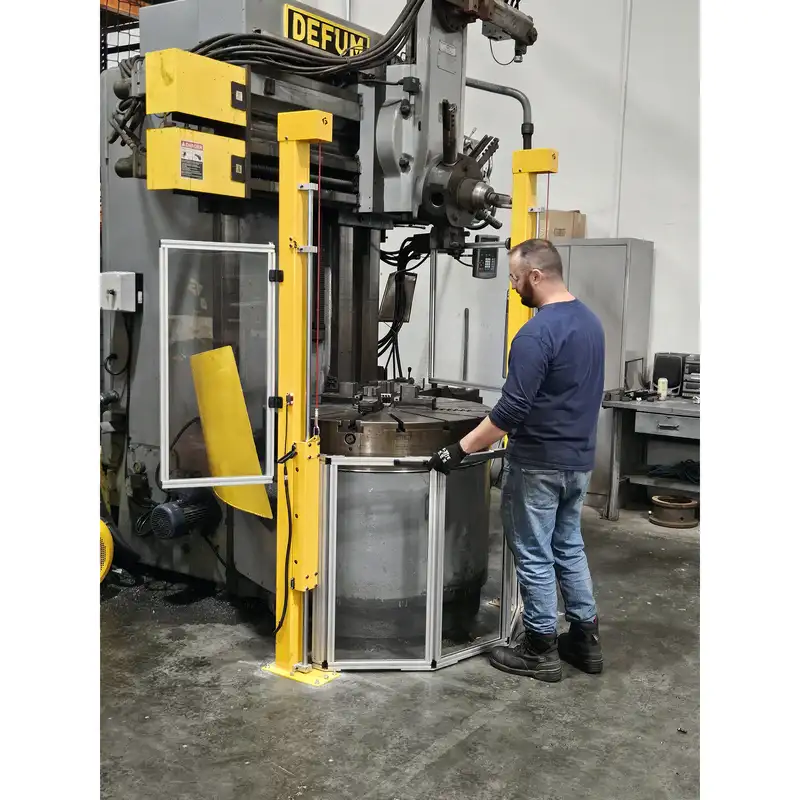

Each screen slides up/down for easy chuck access and cleaning
The heavy-duty sliding track system allows for smooth screen movement
Solid ground anchor points for fastening to the floor
The vertical lathe safety guarding includes built-in interlock switches

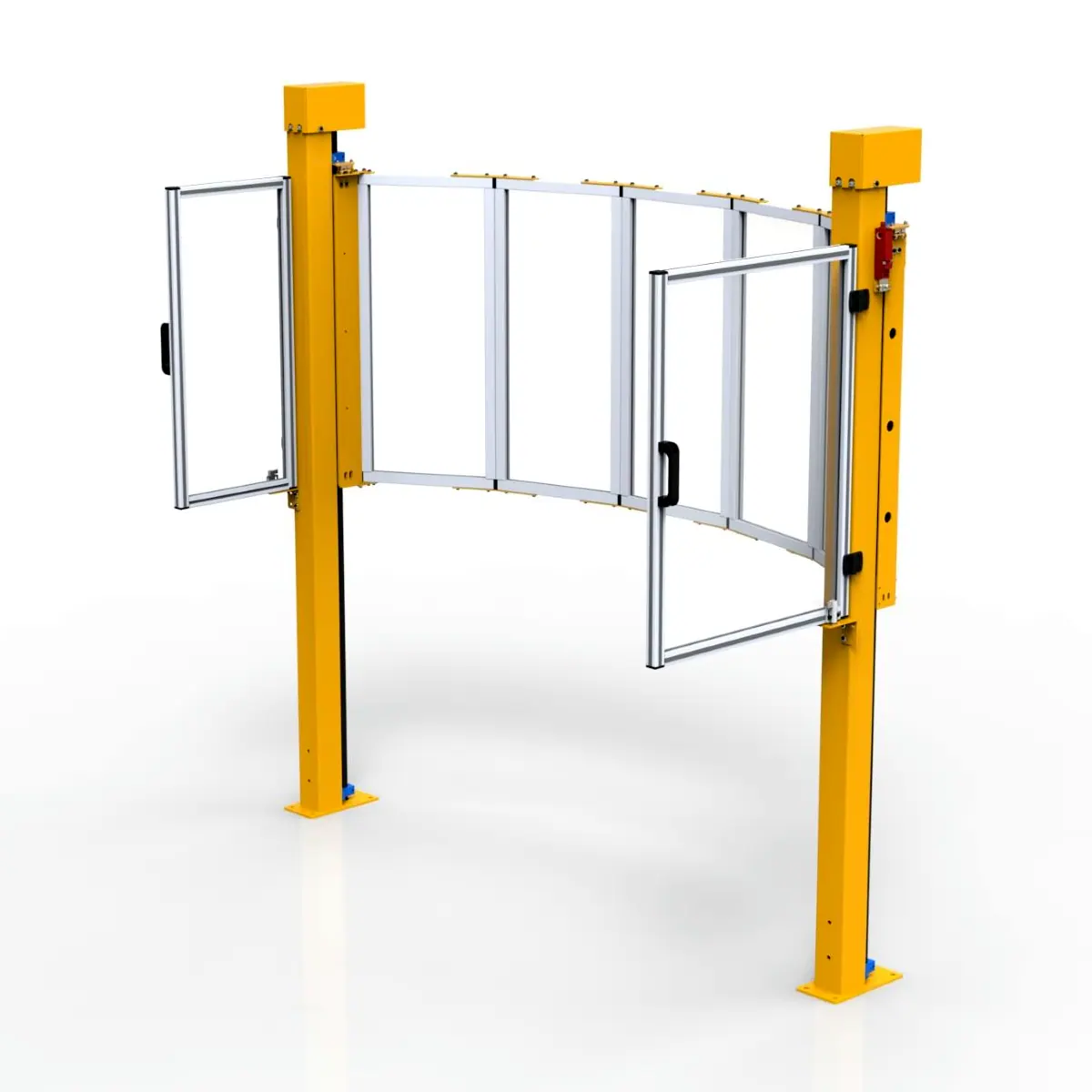

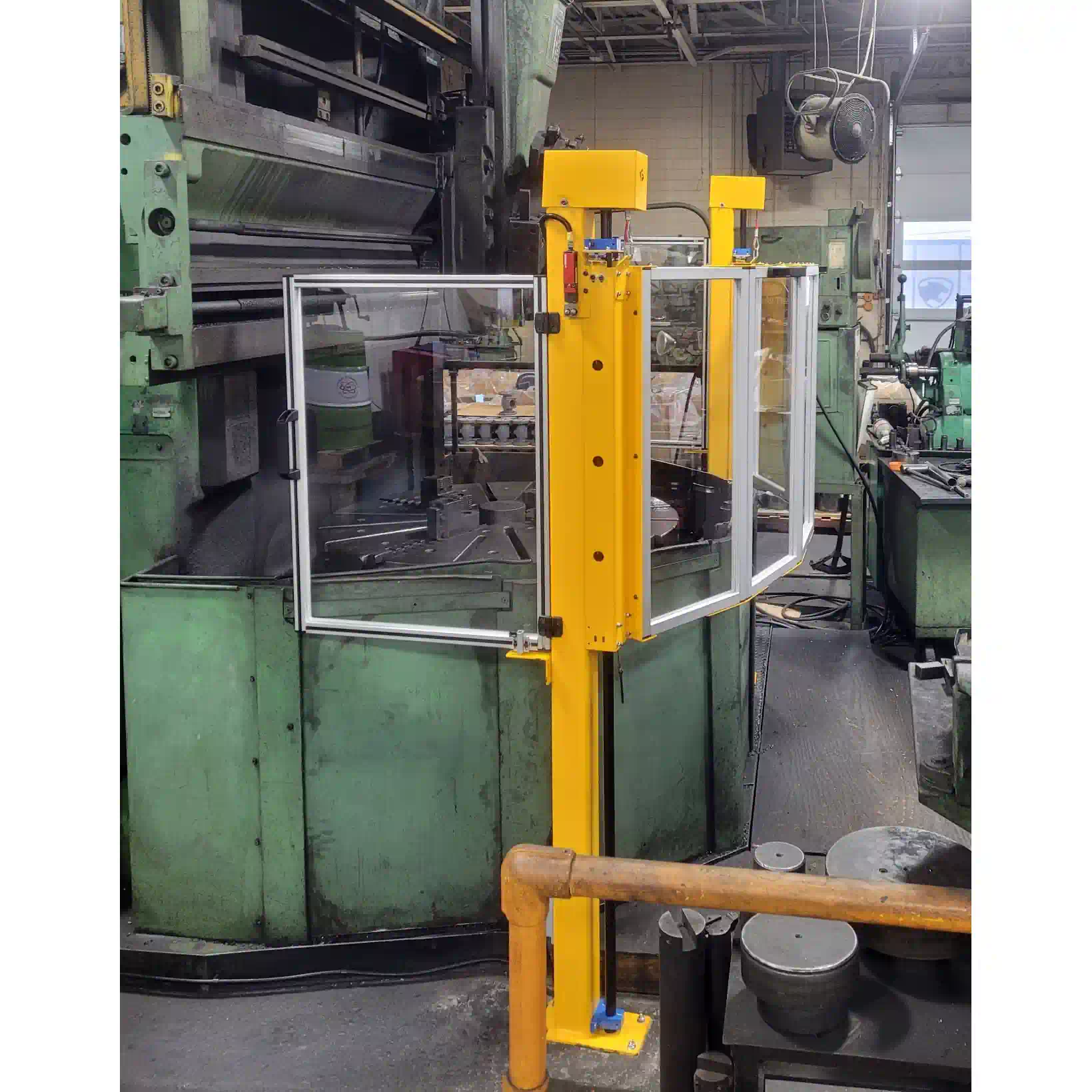

Optional auxiliary lateral screens
Counterweight system with PVC-coated steel cables

Screen Sizing Information

Don’t hesitate to get in touch with us for more information

P/N	Overall Screen Height	Features
FER-LRV-1	Standard: 24″ or custom	Single sliding screen
FER-LRV-2	Standard: 48″ or custom	Dual sliding screens

Additional information

Type:	Single Screen, Double Screen
Features	Single or double screen versions, Polycarbonate windows are modular and easily changeable, Coolant is contained inside the screen, The footprint and screen profile is fully customizable, Easy to modify and reconfigure directly on-site, Self-standing posts make it easy to assemble for installation, No maintenance required, Each screen slides up/down for easy chuck access and cleaning, The heavy-duty sliding track system allows for smooth screen movement, Solid ground anchor points for fastening to the floor, Includes safety interlock switches, Optional auxiliary lateral screens, Counterweight system with PVC coated steel cables
Manufacturer	Ferndale Safety
Brand	Ferndale Safety
Has interlock switch	No (No Interlock), Yes (With Interlock)
Product color	Ferndale Yellow, Gray
Product Features	Bolt-on, Polycarbonate, Replaceable screen or shield, Adjustable, Custom-made

Download User Manuals

Disclaimer: By purchasing Our Products, you agree not to use them for "hot work" (e.g., grinding, welding, soldering, cutting) due to fire risk. Misuse is forbidden, and following all safety guidelines is required. Non-compliance means you accept full responsibility for any resulting harm or damage. For your safety and the effectiveness of Our machine guarding, remain within the "Safe Work Zone" directly in front of the guarding. Standing to the side increases injury risk and breaches our usage policy. Adhering to this rule ensures your safety and the Products optimal performance. For detailed safety and operational guidelines, please see our Terms and Conditions. (click here)
