Name: Vertical Bandsaw Guard, With Interlock
Brand: Ferndale Safety
SKU: TR-6-1
Rating: 4.50 (2 reviews)

Vertical Bandsaw Guard, With Interlock

From: $280.00

A medium-sized shield that is useful for protection on band saws.

Shield Sizes:
SMALL: 4 3/4″ x 7 3/4″ (120mm x 200mm)
LARGE: 6 1/2″ x 7 3/4″ (170mm x 200mm)

Four screw holes accept 8-32 or 10-32 screws or bolts
The shield is operator-adjustable up to 4″ vertically
Safety interlock switch optional

Safety Switch

Electrically Interlocked

SKU: TR-6-1

Vertical Bandsaw Guard, With Interlock Switch

This vertical bandsaw guard covers 180 degrees and flips open around the mounting bracket, which can be turned to have mounting holes inside or outside. This is useful to prevent access to rotating components.

Includes a positive mode electric safety interlock switch
A polycarbonate shield is more resistant to impact than plexiglass.

These shields meet or exceed OSHA, ANSI, and CSA standards for machine safety guarding.

P/N	Interlock switch	Size
W1-TR-1-S	NO	SMALL: 4 3/4″ x 7 3/4″ (120mm x 200mm)
W1-TR-1-CM	YES	SMALL: 4 3/4″ x 7 3/4″ (120mm x 200mm)
W1-TR-6-S	NO	LARGE: 6 1/2″ x 7 3/4″ (170mm x 200mm)
W1-TR-6-CM	YES	LARGE: 6 1/2″ x 7 3/4″ (170mm x 200mm)

Additional information

Weight	N/A
Dimensions	N/A
Interlock Switch?	Without Interlock Switch, With Interlock Switch
Manufacturer	Ferndale Safety
Brand	Ferndale Safety
Has interlock switch	No (No Interlock), Yes (With Interlock)
Product color	Clear
Product Features	Bolt-on, Polycarbonate, Replaceable screen or shield, Adjustable
Size	Small (4-3/4″ x 7-3/4″), Large ( 6-1/2" x 7-3/4")

Installation Guide

W1-TR1, W1-TR6 Installation Guide EN

Custom Brackets

You may need to fabricate custom brackets to fit this guard to your specific machine. Here are examples of aluminum brackets our customer fabricated.

Need help? We're here to assist! We can help with installation, fabrication, and more! Find out how to contact us here.

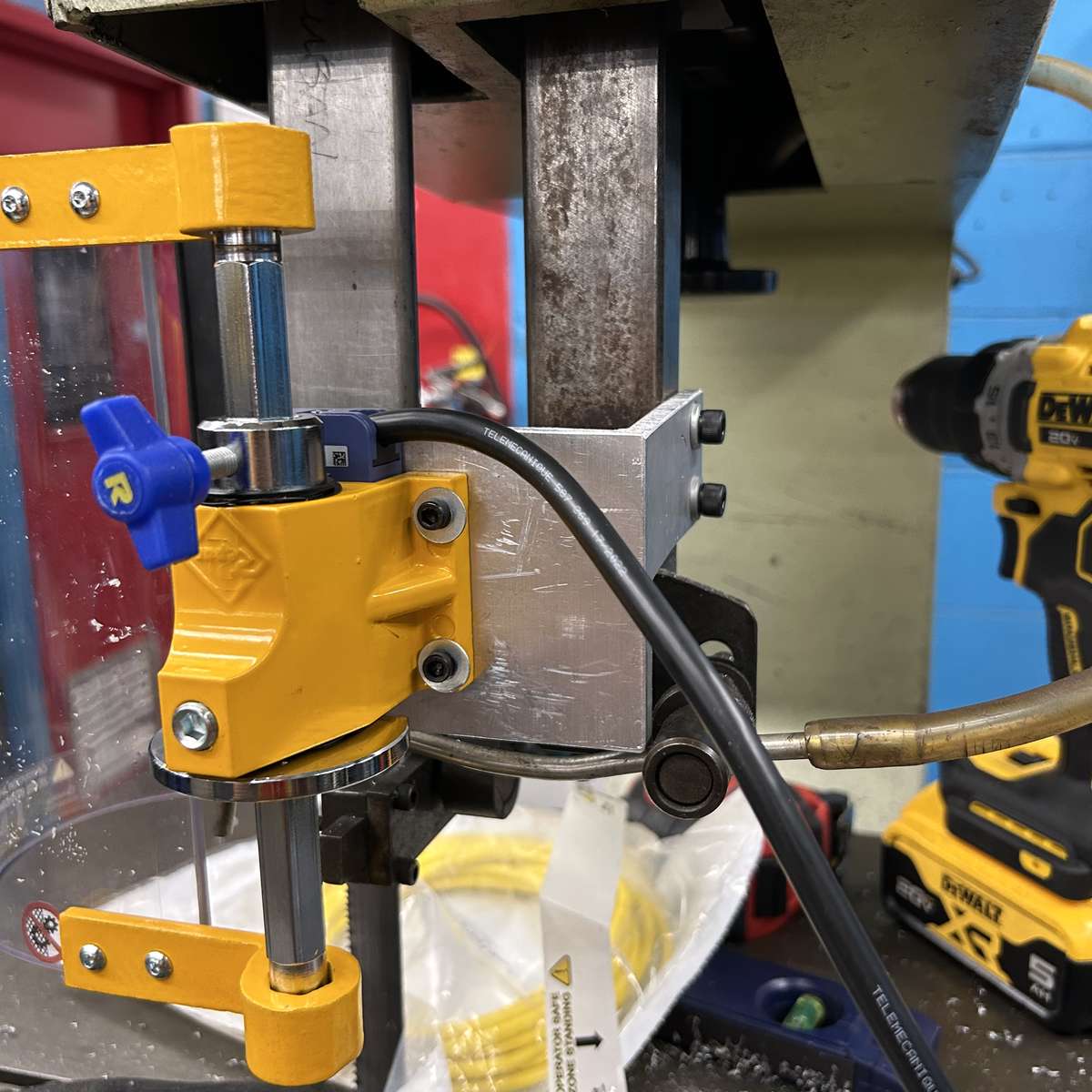

An example of a custom-fabricated mounting bracket used to mount a Ferndale Safety band saw safety guard.

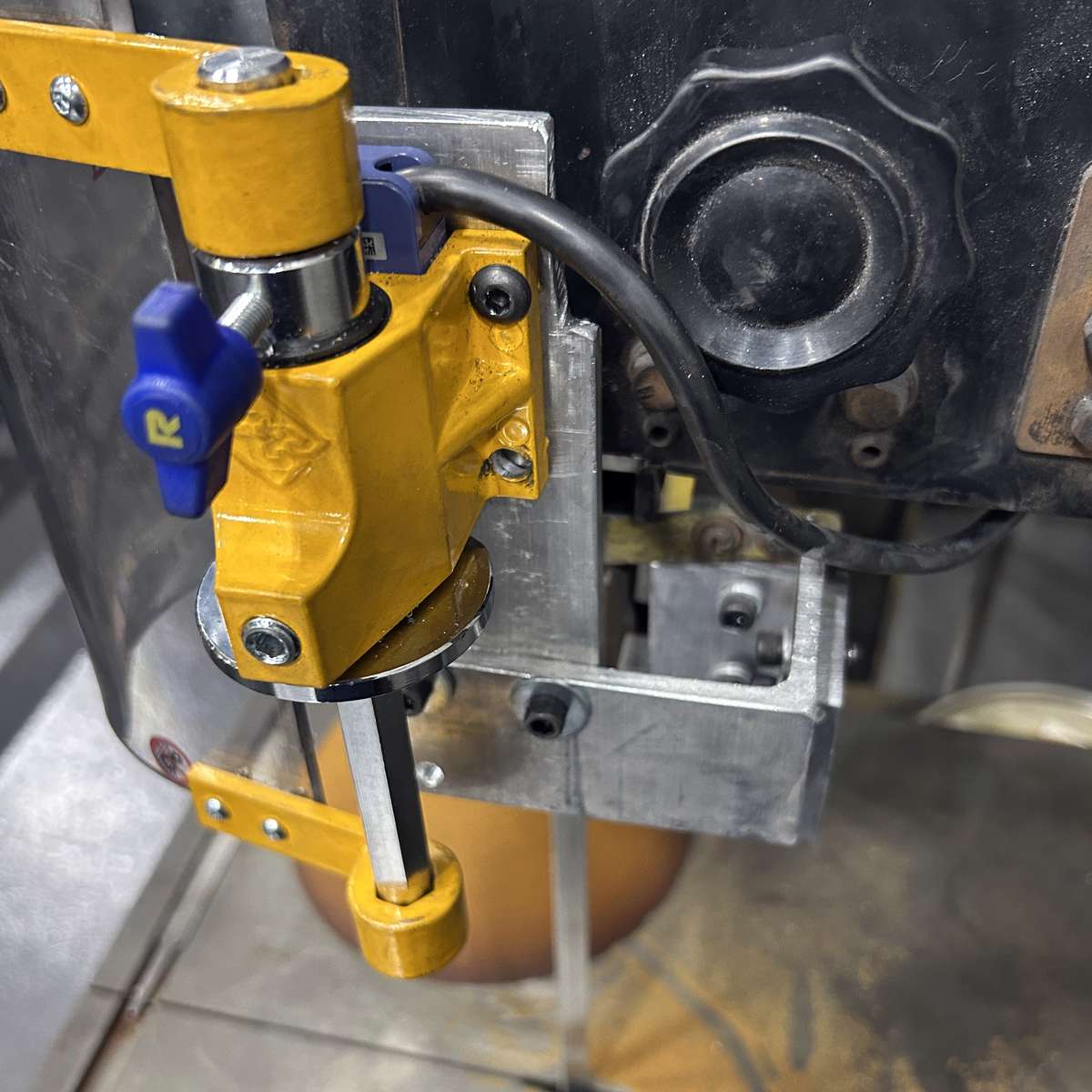

An example of a larger custom-fabricated mounting bracket used to mount a Ferndale Safety band saw safety guard.
