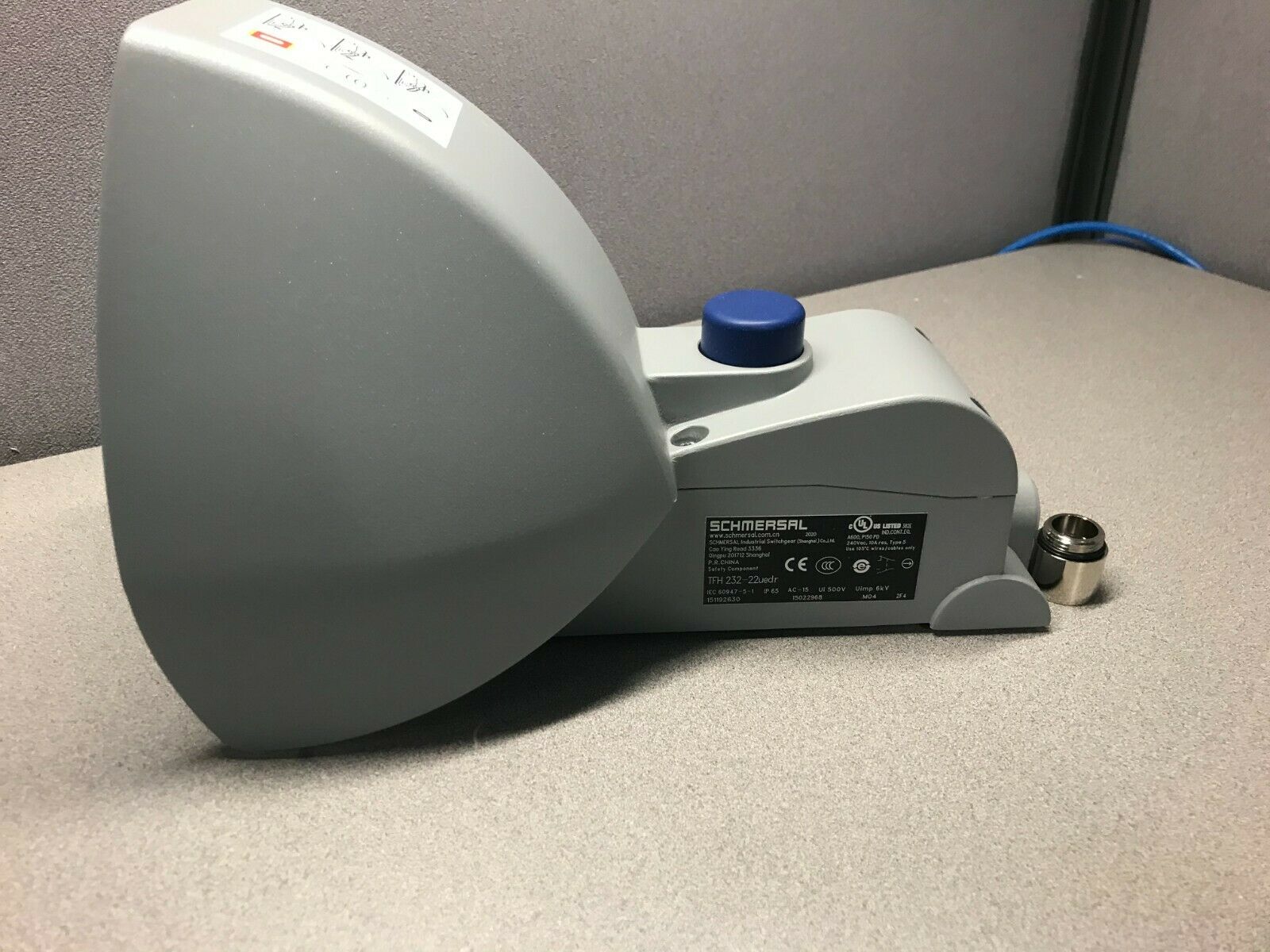

Foot-Operated Enabling Emergency Stop Switch

$1,019.40

Safety foot switch with an emergency stop feature to help prevent injuries.  It can be used to replace existing foot pedals or switches.

Coming Soon: Pre-Order Now!
This item is temporarily out of stock but don't worry - more is on the way!

SKU: PEDAL-3POS

Install this safety foot switch on machines where a machine operator might be subjected to dangers such as being caught or pulled inside its mechanism. These footswitches have three positions: OFF/ON/ESTOP. The middle position enables the switch, and the third position locks out the control and shuts down the machine. Once the third position is pressed, the footswitch is tripped and locked out. To reset the foot pedal, press a button on the top to bring the pedal back to regular operation.

This foot pedal does not replace a proper emergency stop button. If your machine already has one, click here to purchase one.

Help Prevent Injuries

Machine operators can use our foot-operated emergency stop switch on machinery such as metal and tube rollers. If an operator experiences a situation where their limbs have been caught in the machine, a first instinct is to push harder on the pedal to free themselves. In this situation, the pedal automatically stops the machine and goes into a lockout state until the reset button is pressed.

Safety Foot Switch Features

  • Protective shield with a wide opening allowing use with steel-toe boots.
  • cULus, CCC, EAC, CNCA certified
  • 2 NC / 2 NO Contacts
  • 1,000,000 Mechanical life operations
  • 4A @ 230V, 1A @ 24VDC

For more information, click this link: https://products.schmersal.com/en_US/tfh-232-22uedr-19866.html?type=product

Weight 4.5 lbs
Dimensions 12 × 7.25 × 7.75 in
Manufacturer

Schmersal

Brand

Schmersal

Product color

Gray
