Horizontal Band Saw Safety Guard

$1,427.00

The horizontal band saw safety guard from Ferndale Safety has two screens, allowing excellent visibility and material pass-through. It also works great for power hacksaws.

Important: This shield does not work with mitering head band saws.  These are band saws where the head can pivot to make angled cuts while keeping the material stationary.

  • It comes in a kit of two shields (front and back)
  • PVC curtains to allow material to pass through.
  • Includes safety interlock switches
Safety Switch
Electrically Interlocked

Coming Soon: Pre-Order Now!
This item is temporarily out of stock but don't worry - more is on the way!

More on the way! We have 8 units on the way with an estimated date of arrival of 07/16/2024.

Frequently Bought Together

Installation Kit for Safety Shields

SKU: PS-1-CM

Use this horizontal band saw safety guard to protect access to dangerous areas like the blade and shield against coolant, chips, and projections.

Safeguard Horizontal Band Saws

Note: This product does not work well with saws with rotating heads for angle cuts. This safety guard works best for making straight cuts on band saws.

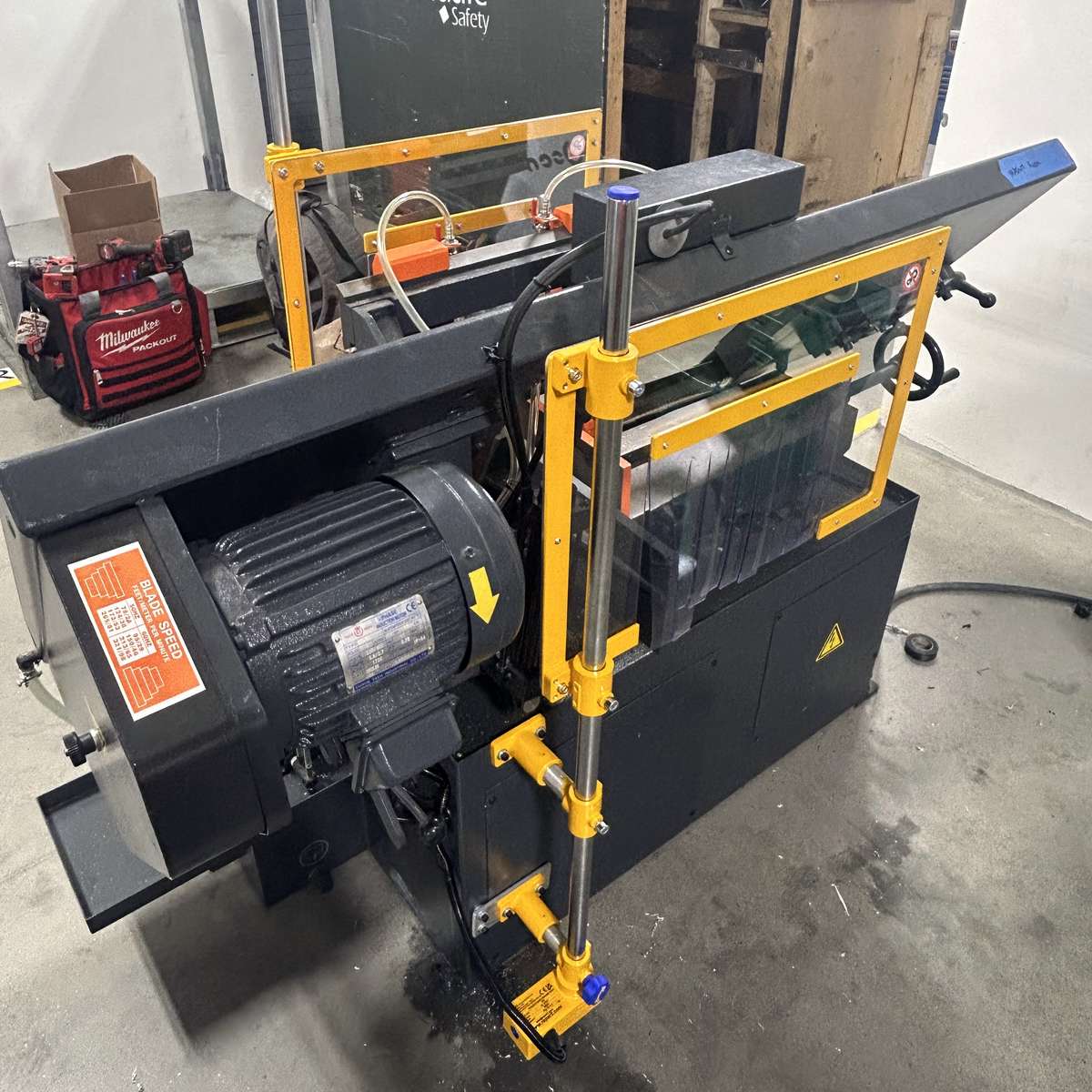

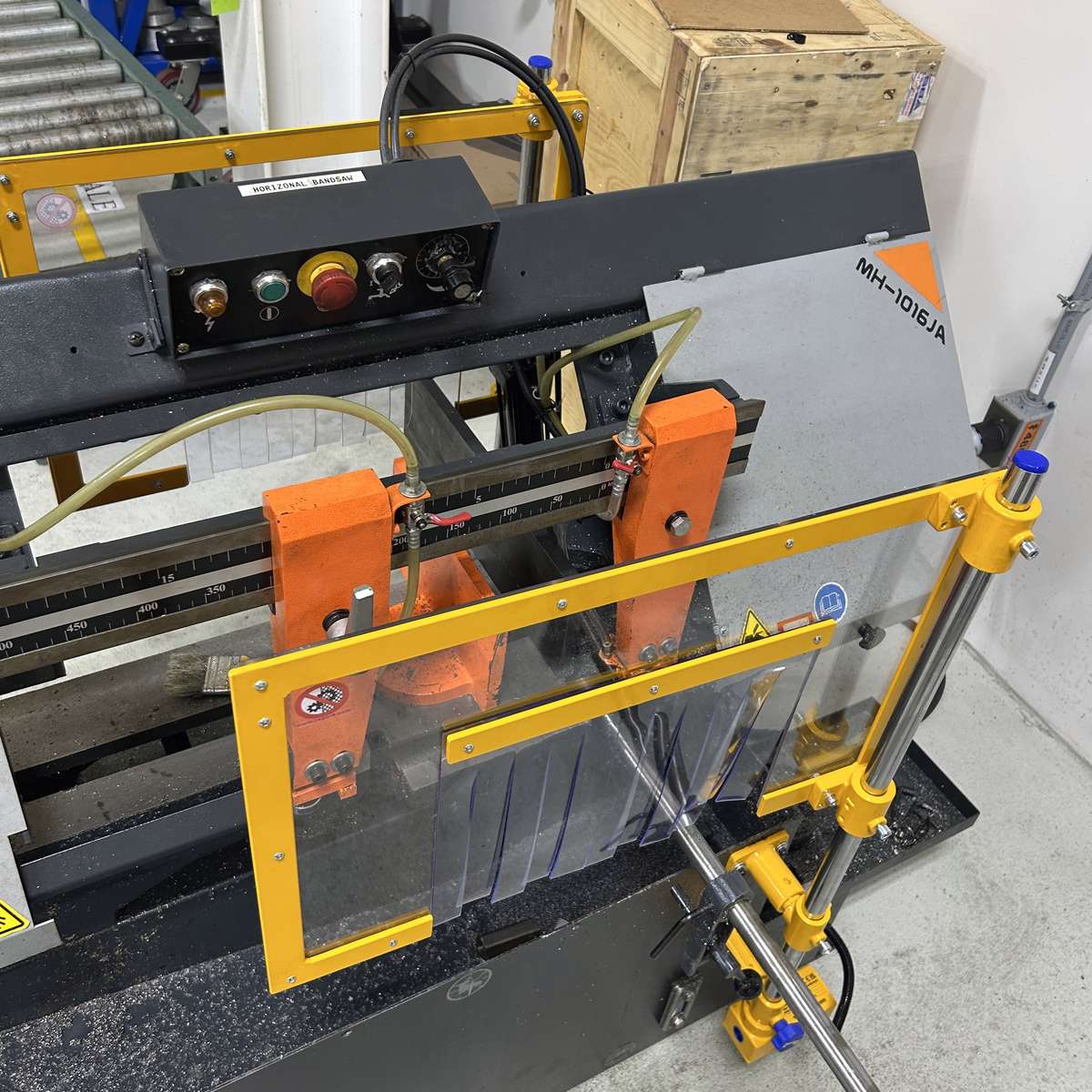

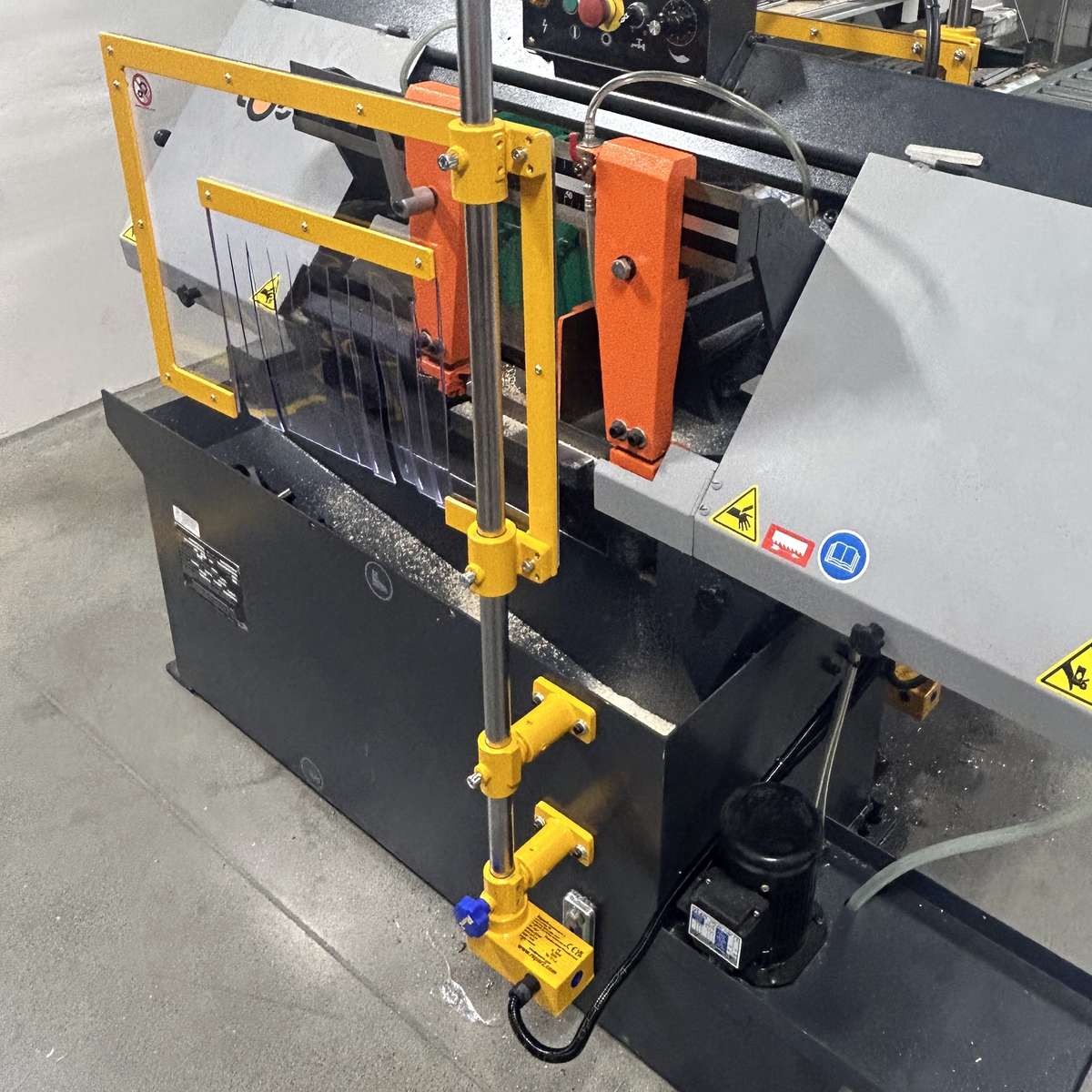

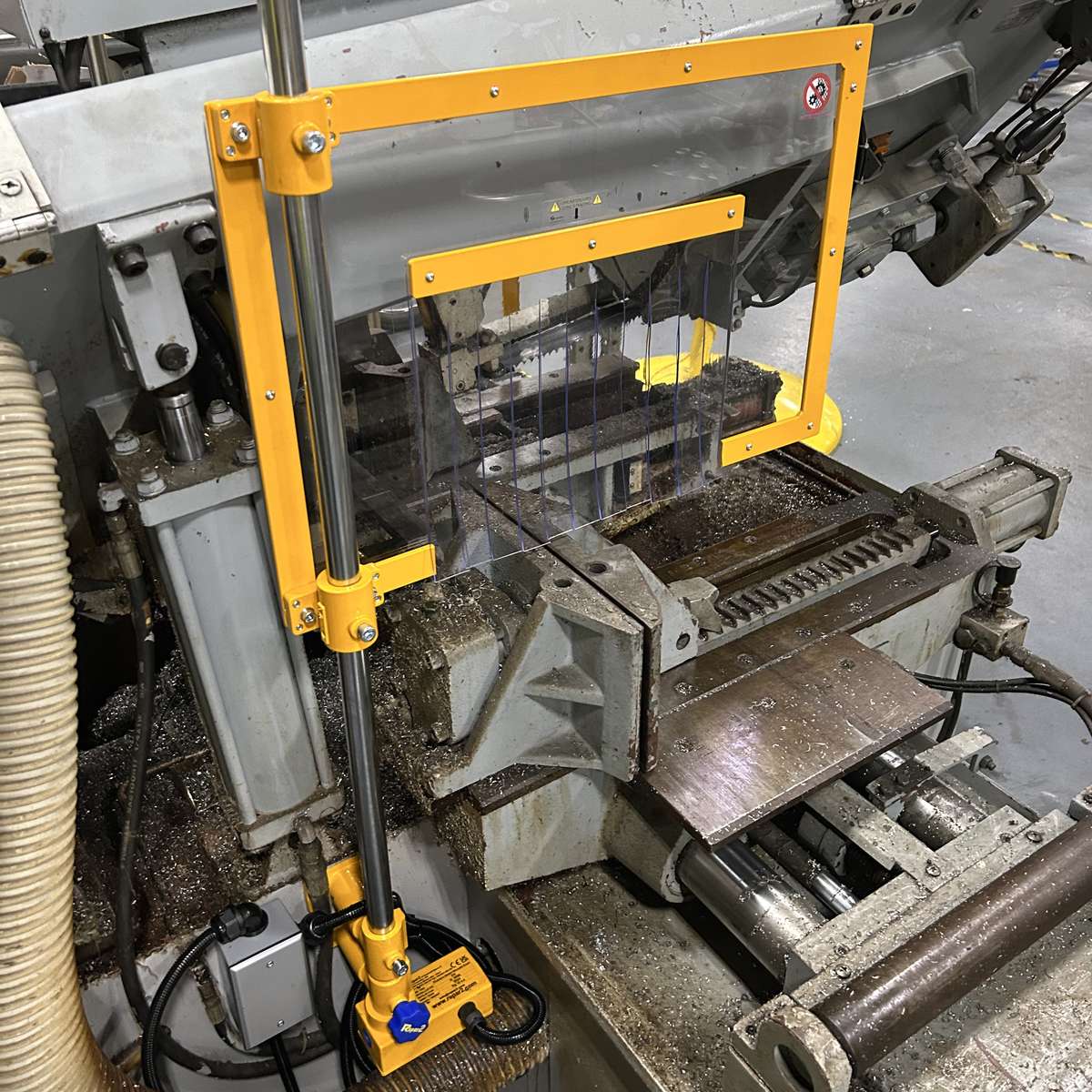

Putting a safety guard on a horizontal band saw is challenging, but we have designed a guard to protect the blade from accidental access. It comes in two see-through shields that swing out to allow access to change blades or the work area.

Product Features

The PS-1 guard for horizontal band saws consists of two transparent screens. It has built-in interlock switches that disable the system when one of the guards is opened. The shields can be opened outward.

Our standard size is 600mm (23.6”) wide x 400mm (15.75”) in height

The post height is: 1120mm (44”)

The screens can be custom-made for your needs.

  • The guard comes with both a back and front shield.
  • Shields are adjustable up/down.
  • Both shields have an interlock switch.
  • Transparent PVC curtains cut into strips allow the material to pass through easily.

Installation Precautions

This safety guard may be challenging to install on some horizontal band saws. Be prepared to have material on hand to fabricate brackets. Some band saws do not have a good base for attaching the posts. The electrical interlocks must connect to a motor starter. Click here if your machine lacks motor starter/restart protection.

Additional information

Weight 39 lbs
Dimensions 46 × 13 × 20 in
Brand

Ferndale Safety

Manufacturer

Ferndale Safety

Has interlock switch

Yes (With Interlock)

Product color

Clear, Ferndale Yellow

Product Features

Bolt-on, Polycarbonate, Adjustable

Installation Manual

PS-1 Installation Manual

Disclaimer: By purchasing Our Products, you agree not to use them for "hot work" (e.g., grinding, welding, soldering, cutting) due to fire risk. Misuse is forbidden, and following all safety guidelines is required. Non-compliance means you accept full responsibility for any resulting harm or damage. For your safety and the effectiveness of Our machine guarding, remain within the "Safe Work Zone" directly in front of the guarding. Standing to the side increases injury risk and breaches our usage policy. Adhering to this rule ensures your safety and the Products optimal performance. For detailed safety and operational guidelines, please see our Terms and Conditions. (click here)
