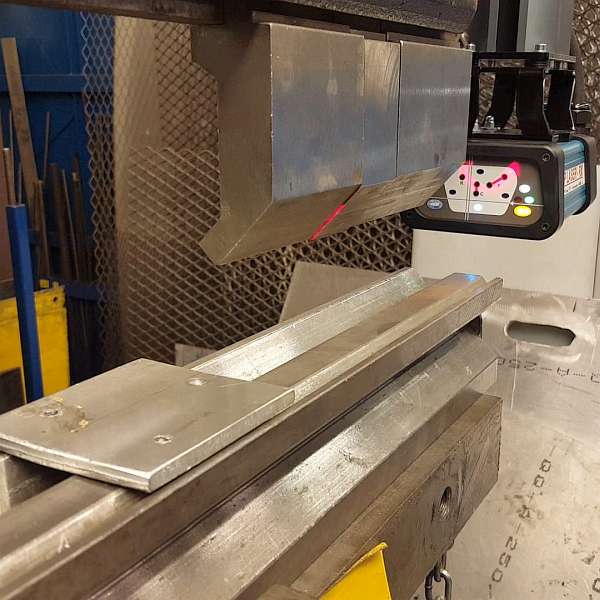

Laser System for Press Brakes

We have an exclusive DSP Laser system for press brakes.
This system can improve safety while using the ram at full speed.

There’s a selectable switch to perform either a regular bend, a bend with sides or a full box operation.

Contact us for details!

Product features

The idea behind the system used for this device is the one to fit out the moving part of the press brake with a protection zone. This is a volume of suitable and special dimensions generated by the laser and placed under the upper tool vertex at a higher distance than that the machine requires to stop. So the protection zone, that moves together with the mobile part because integral with it, advances the race of this one towards the fixed part. An obstacle (for example the operator fingers) when entering the protection zone, is detected immediately causing consequently the interruption of the mobile part motion. As the detection takes place at a higher distance than that the machine requires to stop, the crushing possibility between the two tools may be excluded.
