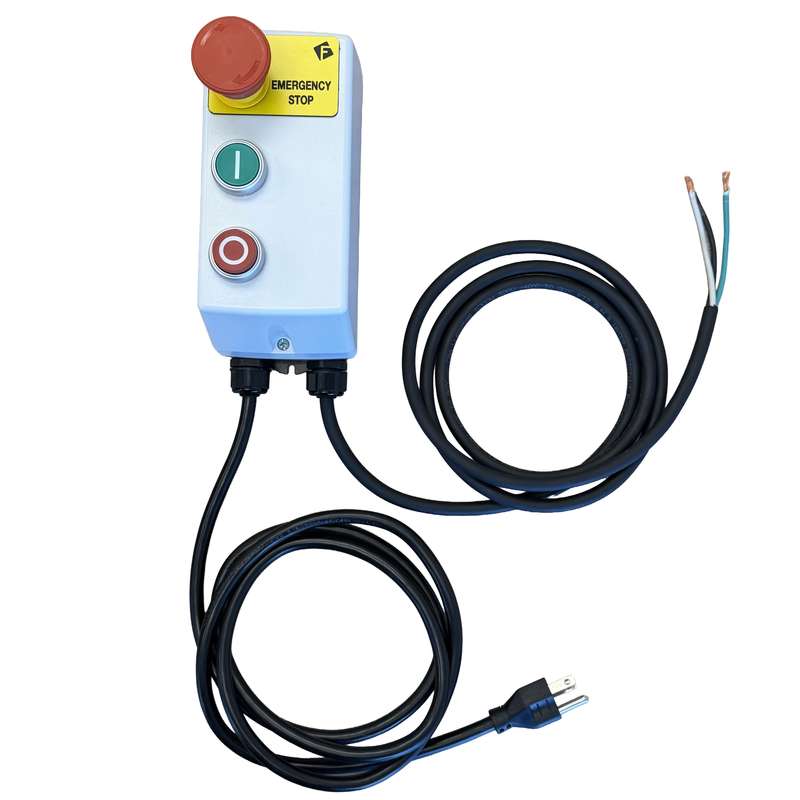

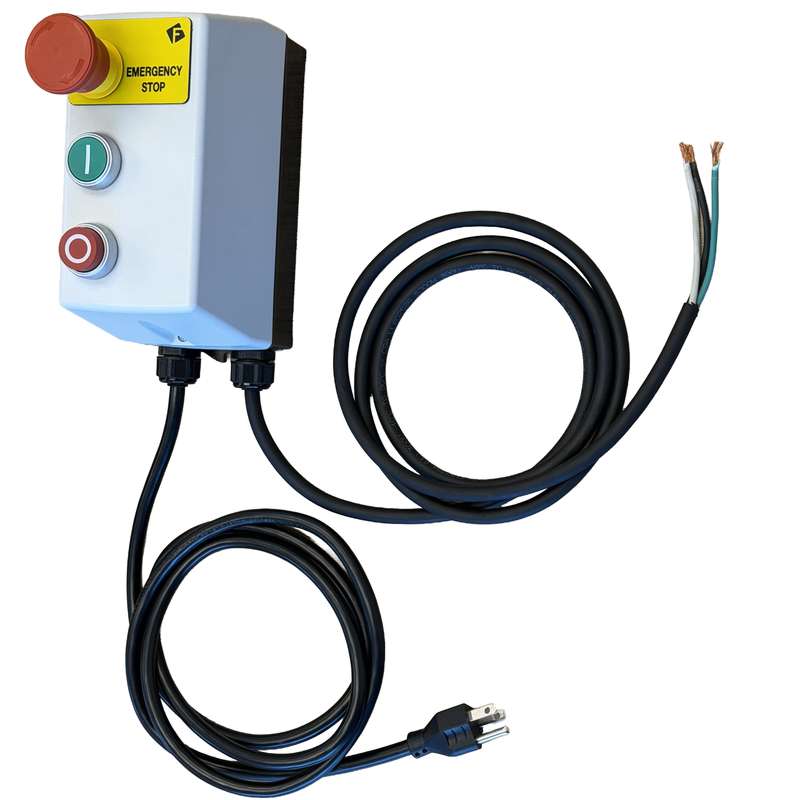

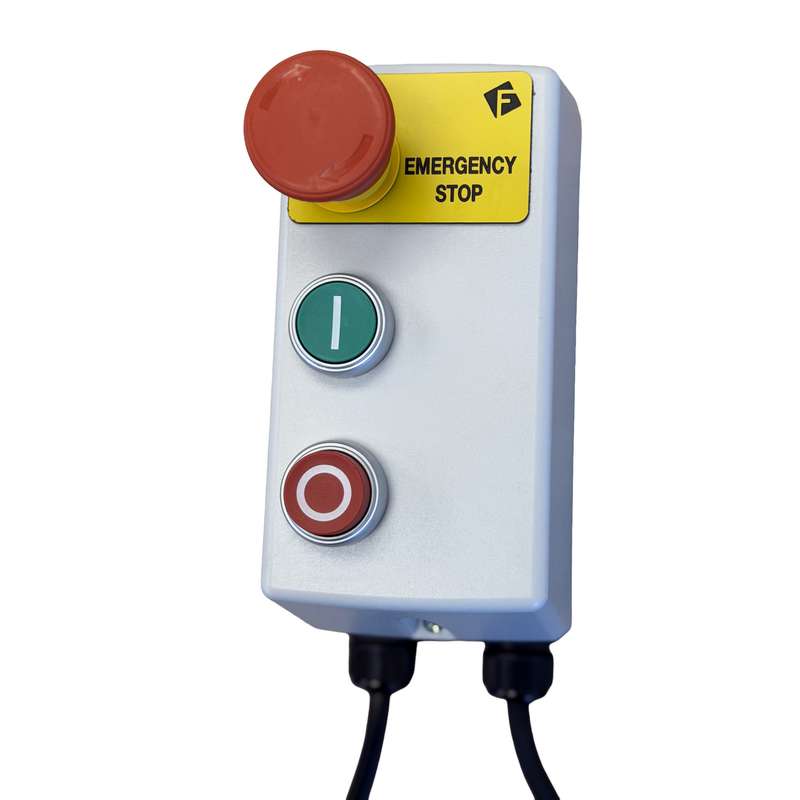

Anti-Restart Device, 14 AWG Cable Size, 15 Amp, 120-Volts, With E-Stop Button

$604.75

Connect this product to your machine to add anti-restart protection and an emergency stop button, all in one compact package. Anti-restart protection is a safety feature that prevents machinery and equipment from restarting after a power interruption.

  • Works with 120-volt motors up to 1HP
  • Pre-wired 6-foot cord, NEMA 5-15P Plug
  • Pre-wired 5-foot output pigtail cord
  • Internal 15-amp fuse
  • Start, stop, & E-stop buttons
SKU: STARTER1-CAB

Want to learn more about anti-restart devices? Click here!

Specifications

  • Voltage Input: 120V 60Hz
  • Maximum output current: 15A
  • Max: 1HP (Single-phase motor)
  • Internal fuse: 15A, Slo-blo, class CC
  • Line Cord: 6-foot, 14AWG with a NEMA 5-15P Plug
  • Load Cord: 5-foot, 14AWG pigtail end

Compliance: CSA C22.2 n° 14, IEC/EN 60947-1, IEC/EN 60947-4-1, UL508
Certification: cULus

If this anti-restart device is used as a motor starter, the customer must supply appropriate motor overload protection.

Additional information

Weight 3 lbs

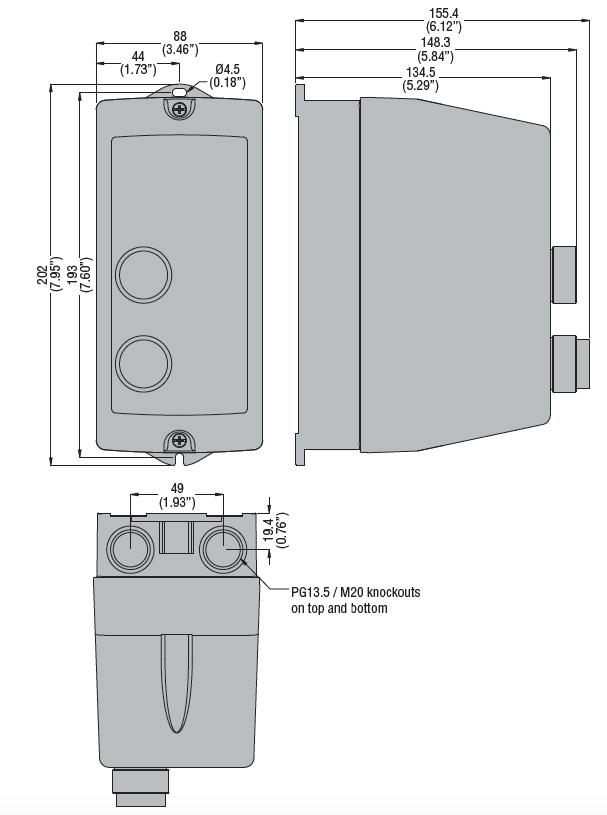

Dimensions 8 × 4 × 7 in
Brand

Lovato Electric

Has interlock switch

No (No Interlock)

Manufacturer

Lovato Electric

Product color

Black, White

Product Features

Bolt-on

Disclaimer: By purchasing Our Products, you agree not to use them for "hot work" (e.g., grinding, welding, soldering, cutting) due to fire risk. Misuse is forbidden, and following all safety guidelines is required. Non-compliance means you accept full responsibility for any resulting harm or damage. For your safety and the effectiveness of Our machine guarding, remain within the "Safe Work Zone" directly in front of the guarding. Standing to the side increases injury risk and breaches our usage policy. Adhering to this rule ensures your safety and the Products optimal performance. For detailed safety and operational guidelines, please see our Terms and Conditions. (click here)
